UrbanStar

UrbanStar, Urban road & street light, 10 W, 1000 lm, 3000 K, CRI80, Analog, Distribution extra wide 10, Safety class I, IP66, SRG6-6

BDS100 LED12/830 I DX10 DGR CLO-LS-8 50%
  • Circularity Icon
  • Signify Service Tag logo

Product Description

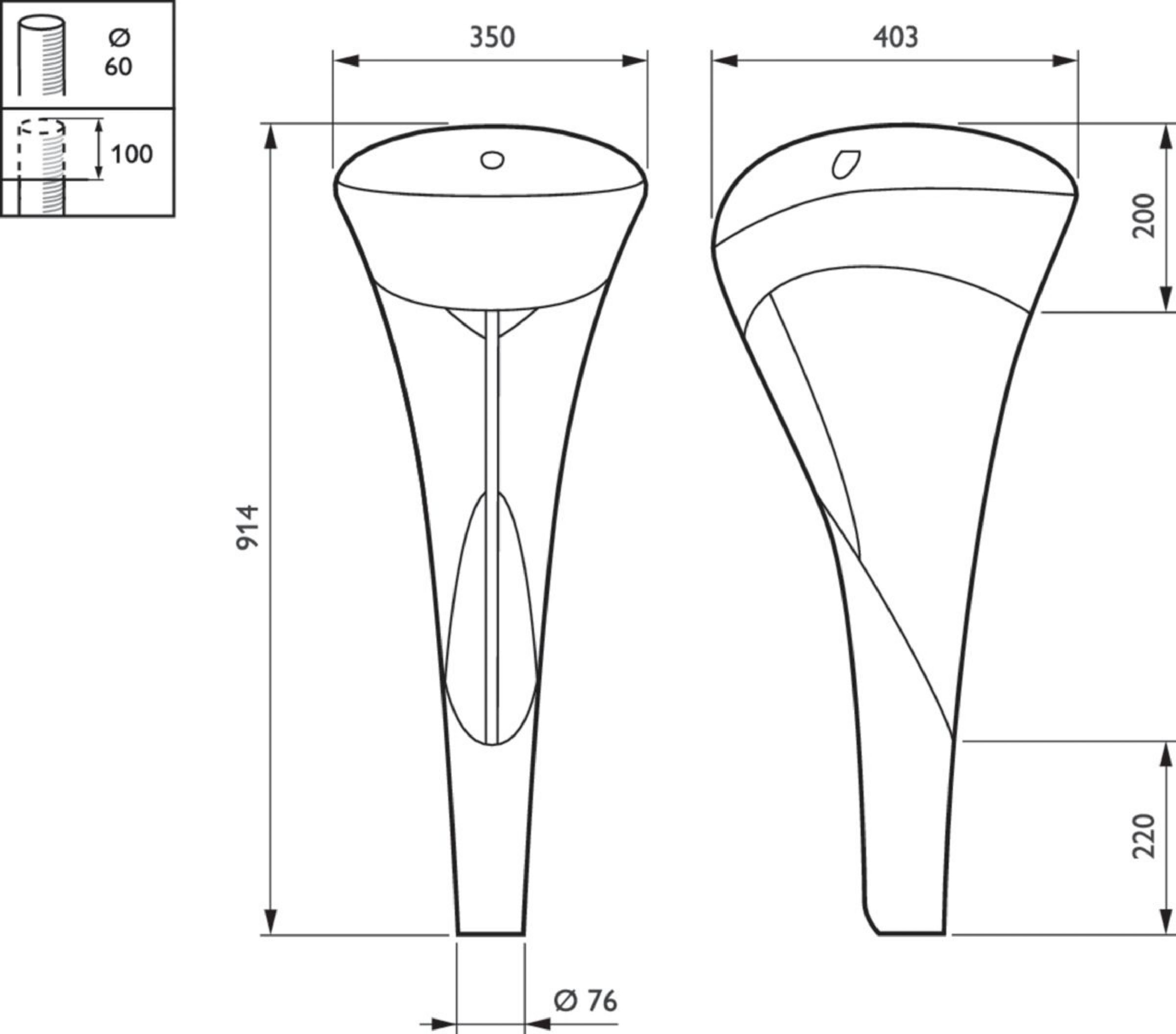

Urban road & street light, Polycarbonate, Gray, Pole-mounting bracket diameter 76 mm, Power supply unit regulating external, Constant light output and LumiStep dimming 8 hours, 1000 lm, 10 W, 100 lm/W, 3000 K, (0.380, 0.390) SDCM <5, CRI80, Distribution extra wide 10, IP66 | Dust penetration-protected, jet-proof, IK06 | 1 J, Safety class I, Surge protection level until 6 kV differential mode and 6 kV common mode, Plug-in connector 2-pole Wieland/Adels compatible

Order code: 912300023989
Full order code: 871869945041000

Specifications

  • Lamp family code
    LED12 [LED Module 1200 lm]
  • Light source replaceable
    Yes
  • Number of gear units
    1 unit
  • Driver included
    Yes
  • Light source engine type
    LED
  • Service tag
    Yes
  • Lighting Technology
    LED
  • Value ladder
    Performance
  • Serviceability class
    Class A, luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge protection device, optics, front cover and mechanical parts
  • Warranty period
    5 years
  • Sustainability rating
    Lighting for circularity
