Urban road & street light, Polycarbonate, Opal, Post-top for diameter 60 mm, Power supply unit with DynaDimmer and constant light output (integrated), Constant light output and DynaDimmer fixed presets version 12, 1579.5 lm, 15.8 W, 100 lm/W, 3000 K, SDCM <5, CRI80, Metronomis distribution medium, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class II, Surge protection level until 6 kV differential mode and 10 kV common mode, Cable 10 m without plug, Flying leads/wires
Urban road & street light, Polycarbonate, Opal, Post-top for diameter 60 mm, Power supply unit with DynaDimmer and constant light output (integrated), Constant light output and DynaDimmer fixed presets version 12, 2349 lm, 23.5 W, 100 lm/W, 3000 K, SDCM <5, CRI80, Metronomis distribution medium, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class II, Surge protection level until 6 kV differential mode and 10 kV common mode, Cable 10 m without plug, Flying leads/wires
Urban road & street light, Polycarbonate, Opal, Post-top for diameter 60 mm, Power supply unit with DALI and SystemReady interface and constant light output (integrated), Constant light output and DynaDimmer fixed presets version 12, 3120 lm, 32 W, 98 lm/W, 3000 K, SDCM <5, CRI80, Metronomis distribution medium, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class II, Surge protection level until 6 kV differential mode and 8 kV common mode, Cable 10 m without plug, Flying leads/wires
Urban road & street light, Polycarbonate, Opal, Post-top for diameter 60 mm, Power supply unit with DynaDimmer and constant light output (integrated), Constant light output and DynaDimmer fixed presets version 12, 2349 lm, 23.5 W, 100 lm/W, 3000 K, SDCM <5, CRI80, Metronomis distribution medium, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class II, Surge protection level until 6 kV differential mode and 10 kV common mode, Cable 10 m without plug, Flying leads/wires
Urban road & street light, Polycarbonate, Opal, Post-top for diameter 60 mm, Power supply unit with DALI and SystemReady interface and constant light output (integrated), Constant light output and DynaDimmer fixed presets version 12, 3120 lm, 32 W, 98 lm/W, 3000 K, SDCM <5, CRI80, Metronomis distribution medium, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class II, Surge protection level until 6 kV differential mode and 8 kV common mode, Cable 10 m without plug, Flying leads/wires

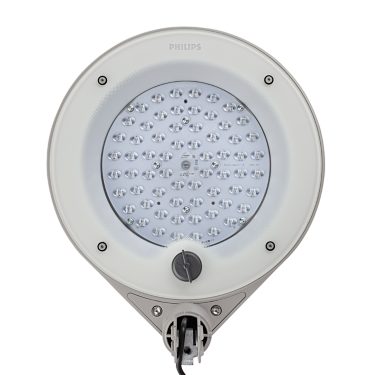

UrbanGlow LED Gen3 is an elegant street luminaire with a clean design and tight lines. Created by Copenhagen-based Holscher Design, it fits into older urban areas as well as new residential neighborhoods, walkways, and parks. UrbanGlow LED Gen3 stands out during the day and after dark thanks to its discreet glow top, which emphasizes the design of the luminaire and provides visual lighting and security. For this third generation, we have refreshed the design with a low top and a slimmer design. The luminaire also incorporates the round Ledgine to ensure the highest efficiency and the best possible light distribution for all types of roads and paths. It also comes with the option of a satin diffuser that increases visual comfort and reduces glare. UrbanGlow LED Gen3 is available in a selection of color temperatures. The glow top is also designed to integrate our dynamic RGBW connected uplight solution for city branding and communication. Best of all, it is now available with one or two Zhaga-D4i SR (System Ready) sockets. Choose this option and UrbanGlow LED Gen3 is ready to pair with control and lighting software applications such as Interact. In addition, every UrbanGlow LED Gen3 BPS368 is uniquely identifiable, thanks to the Signify Service tag app. By simply scanning a QR code, placed inside the door of the mast or directly on the luminaire, you can instantly access the configuration of the luminaire. This makes maintenance and programing operations faster and easier, and enables you to create a digital library of lighting assets and spare parts.
Benefits
Stylish luminaire with a discreet, slim luminous top in a modern, clean design
A beautiful design with high technical lighting performance and excellent lighting comfort options

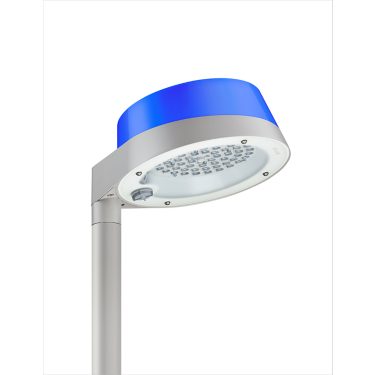

City branding with static and dynamic uplight options in the color of your choice

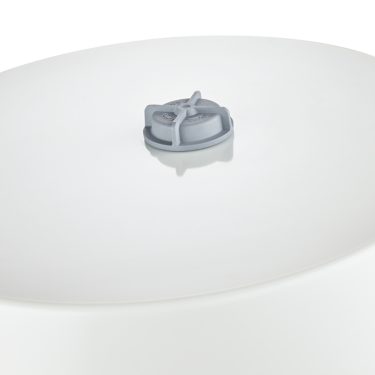

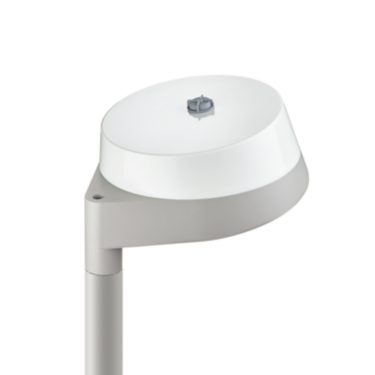

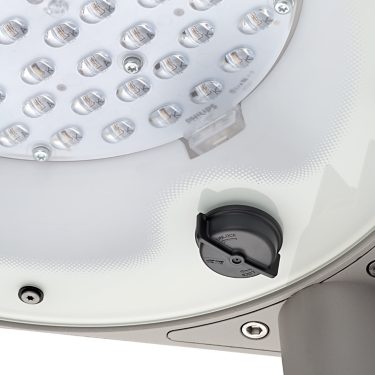

Future-ready luminaire with the Zhaga-D4i SR sockets to connect with controls such as Interact and sensors
Features

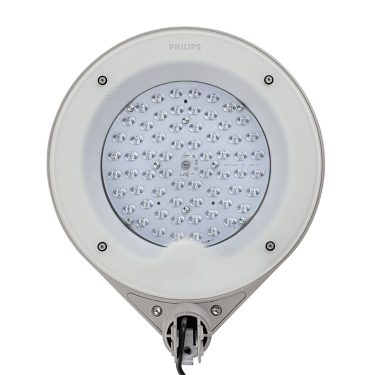

Pleasant design with a round LED platform that follows the shape of the luminaire
Minimal glare
Choice of color temperatures and color rendering for different ambiances: 2200K, 2700K, 3000K or 4000K
Efficacy up to 137 lm/W
Static and dynamic uplight (glowing effect) options
5-year standard warranty (option to extend up to 10 years)
Applications

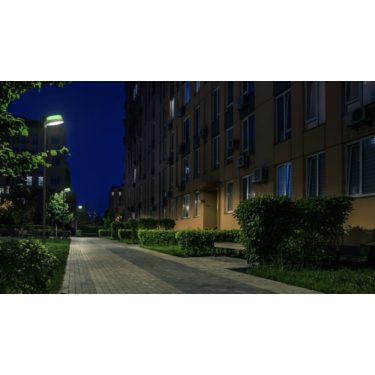

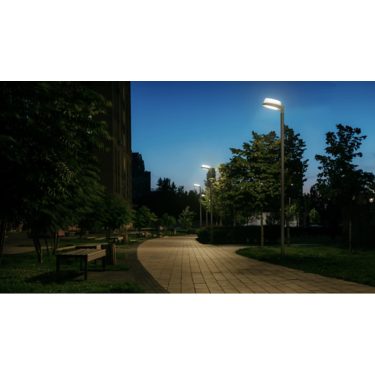

Smaller residential roads, Car parks, Pedestrian places, cycle paths and parks
Neutral White 4000K,Warm White 3000K,Warm White 2700K,Warm White 2200K
Luminaire efficacy
Up to 130lm/W, depending on configuration
Color Rendering index - CRI
70, 80
Dimming
PSU: Non-dimmable power supply unitPSR: Dimmable driver with LineSwitchPSD: Dimmable Power supply unit with DALI interface (integrated)PSA: Dimmable driver with AmpDim integratedPSDD: Dimmable driver Dynadim integratedPSD-SR: Power supply unit with DALI and SystemReady interfacePSM: Power supply unit with Coded Mains integrated
Constant Light Output (CLO)
CLO
Performance ambient temperature Tq
-40 to +25 °C
Ingress protection
IP66
Serviceability class

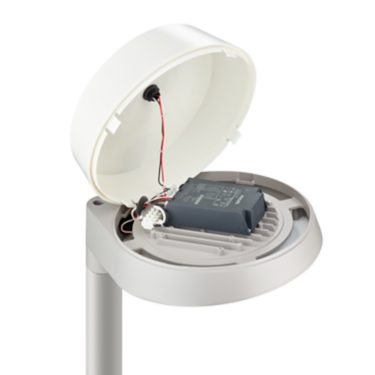

Class A: Driver, LED board, optic, cover is replaceable on-site
