Fortimo LED SLM Gen 8 - Ultra High Efficiency

A true 200lm/W chip-on-board that makes sense!

Popular downloads

Family-Photographs-Fortimo LED SLM Gen 8 - Ultra High Efficiency ZIP

View all downloads

Products

Product
Fortimo SLM C 940 1319 L23 2828 G8 UHE 929003873580	4240	4000	202

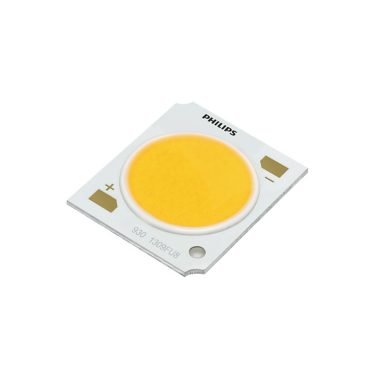

Fortimo SLM C 930 1309 L15 2024 G8 UHE 929003872780	2035	3000	194
Fortimo SLM C 935 PW 1319 L23 2828 G8UHE 929003873780	4090	3500	195

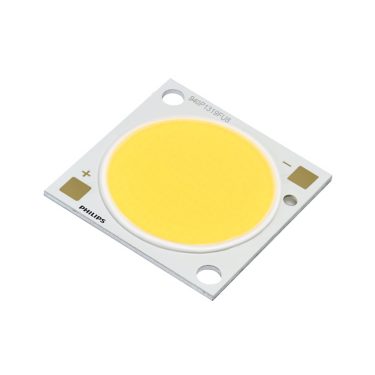

Fortimo SLM C 940 PW 1319 L23 2828 G8UHE 929003873880	4130	4000	197

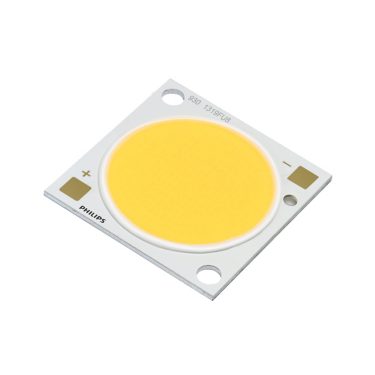

Fortimo SLM C 930 1319 L23 2828 G8 UHE 929003873380	4070	3000	194

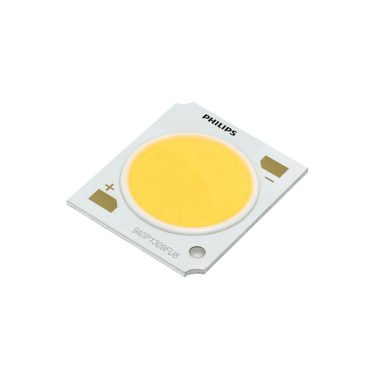

Fortimo SLM C 940 PW 1309 L15 2024 G8UHE 929003873280	2065	4000	197

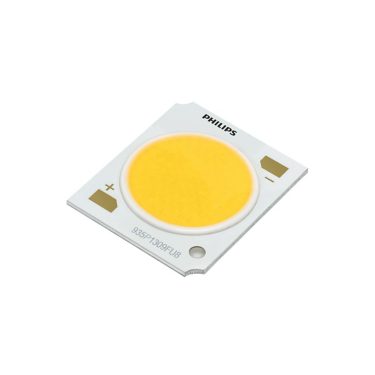

Fortimo SLM C 935 PW 1309 L15 2024 G8UHE 929003873180	2045	3500	195
Fortimo SLM C 930 PW 1309 L15 2024 G8UHE 929003873080	2025	3000	193

12 items

of 2

Products per page

Description

To further build on the success of Fortimo SLM G7 HE and HE+ which is well recognized by the market, PHILIPS Fortimo SLM G8 UHE offers first-of-its-kind 200lm/W at 2000lm from LES 15mm and 4000lm from LES 23mm, at tc temperature of 50°C, providing a solution which meets the actual application requirements without compromising on reliability, quality of light and efficiency.

Benefits

Improved and Higher Efficiency with 200lm/w in real application conditions
Consistent focus on enhanced Efficiency, Quality of Light and Reliability
Enabling heatsink or luminaire miniaturization
Easy Design in by ensuring mechanical and optical compatibility with existing holders and optics
Higher system efficiency together with existing PHILIPS indoor point drivers
5 year system warranty
