Phased-out products

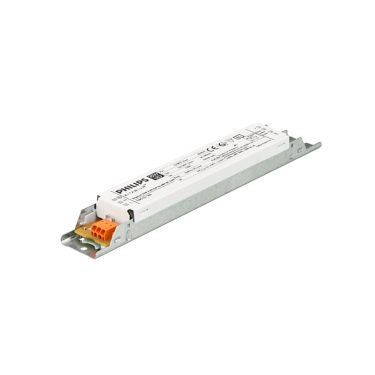

Xitanium 35W 0.3/0.35A 50-100V SC 230V

Order code: 929002130006

Full order code: 871869973629300

Popular downloads

Product-Photographs-929002130006_EU ZIP

View all downloads

Nominal lifetime
100,000 hour(s)
Lighting Technology
LED

Line Frequency
50 to 60 Hz
Input Frequency
50 to 60 Hz
Mains voltage operation (DC)
168-275 V
Total Harmonic Distortion IEC (Max)
13.199999809265137 %
Power Consumption
38 W
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
91.5 %
Output Current (Max)
350 mA
Output Current Tolerance (Max)
7 %
Mains voltage performance (DC)
186-250 V
Power Factor (Fraction)
0.95
Open Circuit Voltage (DC) (Max)
150 V
Protection Level Up (L-N) at 5 kA (Max)
1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
Input current (AC)
0.18 mA
Input current (DC)
0.2
Inrush Current Peak (Max)
15 A
Inrush Current Peak (Nom)
15 A
Output Power (Max)
35 W
Output Power (Nom)
35 W
Default output current
300 mA
Inrush Current Width to 50% of Peak
215 µs
Power Factor 100% Load (Max)
0.95
Energy Metering
No
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
False
Output Power (Min)
15 W
Output Current (Min)
300 mA
Output Voltage (Max)
100 V
Output Voltage (Min)
50 V
Number of Products on MCB (16A Type B) (Max)
42
Number of Products on MCB (16A Type-C) (Max)
42 piece/unit
Protection class IEC
Safety class I
