Phased-out products

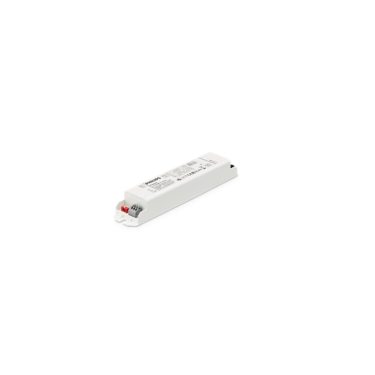

Xitanium 40W 0.3/0.35A 115V 230V

Order code: 929001487706

Full order code: 871869965786400

Popular downloads

Product-Photographs-929001487706_EU ZIP

View all downloads

Nominal lifetime
50,000 hour(s)
Lighting Technology
LED

Line Frequency
50 to 60 Hz
Input Frequency
50 to 60 Hz
Total Harmonic Distortion IEC (Max)
15 %
Power Consumption
45 W
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
85.1 %
Output Current (Max)
350 mA
Output Current Tolerance (Max)
5 %
Power Factor (Fraction)
0.9
Open Circuit Voltage (DC) (Max)
120 V
Protection Level Up (L-N) at 5 kA (Max)
1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
Input current (AC)
0.22 mA
Input current (DC)
0
Inrush Current Peak (Max)
17 A
Inrush Current Peak (Nom)
17 A
Output Power (Max)
40 W
Output Power (Nom)
40 W
Default output current
350 mA
Inrush Current Width to 50% of Peak
270 µs
Power Factor 100% Load (Max)
0.9
Energy Metering
No
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
False
Output Power (Min)
21 W
Output Current (Min)
300 mA
Output Voltage (Max)
115 V
Output Voltage (Min)
70 V
Number of Products on MCB (16A Type B) (Max)
30
Number of Products on MCB (16A Type-C) (Max)
30 piece/unit
Protection class IEC
Safety class I
