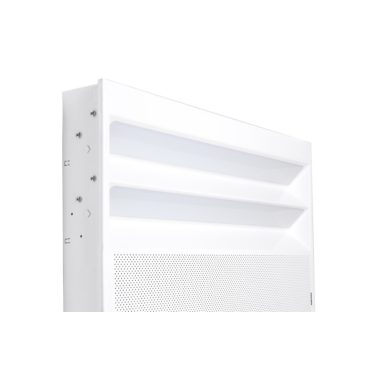

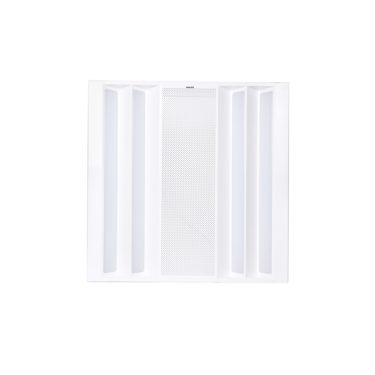

WingLine Troffer

Performance combined with comfort and possibilities for energy saving and beyond

Popular downloads

View all downloads

Where to buy

Products

Product				Compare
RC480B LED25S/857 W60L60 IAO WH 919515813650	100	2500	5700	Product leaflet PDF Where to buy
RC480B LED25S/840 W60L60 IAO WH 919515813651	100	2500	4000	Product leaflet PDF Where to buy
RC480B LED30S/840 W60L60 IAO WH 919515813654	95	3000	4000	Product leaflet PDF Where to buy
RC480B LED25S/865 W60L60 IAO WH 919515813649	100	2500	6500	Product leaflet PDF Where to buy
RC480B LED30S/865 W60L60 IAO WH 919515813652	95	3000	6500	Product leaflet PDF Where to buy
RC480B LED30S/857 W60L60 PSU WH 919515813599	95	3000	5700	Product leaflet PDF IES files IES Where to buy
RC480B LED30S/865 W60L60 PSU WH 919515813598	95	3000	6500	Product leaflet PDF IES files IES Where to buy
RC480B LED25S/865 W60L60 PSU WH 919515813595	100	2500	6500	Product leaflet PDF IES files IES Where to buy

12 items

of 2

Products per page

Description

WingLine is a distinguished troffer with a unique and sharp design defined by bold origami illuminated bands. This distinguished design makes the product blend in the space while maintaining light comfort and efficiency thus enhancing the overall appeal of the workplace. The unique light distribution pattern which enables higher spacing between the luminaires coupled with excellent glare control and high efficacy also contribute to the achievement of LEED and WELL certifications which most of the modern workspace developers or businesses aspire for.

Benefits

Unique & sharp design defined by bold origami illuminated bands enhance appeal for workplace
Maximize visual comfort with uniform light distribution
Higher spacing between luminaires
Multiple choices for different interior applications
Smart lighting system compatibility
Help Organization to earn points on WELL V2.0 & LEED V4.0

Features

Lumen Output: 2500/3000 lm
UGR =19 & Compliance to EN-12464
Available in 4000/5700/6500K CCT and 2500/3000lm
Flicker Free Application with Ripple < 5%
Over Voltage Cut-off in Driver
Lifeclass of 50K hrs. @ 45⁰C ambient
THD< 10% (PSU version only), PF>0.95, 4KV Surge Protection and EMI/EMC Compliant
Class B serviceability
Interact ready luminaire: Available in IA/IAO versions
