TrueBlend Recessed

Philips TrueBlend: Proposition build around flexibility, choice, and performance.

Popular downloads

View all downloads

Where to buy

Products

Product				Compare
TrueBlend Recessed, Recessed, 23.5 W, 1722x100 mm, B40, 3600 lm, 4000 K, CRI>90, Wireless, Interact Ready, UGR16, U4, Wieland, TP(b), EL-DC RC455X 36S/940 DLO U4 W3 L1722 W200 B40 910505103924 Recessed, 1722x100 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 40 mm - For T/Omega profiles, Sensor ready driver Interact System ready for central emergency lighting, Interact SNS210 sensor, 3600 lm, 23.5 W, 153 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR16, Wide beam office compliant, White reflector, Diffused lens optic, Polymethyl methacrylate, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Plug-in connector 3-pole Wieland/Adels compatible, TP(b) diffuser flammability class, DC operated central emergency lighting	153	3600	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 29.5 W, 1200x100 mm, B40, 3600 lm, 4000 K, CRI>90, Wireless, Interact Ready, UGR16, U4, TP(b), EL-DC RC455B 36S/940 MCW-M U4 L1200 W100 B40 910505103965 Recessed, 1200x100 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 40 mm - For T/Omega profiles, Sensor ready driver Interact System ready for central emergency lighting, Interact SNS210 sensor, 3600 lm, 29.5 W, 122 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR16, Reflector, White reflector, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Push-in connector 3-pole, TP(b) diffuser flammability class, DC operated central emergency lighting	122	3600	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 36 W, 1200X125 mm, B40, 3600 lm, 4000 K, CRI>90, UGR19, TP(b), EL-DC RC455B 36S/940 MLO L1200 W150 B40 910505103944 Recessed, 1200X125 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 40 mm - For T/Omega profiles, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 3600 lm, 36 W, 100 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR19, Wide beam office compliant, White reflector, Micro-lens optic, Polymethyl methacrylate, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Push-in connector 5-pole, TP(b) diffuser flammability class, DC operated central emergency lighting	100	3600	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 32.5 W, 1497X150 mm, B30, 4000 lm, 4000 K, CRI>90, UGR16, Wieland, TP(b), ELD3h/EL-DC RC455X 40S/940 DLO ELD3 W6 L1497 W200B30 910505103928 Recessed, 1497X150 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 30 mm - For C/U profiles, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 4000 lm, 32.5 W, 123 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR16, Wide beam office compliant, White reflector, Diffused lens optic, Polymethyl methacrylate, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Wieland/Adels connector 6-pole (4-pole mains and 2-pole control signal), TP(b) diffuser flammability class, Emergency lighting 3 hours duration Pro version, DC operated central emergency lighting	123	4000	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 42.5 W, 1200x100 mm, B40, 4000 lm, 4000 K, CRI>90, UGR19, TP(b), EL-DC RC455B 40S/940 MLO L1200 W100 B40 910505103945 Recessed, 1200x100 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 40 mm - For T/Omega profiles, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 4000 lm, 42.5 W, 94 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR19, Wide beam office compliant, White reflector, Micro-lens optic, Polymethyl methacrylate, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Push-in connector 5-pole, TP(b) diffuser flammability class, DC operated central emergency lighting	94	4000	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, BioUp, 38.5 W, 1722x100 mm, B30, 2800 lm, Tunable white 2700-6500 K, CRI>90, Wireless, Interact Ready, UGR16, U4, Wieland, TP(b), EL-DC RC455X 28S/TWBU MCB-M U4 W3 L1722W100B30 910505103921 Recessed, 1722x100 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 30 mm - For C/U profiles, Sensor ready driver Interact System ready for central emergency lighting, Interact SNS210 sensor, 2800 lm, 38.5 W, 73 lm/W, Tunable white 2700-6500 K, Tunable, SDCM ≤3.0, CRI>90, UGR16, Reflector, White reflector, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Plug-in connector 3-pole Wieland/Adels compatible, TP(b) diffuser flammability class, DC operated central emergency lighting	73	2800	Tunable white 2700-6500	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 22 W, 1200X150 mm, B40, 2800 lm, 4000 K, CRI>90, UGR19, TP(b), EL-DC RC455B 28S/940 MXO L1200 W150 B40 910505103956 Recessed, 1200X150 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 40 mm - For T/Omega profiles, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 2800 lm, 22 W, 127 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, CRI>90, UGR19, Wide beam, White reflector, Micro-hexagonal optic, Polystyrene, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, Push-in connector 5-pole, TP(b) diffuser flammability class, DC operated central emergency lighting	127	2800	4000	Product leaflet PDF IES files IES Configure product Where to buy
TrueBlend Recessed, Recessed, 26.5 W, 1722x100 mm, B30, 4000 lm, 3000 K, CRI>90, UGR16, Wieland, TP(b), EL-DC RC455X 40S/930 DLO W3W2 L1722 W150 B30 910505103922 Recessed, 1722x100 mm, Steel, White, Signal white (RAL9003), Single layer powder coating, Mounting bracket - fixed height 30 mm - For C/U profiles, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 4000 lm, 26.5 W, 151 lm/W, 3000 K, (0.43, 0.40) SDCM ≤3.0, CRI>90, UGR16, Wide beam office compliant, White reflector, Diffused lens optic, Polymethyl methacrylate, IP20 \| Finger-protected, IK03 \| 0.3 J, Safety class I, GST18/3 Wieland/Adels for main + BST14/2 Wieland for DALI, TP(b) diffuser flammability class, DC operated central emergency lighting	151	4000	3000	Product leaflet PDF IES files IES Configure product Where to buy

74 items

of 10

Products per page

Description

When specifying lighting for premium office applications, technical specifiers need to deal with a wide variety of requirements and constraints linked to ceiling types and customer/architect preferences. Philips TrueBlend is a flexible luminaire portfolio offering choice in look & feel for the architect, and mechanical fit to many different ceiling types, and a palette of optics to choose from. Philips TrueBlend is built around flexibility and choice; our new recessed office range is a perfect fit for your non-standard ceiling or renovation project where luminaires need to fit the hole of existing luminaires. A wide variety of optics, best-in-class efficacy, combined with our wellbeing led spectra, and Interact connectivity, offers choice in performance and look & feel. TrueBlend helps save energy & provide the right level of light. Not only is it compliant with the WELL Building Standard for Light, but also is rated UGR<19, which is compliant with all office norms (OC). This luminaire family is available in different lengths, light outputs, optics, housing colors, various bracket height, connectors. This offers the ultimate design flexibility and unlimited possibilities. TrueBlend luminaires offer state-of-the-art efficacy and excellent light quality (CRI>90) with upgradability features and repairability that promises a long lifetime. They are also designed for recyclability, making them a truly circular, green choice. So, TrueBlend is an all-in-one solution with superior lighting specifications combined with sustainable approach to high-performance office lighting.

Benefits

Designed for enhanced well-being of people with high quality of light.
Best-in-class efficacy with superior lighting specifications & long lifetime
Sustainable, future-ready, scalable smart office capabilities with best-in-class Interact proposition.
Significantly reduces operational costs for an attractive payback time.

Features

Best-in-class efficacy up to 170lm/W supports green building design and energy saving subsidy criteria.

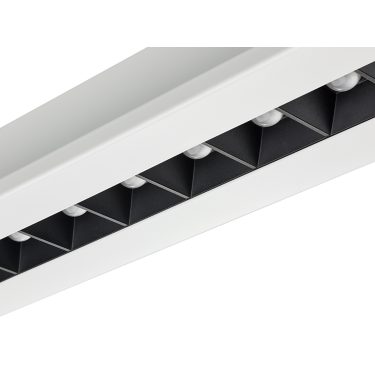

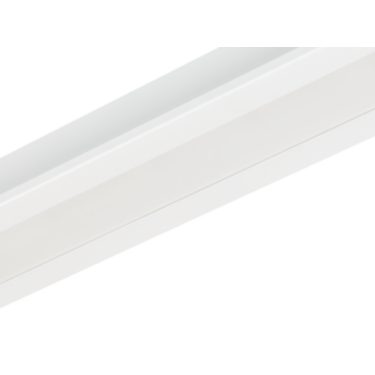

Office-compliant lighting with wide optics choices like DLO, MLO & mini cups.
Highly uniform lighting with excellent glare control (UGR<19, L65<3000cd/m2)
3000K, 4000K, Tunable White & tunable white bio-up versions, all CRI>90
Long lifetime upto L90@50,000 hours
Wide connector choice for simpler & faster installation
Connected system ready with Interact Pro scalable platform using integrated sensors and/or wireless drivers for data collection, occupancy, daylight regulation and wayfinding.
Prepared for circularity (no glue, replaceable electronics, upgradable system, efficient and long lifetime) plus supporting Environmental Product Declaration (EPD) guide.
Recessed mounting options, including all accessories.

Applications

Offices, Education, Retail

Warning & Safety

The product is IP20 and, as such, is not protected against water ingress. Therefore, we strongly recommend that the environment in which the luminaire is to be installed is suitably checked.
If the above advice is not taken and the luminaires are subject to water ingress, Philips / Signify cannot guarantee safe failure and the product warranty will become void.
