CoreLine Highbay Gen6

Philips CoreLine Highbay Gen6: Excellent illumination. Easy installation.

Popular downloads

View all downloads

Where to buy

Products

Product				Compare
CoreLine Highbay Gen6, UltraEfficient, 55 W, 10000 lm, 4000 K, CRI≥80, DALI, Beam angle 55°, IP66, IK08, EL-DC BY120P G6 LED100/840 PSD NB 911401553445 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 10000 lm, 55 W, 182 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 55°, IP66 \| Dust penetration-protected, jet-proof, IK08 \| 5 J vandal-protected, Safety class I, Screw connector, DC operated central emergency lighting	182	10000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 196 W, 35000 lm, 4000 K, CRI≥80, DALI, Beam angle 90°, IP66, IK08, EL-DC BY122P G6 LED350/840 PSD WB 911401556745 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 35000 lm, 196 W, 179 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 90°, IP66 \| Dust penetration-protected, jet-proof, IK08 \| 5 J vandal-protected, Safety class I, Screw connector, DC operated central emergency lighting	179	35000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 222 W, 40000 lm, 4000 K, CRI≥80, Wireless, Interact Ready, Beam angle 55°, IP65, IK05, EL-DC BY122X G6 LED400/840 SIA NB H4 911401557145 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Sensor ready driver Interact System ready for central emergency lighting, 40000 lm, 222 W, 180 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 55°, IP65 \| Dust penetration-protected, jet-proof, IK05 \| 0.7 J, Safety class I, Screw connector, DC operated central emergency lighting	180	40000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 105 W, 20000 lm, 4000 K, CRI≥80, Beam angle 55°, IP66, IK08 BY120P G6 LED200/UE840 PSU NB 911401554545 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit (On/Off), 20000 lm, 105 W, 190 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 55°, IP66 \| Dust penetration-protected, jet-proof, IK08 \| 5 J vandal-protected, Safety class I, Screw connector	190	20000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 137 W, 25000 lm, 4000 K, CRI≥80, Wireless, Interact Ready, Beam angle 55°, IP65, IK05, EL-DC BY121X G6 LED250/840 SIA NB H4 911401555345 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Sensor ready driver Interact System ready for central emergency lighting, 25000 lm, 137 W, 182 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 55°, IP65 \| Dust penetration-protected, jet-proof, IK05 \| 0.7 J, Safety class I, Screw connector, DC operated central emergency lighting	182	25000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 110 W, 20000 lm, 4000 K, CRI≥80, Wireless, Interact Ready, Beam angle 55°, IP65, IK05, EL-DC BY120X G6 LED200/840 SIA NB H4 911401554745 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Sensor ready driver Interact System ready for central emergency lighting, 20000 lm, 110 W, 182 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 55°, IP65 \| Dust penetration-protected, jet-proof, IK05 \| 0.7 J, Safety class I, Screw connector, DC operated central emergency lighting	182	20000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 155 W, 30000 lm, 4000 K, CRI≥80, Beam angle 90°, IP66, IK08 BY121P G6 LED300/UE840 PSU WB 911401556245 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit (On/Off), 30000 lm, 155 W, 194 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 90°, IP66 \| Dust penetration-protected, jet-proof, IK08 \| 5 J vandal-protected, Safety class I, Screw connector	194	30000	4000	Product leaflet PDF IES files IES Where to buy
CoreLine Highbay Gen6, UltraEfficient, 110 W, 20000 lm, 4000 K, CRI≥80, DALI, Beam angle 90°, IP66, IK08, EL-DC BY120P G6 LED200/840 PSD WB 911401554945 Aluminum die cast, Gray, Basalt gray (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit with DALI interface, DC compatible for central emergency lighting (integrated), 20000 lm, 110 W, 182 lm/W, 4000 K, (0.3818,0.3797) SDCM ＜5, CRI≥80, Beam angle 90°, IP66 \| Dust penetration-protected, jet-proof, IK08 \| 5 J vandal-protected, Safety class I, Screw connector, DC operated central emergency lighting	182	20000	4000	Product leaflet PDF IES files IES Where to buy

42 items

of 6

Products per page

Description

Philips CoreLine Highbay Gen6 delivers on the CoreLine promise of innovative, easy-to-use, and high-quality lighting. With a redefined and appealing elegance, CoreLine Highbay Gen6 is a reliable, highly efficient luminaire with a very long lifetime. It delivers flicker-free lighting and great energy savings, and requires less maintenance than comparable luminaires. CoreLine Highbay Gen6 is also very easy to handle. The luminaire can be installed on your existing grid. Electrical connections are straightforward, with an external IP65 connector that does not require you to open the luminaire. With a choice of narrow and wide beam angles, you can adjust your lighting plan to suit your exact needs. The CoreLine Highbay Gen6 range includes Interact Ready luminaires. With integrated wireless communications and integrated movement and daylight sensors, CoreLine Highbay Gen6 is ready for use with any Interact connected lighting system.

Benefits

Saves energy with UltraEfficient options

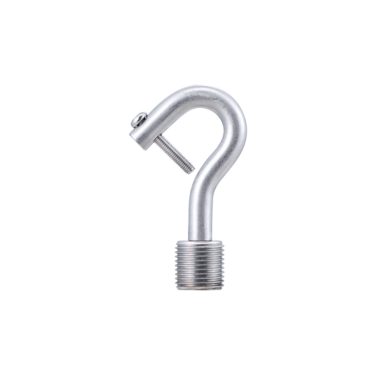

Easy installation in extensive applications - single suspension hook and external connector, additional mounting bracket for more flexibility
Ideal for general application projects, with robust design and a high water and dust protection ratings (IP66 and IP65)

Features

Long lifetime of 100,000 hours at L70
High efficiency: Standard versions to 183 lm/W, UltraEfficient versions up to 196 lm/W
Choice of narrow and wide beam options
Low glare without the need for additional accessories
Appealing and sustainable design with high-quality, high-durability die-cast aluminum housing

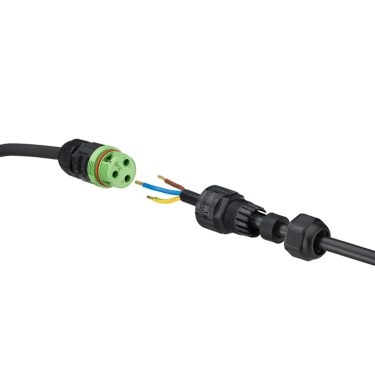

Single-point mounting and pre-mounted external IP65-rated electrical connector
Optional versions: DALI dimming, integrated wireless connectivity (Interact Ready)
