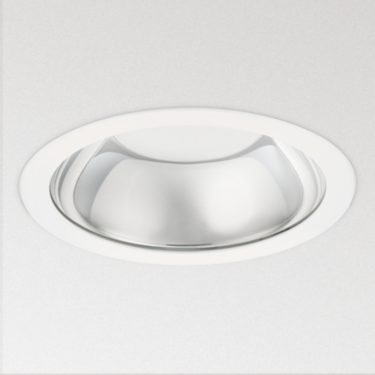

CoreLine Downlight

CoreLine Downlight, 19 W, D200 mm, 2200 lm, 3000 K, High-gloss reflector, Frosted, IP20/54

DN140B LED20S/830 PSU C IP54 PI6
  • Signify Service Tag logo

Product Description

D200 mm, Polycarbonate, White, Signal white (RAL9003), Power supply unit (On/Off), 2200 lm, 19 W, 111 lm/W, 3000 K, (0.432,0.404) SDCM≦5, High-gloss reflector, Frosted, Polycarbonate, IP20/54 | Finger-protected; dust accumulation-protected, splash-proof, IK02 | 0.2 J standard, Safety class I, Push-in connector 6-pole

Order code: 911401633805
Full order code: 871016332608500

Specifications

  • Light source replaceable
    No
  • Number of gear units
    1 unit
  • Driver included
    Yes
  • Service tag
    Yes
  • Lighting Technology
    LED
  • Value ladder
    Performance
  • Serviceability class
    Class C, luminaire without serviceable parts, not serviceable
  • Warranty period
    5 years
  • Sustainability rating
    -
