MHN-TD

Description

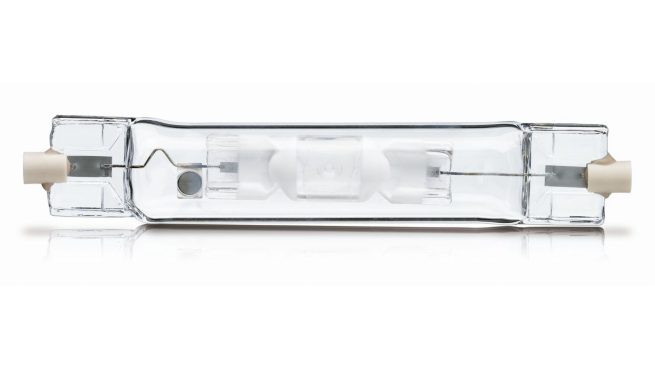

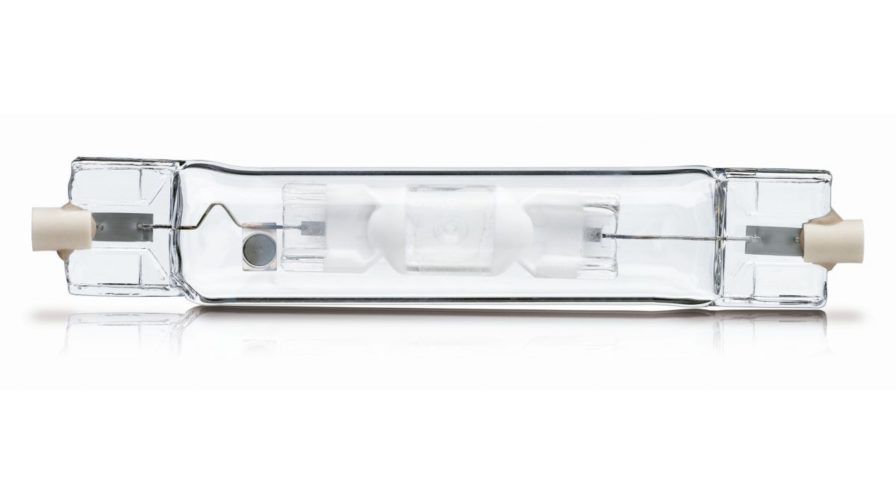

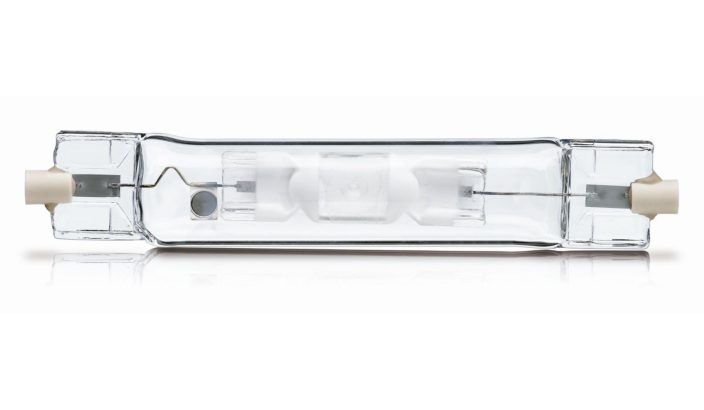

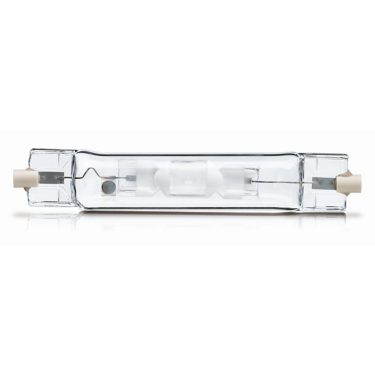

Double-ended quartz Metal-halide lamp

Benefits

• All types are UV-Block for reduced health and fading risks

Features

• Quartz discharge tube containing high-pressure mercury and a mixture of dysprosium, holmium and thulium halides (4200 K) or tin iodide (3000 K), with sodium and thallium added for color correction and arc stabilization

• Double-ended lamps housed in a tubular clear UV-Block quartz evacuated outer envelope

• Restricted burning position

Applications

Indoors - accent lighting, general lighting in downlighters, e.g. in shops and malls, Downlighters, uplighters and wall-washers, e.g. in shops and malls, Outdoors - floodlighting monuments, facades and billboards

Warning & Safety

• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)

• The luminaire must be able to contain hot lamp parts if the lamp ruptures

• Control gear must include end-of-life protection (IEC61167, IEC 62035)

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
