        Product family information

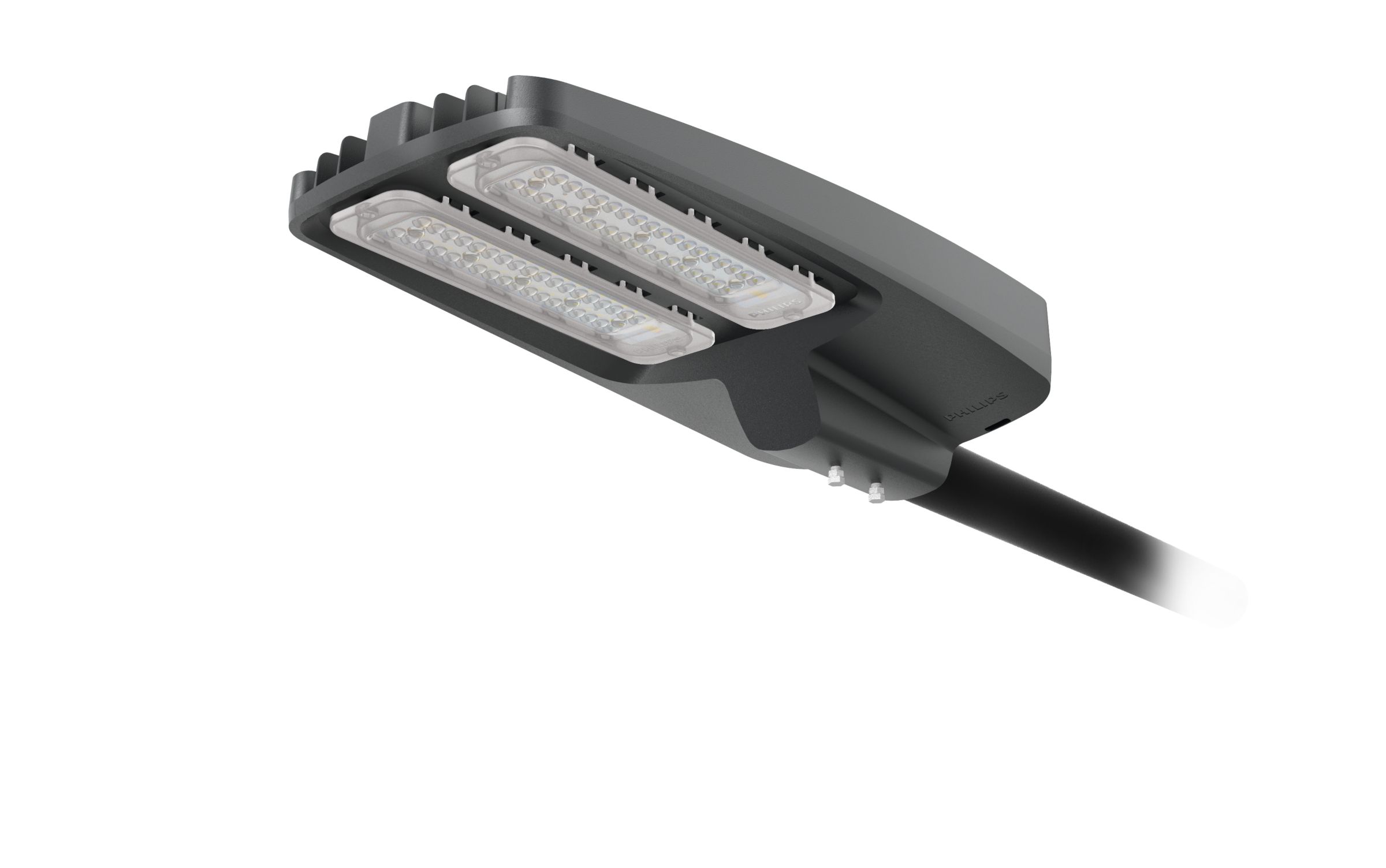

        Skyline Xtra is an extension of Skyline range of streetlight that is sleek and elegant in design with outstanding energy efficiency. Ease of maintenance with integrated optics makes it unique and differentiated from others. Skyline Xtra uses High efficacy driver and LED platform to ensure higher energy saving and reliable operation over committed lifetime. Solid LM 6 alloy Pressure die-cast IK 09 rated housing ensures high strength and safety on the pole, at the same time provides excellent heat dissipation, extending the life of the components inside. The multiple lumen packs with dedicated street optics makes it optimum for the A1 and A2 category of Roads.


        Maximize the Energy savings
        Unparallel Strength and Durability with excellent thermal management leads to longer life class for luminaire
        Option of multiple optics and lumen packages providing application flexibility
        Easy serviceability with simple tools


        Ingress Protection - IP66
        Impact Resistance IK09
        Inbuilt encapsulated Potted Driver
        Designed for operations under diverse environment from -10˚C to 35˚C
        Life class is 50000 hours (L70B50 @ Ta35˚C)
        Pressure die-cast housing offers excellent corrosion-resistance and robustness
        System efficiency 120 lm/W
        System lumen 21300lm, 24000lm,26500 & 29500lm options
        System Wattage 170W, 190W, 210W, & 235W
        SLC and SLD Optics
        High Voltage Cutoff @ 325 ± 15V with Auto Restart feature
        440V Protection for 8 Hrs. (Phase to Phase)
        Internal Surge Protection 4KV
        Mounting Pole Diameter: 48mm to 60mm
        Class B Serviceability with Top openable cover
        Control 1-10V and SR (on request)


        Road and Street
        Highways and Express ways
        City main traffic roads
        City shopping & commercial roads
        Residential streets
        Industrial roads

        Warning & Safety

        Meant for use in Outdoor Environment only
