        Product family information

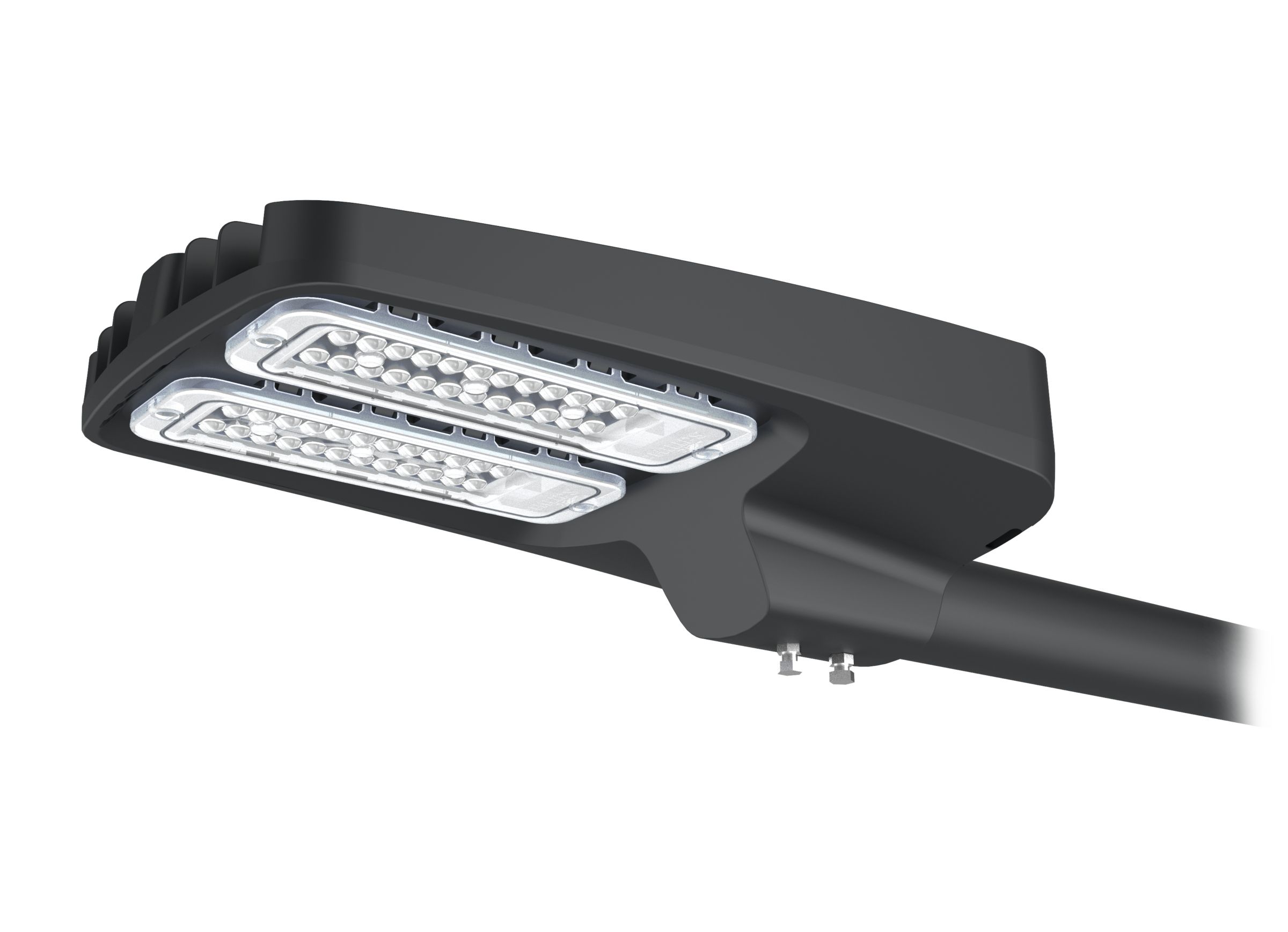

        Skyline is sleek and elegant design innovative streetlight with best in class energy efficiency. Ease of maintenance with integrated optics makes it unique and differentiated from others. Skyline uses High efficacy driver and LED platform to ensure higher energy saving and reliable operation over committed lifetime. Skyline LED Luminaire is a solid LM 6 alloy Pressure die-cast IK 09 rated housing, ensuring high strength and safety on the pole. The solid die-cast aluminum also has excellent heat dissipation, extending the life of the components inside. The multiple lumen packs with dedicated street optics makes it optimum for the A1 and A2 category of Roads.

        Benefits

        Maximize the Energy savings
        Unparallel Strength and Durability with excellent thermal management leads to longer life class for luminaire
        Option of multiple optics and lumen packages providing application flexibility
        Easy serviceability with simple tools

        Features

        Ingress Protection -IP66
        Impact Resistance IK08
        Inbuilt encapsulated Potted Driver
        Designed for operations under diverse environment from -10˚C to 35˚C
        Life class is 50000 hours (L70B50 @ Ta35˚C)
        Pressure die-cast housing offers excellent corrosion-resistance and robustness
        System efficiency 110 lm/W
        System lumen 14000lm, 16000lm, & 18000lm options
        High Voltage Cutoff @ 325 ± 15V with Auto Restart feature
        440V Protection for 8 Hrs. (Phase to Phase)
        Internal Surge Protection 4KV
        Mounting Pole Diameter: 48mm to 60mm
        Class B Serviceability with Top openable cover

        Applications

        Road and Street
        Highways and Express ways
        City main traffic roads
        City shopping & commercial roads
        Residential streets
        Industrial roads

        Warning & Safety

        Meant for use in Outdoor Environment only
