| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| EAN/UPC - Case | 8727900067989
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871150088496100
|
| Order code | 913702243012
|

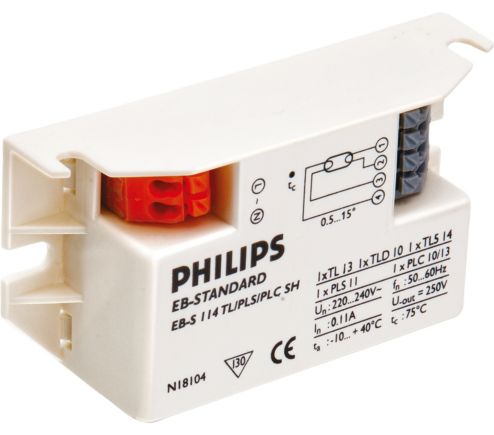

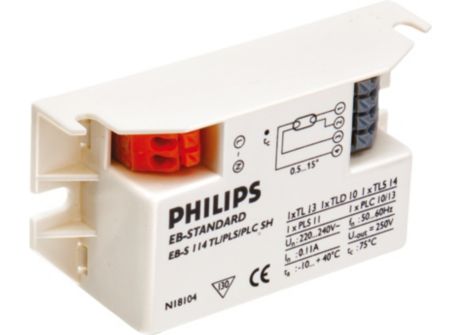

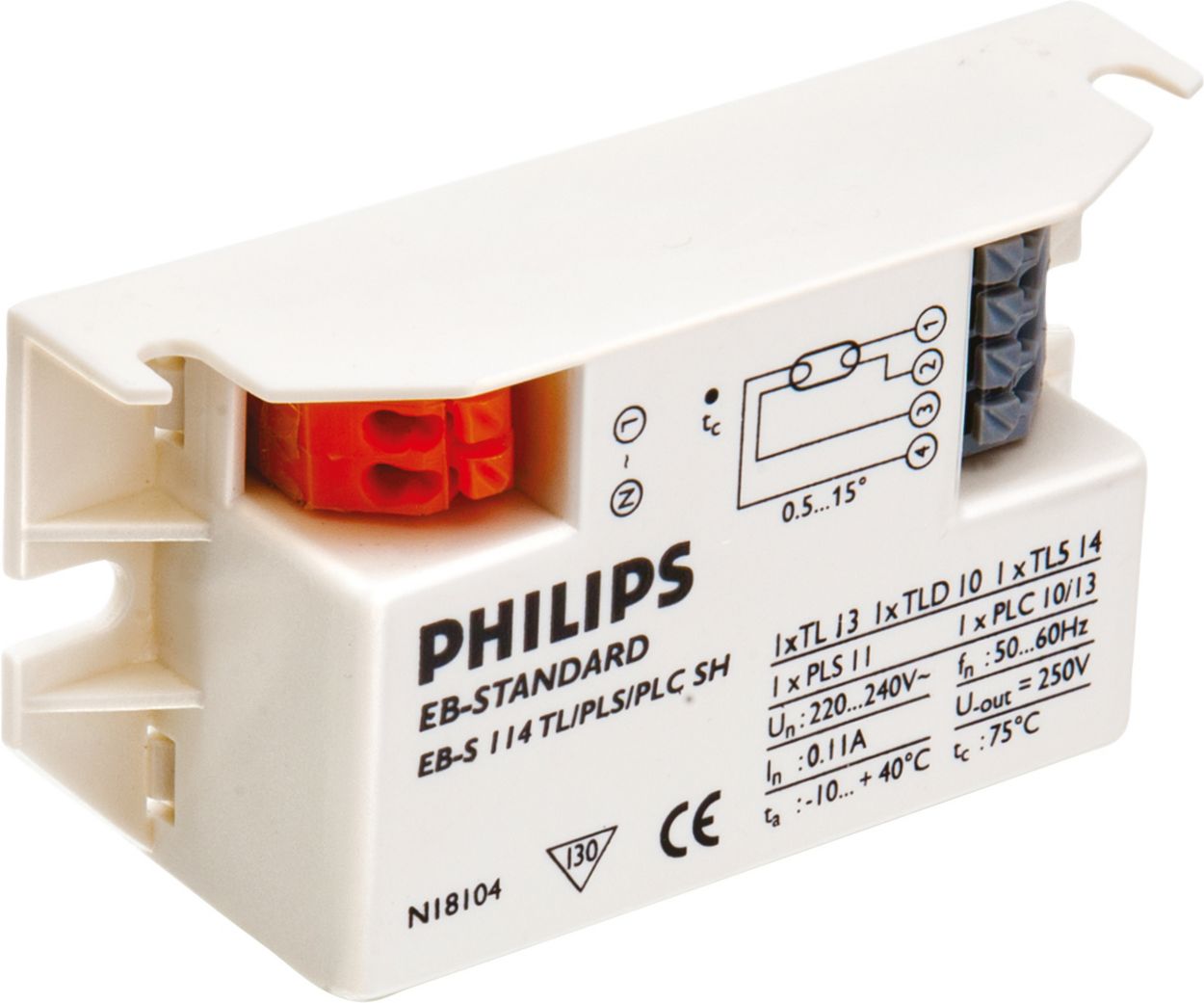

| Order product name | EBS 114 230 SH
|
| Full product name | EBS 114 230 SH
|
| Numerator - Packs per outer box | 50
|
| Material number (12NC) | 913702243012
|
| Number of Lamps | 1
piece/unit
|
| Connector Type Input Terminals | WAGO 251 universal connector
[Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| Connector Type Output Terminals | WAGO 251 universal connector
[Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| T-Case Maximum (Max) | 75
°C
|
| Ambient temperature range | 0 °C to 40 °C
|
