| Application Code | II SR
|
| Type Version | SR
|
| Lamp Type | PL-T/C/L/TL5C
|
| Number of Lamps | 2
piece/unit
|
| Number of Products on MCB (16A Type B) (Nom) | 28
|
| Automatic Restart | Yes
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| Operating Frequency (Nom) | 45
kHz
|
| Crestfactor (Nom) | 1.7
|
| Power Factor 100% Load (Nom) | 0.95
|
| Preheat Time | 1.93
s
|
| Mains Voltage Performance (AC) | 202...254V
|
| Mains Voltage Safety (AC) | 198...264V
|
| Earth Leakage Current (Max) | 0.5
mA
|
| Inrush Current Width | 0.25
ms
|
| Ballast Factor (Nom) | 1
|
| Power Losses (Nom) | 4.25
W
|
| Inrush Current Peak (Max) | 18
A
|
| Efficiency at full load [%] | 90.96
%
|
| Connector Type Input Terminals | WAGO 250 connector
[ Suitable for manual wiring] |
| Connector Type Output Terminals | WAGO 250 connector
[ Suitable for manual wiring] |
| Cable Length Hot Wiring | 1
m
|
| Wire Striplength | 8.5-9.5
mm
|
| Dual Fixture Master/Slave | -
[ not specified] |
| Input Terminal Cross Section | 0.75-1.50
mm²
|
| Output Terminal Cross Section | 0.75-1.50
mm²
|
| Cable Capacity Cold Output Wires - Earth (Nom) | 100
pF
|
| Cable Capacity Hot Output Wires - Earth (Nom) | 100
pF
|
| Rated Ballast-Lamp Power | 26 W
|
| Rated Lamp Power on PL-T/C | 2x26/26
W
|
| System Power on PL-T/C | 50.2/26.87
W
|
| Power Loss on PL-T/C | 4.7/3.18
W
|
| Lamp Power on PL-T/C | 45.4/23.8
W
|
| T-Ambient (Max) | 50
°C
|
| T-Ambient (Min) | -25
°C
|
| T-Storage (Max) | 80
°C
|
| T-Storage (Min) | -40
°C
|
| T-Case Lifetime (Nom) | 75
°C
|
| T-Case Lifetime (Nom)-DUP(do not use) | 75
°C
|
| T-Case Maximum (Max) | 75
°C
|
| Housing | L 125.5x67.8x32.0
|
| Nominal Light Output After 60 Seconds | 100% of EBLF
|
| Normal Operating Voltage (DC) | 220-240
V
|
| Battery Voltage Guaranteed Operation | 276-275
V
|
| Battery Voltage Guaranteed Ignition | 186-275
V
|
| Emergency Ballast Lumen Factor (EBLF) (Nom) | 100
%
|
| Nominal Light Output After 5 Seconds | 50% of EBLF
|
| Energy Efficiency Index | A2 BAT
|
|||
| IP Classification | IP 20
[ Ingress Protection 20] |
|||
| EMI 9 kHz ... 30 MHz | EN55015
|
|||
| Vibration Standard | IEC60068-2-6 Test F c
|
|||
| Bumps Standard | IEC 60068-2-29 test Eb
|
|||
| Humidity Standard | IEC 61347-2-3
|
|||
| Approval Marks | CE marking
|
ENEC certificate
|
VDE certificate
|
VDE-EMC marking
|
| Hum And Noise Level | 30 dB(A)
|
| Full product code | 871829116959800
|

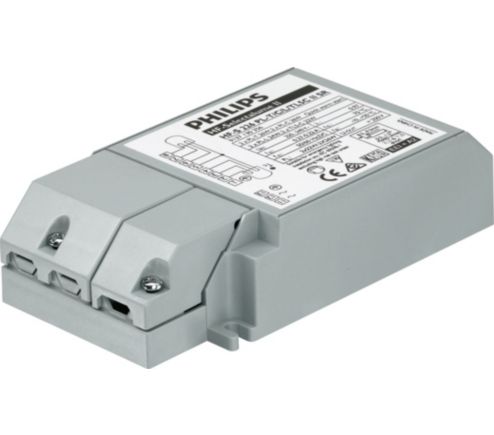

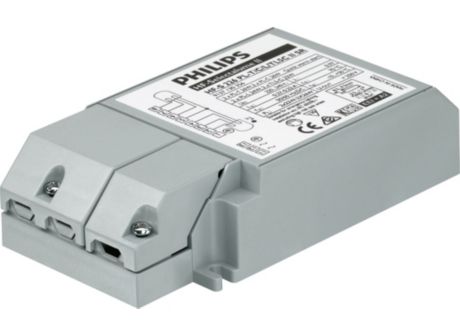

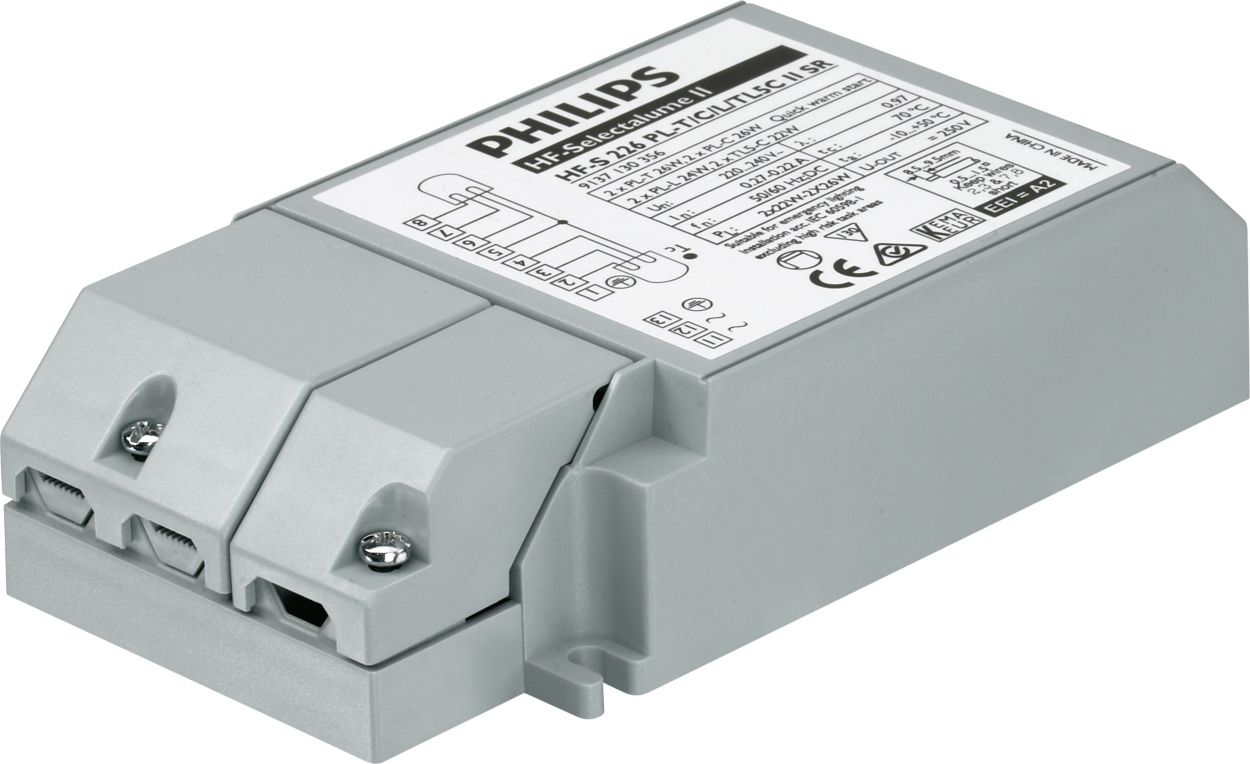

| Order product name | HF-S 1/226 PL-T/C II SR 220-240V 50/60Hz
|
| EAN/UPC - Product | 8718291169598
|
| Order code | 913713035666
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 12
|
| Material Nr. (12NC) | 913713035666
|
| Net Weight (Piece) | 0.165
kg
|
