    • An energy-efficient solution

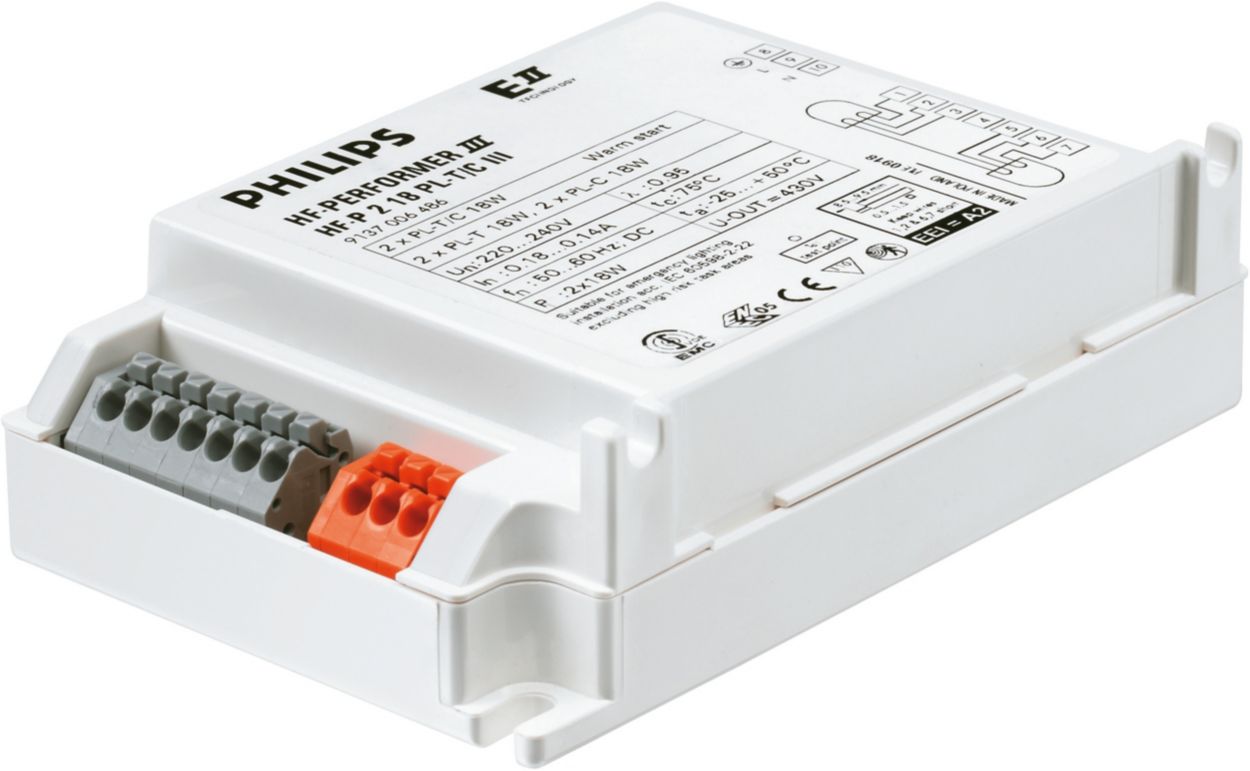

      HF-P 1/218 PL-T/C III 220-240V

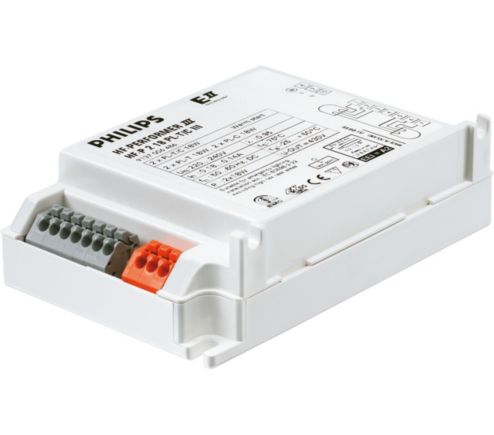

      HF-P 1/218 PL-T/C III 220-240V

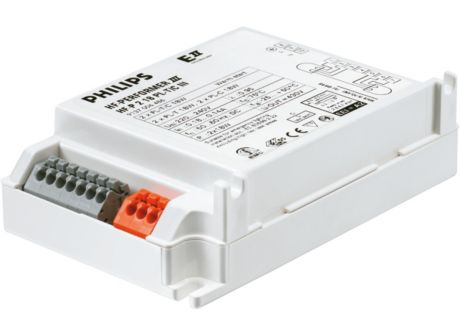

      HF-P 1/218 PL-T/C III 220-240V

      Order code: 913700648666

      Full Product Code: 872790083417800

      Downloads

      Leaflet
      Size:871.2 kB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    III
    Lamp Type
    PL-T/C
    Number of Lamps
    2 piece/unit
    Number of Products on MCB (16A Type B) (Nom)
    28
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Operating Frequency (Max)
    - kHz
    Operating Frequency (Min)
    42 kHz
    Operating Frequency (Nom)
    45 kHz
    Ignition Method
    Warm Start
    Crestfactor (Max)
    1.7
    Power Factor 100% Load (Nom)
    0.95
    Ignition Time (Max)
    0.40 s
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Earth Leakage Current (Nom)
    0.5 mA
    Inrush Current Width
    0.250 ms
    Constant Wattage Deviation
    -2%/+2%
    Ballast Factor (Nom)
    1
    Power Losses (Nom)
    0.68-2.21 W
    Inrush Current Peak (Max)
    18 A
    Wiring
    Connector Type Input Terminals
    Insert
    Cable Capacity Output Wires Mutual (Nom)
    100 pF
    Connector Type Output Terminals
    Insert
    Cable Length From Device to Lamp
    1 m
    Cable Length Hot Wiring
    1 m
    Wire Striplength
    8.5-9.5 mm
    Dual Fixture Master/Slave
    Not applicable  [ Master/Slave oper. not applicable]
    Input Terminal Cross Section
    0.50-1.50 mm²
    Output Terminal Cross Section
    0.50-1.50 mm²
    Cable Capacity Output Wires to Earth (Nom)
    100 pF
    System characteristics
    Rated Ballast-Lamp Power
    18 W
    Rated Lamp Power on PL-T/C
    2x18/18 W
    System Power on PL-T/C
    33.84/17.9 W
    Power Loss on PL-T/C
    2.64/1.9 W
    Lamp Power on PL-T/C
    31.2/16 W
    Temperature
    T-Ambient (Max)
    50 °C
    T-Ambient (Min)
    -25 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -40 °C
    T-Case Lifetime (Nom)
    75 °C
    T-Case Maximum (Max)
    75 °C
    T-Ignition (Max)
    50 °C
    T-Ignition (Min)
    -25 °C
    Mechanical and Housing
    Housing
    S 103x67x30
    Emergency Operation
    Nominal Light Output After 60 Seconds
    100% of EBLF
    Battery Voltage Lamp Ignition
    198-254 V
    Normal Operating Voltage (DC)
    220-240 V
    Battery Voltage Lamp Operation
    176-254
    Battery Voltage Guaranteed Operation
    176-275 V
    Battery Voltage Guaranteed Ignition
    186-275 V
    Nominal Light Output After 5 Seconds
    50% of EBLF
    Approval and Application
    Energy Efficiency Index
    A2 BAT
    IP Classification
    IP 20  [ Ingress Protection 20]
    EMI 9 kHz ... 30 MHz
    EN55015
    Safety Standard
    IEC 61347-2-3
    Performance Standard
    IEC 60929
    Quality Standard
    ISO 9000:2000
    Environmental Standard
    ISO 14001
    Harmonic Current Emission Standard
    IEC 61000-3-2
    EMC Immunity Standard
    IEC 61547
    Vibration Standard
    IEC68-2-6 F c
    Bumps Standard
    IEC 68-2-29 Eb
    Humidity Standard
    EN 61347-2-3 clause 11
    Approval Marks
    CE marking
    ENEC certificate
    VDE-EMV certificate
    Temperature Marking
    Yes
    Emergency Standard
    IEC 60598-2-22
    Hum And Noise Level
    Inaudible
    Product Data
    Full product code
    872790083417800
    Order product name
    HF-P 1/218 PL-T/C III 220-240V
    EAN/UPC - Product
    8711500881038
    Order code
    913700648666
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    913700648666
    Net Weight (Piece)
    0.130 kg
