HF-Regulator II for TL5 lamps
products and find the product that you are looking for by using the compare option.
Product
IES
Leaflet
Sort by:
Product family information

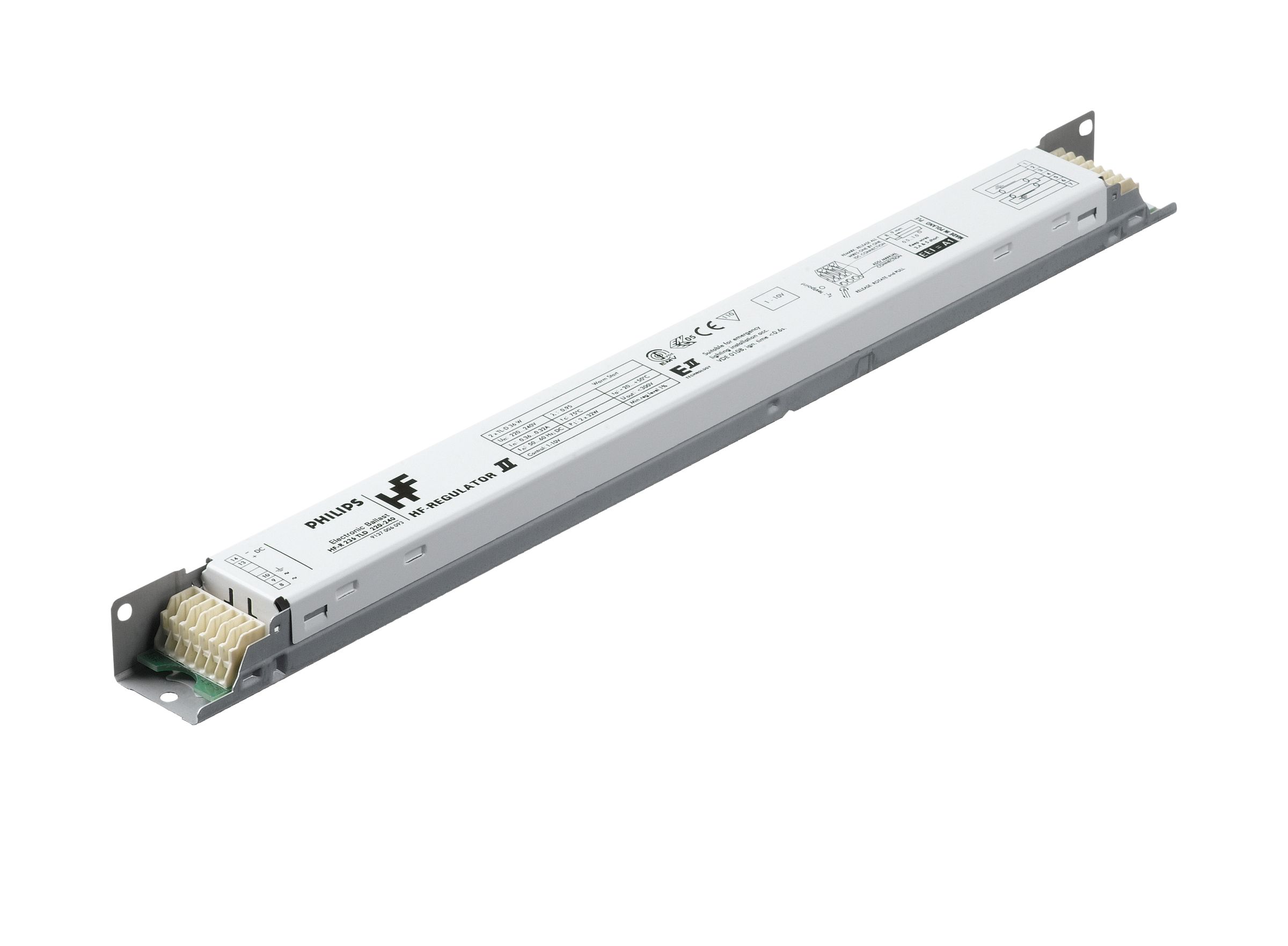

High-frequency electronic dimming ballast, using the analog protocol (1-10 V) for TL5 HE/HO and TL5 Eco lamps. The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.
Benefits
The lamp power can be dimmed from 1 to 100% via the Analog control input (in accordance with the 1-10 V industry standard)
Compliant with European and Asian norms and suitable for emergency lighting systems
Combined with controls, additional energy savings can be achieved
Features
Programmed start: flicker-free ignition 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life
Smart power ensures constant light, independent of mains fluctuations
Up to 60% reduction in energy consumption by using automatic lighting control systems
Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement
Applications
Indoor, general and task lighting applications in combination with lighting control systems (personal control, daylight linking and/or movement detection)
