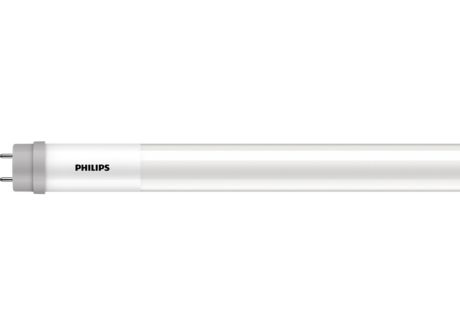

14T8/LED/48-5CCT/MF18/G/DS 1/10

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Wattage Equivalent	32 W
Power Consumption	14 W
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120-277 V
Starting Time (Nom)	0.5 s
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance	UL certificate	DLC compliance
Energy Consumption kWh/1000 h	- kWh

Product Data

EAN/UPC - Case	50046677568516
Numerator - Quantity Per Pack	1
Full product name	14T8/LED/48-5CCT/MF18/G/DS 1/10
Order code	929003051333
Material number (12NC)	929003051333
Numerator - Packs per outer box	1
Order product name	14T8/LED/48-5CCT/MF18/G/DS 1/10

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Tube, double-ended
Bulb Material	Glass
Product Length	1,200 mm
Bulb Finish	Frosted

General Information

Switching Cycle	50,000
Rated Lifetime (Hours)	50,000 hour(s)
Cap-Base	G13  [Medium Bi-Pin Fluorescent]
Nominal lifetime	50,000 hour(s)
Lighting Technology	LED

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	70 °C

Light Technical

Luminous Flux	1,800 lumen
Correlated Color Temperature (Nom)	3000 K	3500 K	4000 K	5000 K	6500 K
Color Designation	3000K/3500K/4000K/5000K/6500K
Color Consistency	<6
Color rendering index (CRI)	80
Color Code	3000K/3500K/4000K/5000K/6500K
Luminous Efficacy (rated) (Nom)	128.00 lm/W
LLMF At End Of Nominal Lifetime (Nom)	70 %
Beam Angle (Nom)	240 degree(s)
