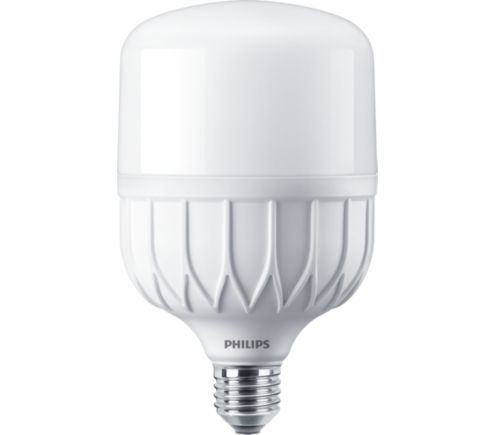

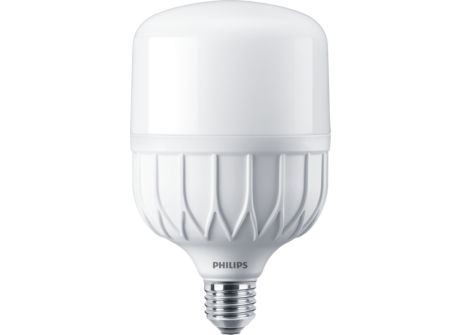

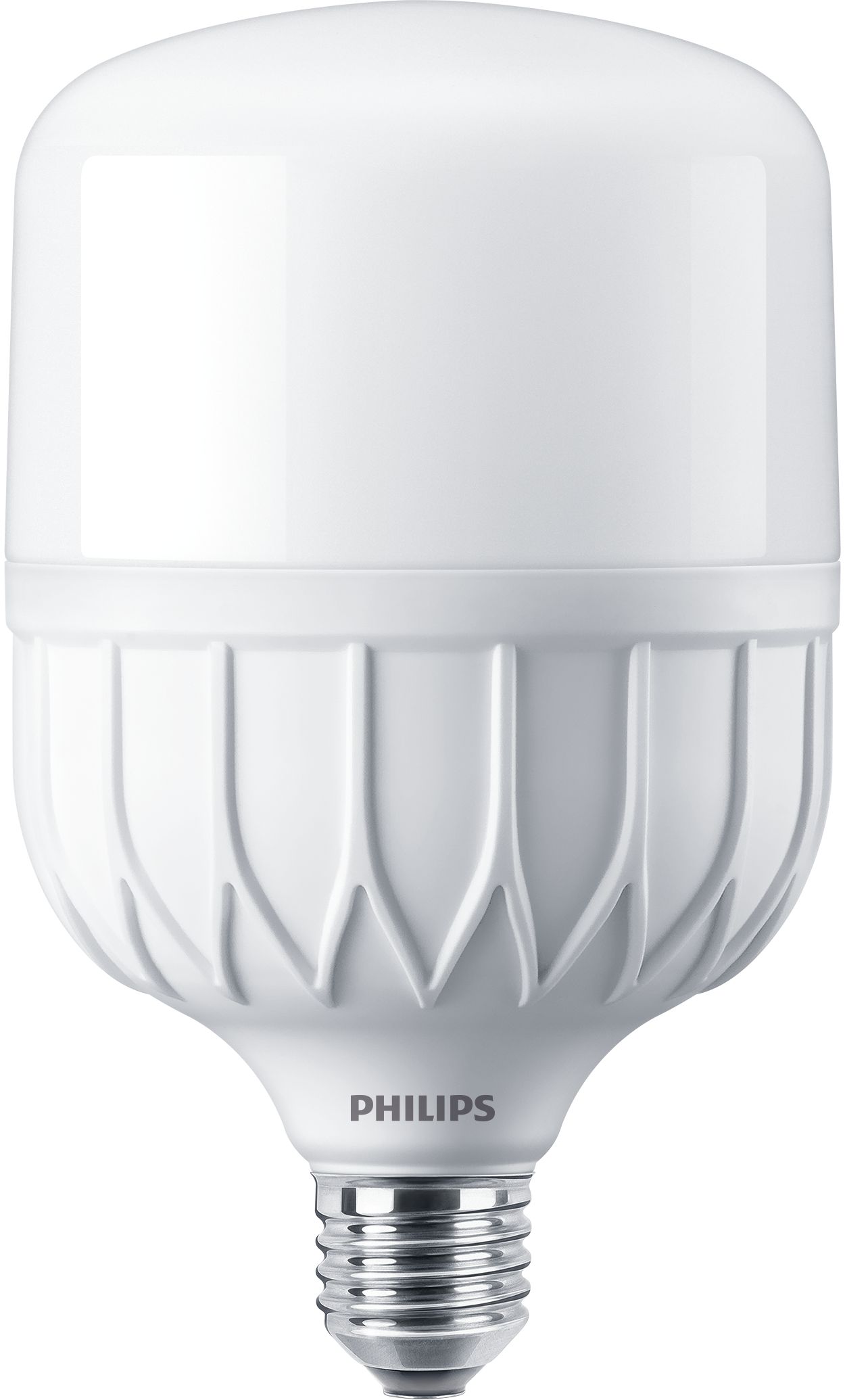

TrueForce Core HB 27-30W E27 865

Specifications Show all

General information

Cap-Base	E27  [ E27]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	15000 h
Switching Cycle	50000

Light technical

Color Code	865  [ CCT of 6500K]
Beam Angle (Nom)	200 °
Luminous Flux (Nom)	2700 lm
Color Designation	Cool Daylight
Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	90.00 lm/W
Color Consistency	<6
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	50 to 60 Hz
Power (Nom)	30 W
Lamp Current (Max)	480 mA
Lamp Current (Min)	220 mA
Wattage Equivalent	40 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.45
Voltage (Nom)	100-240 V

Temperature

T-Ambient (Max)	45 °C
T-Ambient (Min)	-20 °C
T-Case Maximum (Nom)	80 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Bulb Finish	Frosted
Bulb Shape	T-shape

Approval and application

Energy Consumption kWh/1000 h

- kWh

Application conditions

Ambient temperature range

-20 °C to 45 °C

Product data

Full product code	871869962773700
Order product name	TrueForce Core HB 27-30W E27 865
EAN/UPC - Product	8718699627737
Order code	929001987912
Numerator - Quantity Per Pack	1
Local code description	TForce Core HB 27-30W E27 865
Numerator - Packs per outer box	6
Material Nr. (12NC)	929001987912
Net Weight (Piece)	0.145 kg
