    • Reliable, high performance technology for extreme LED applications

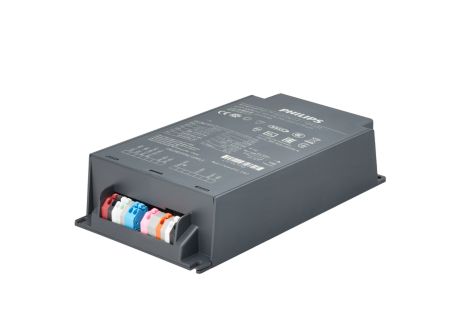

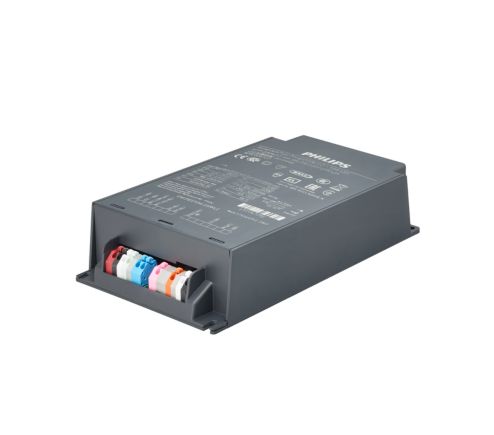

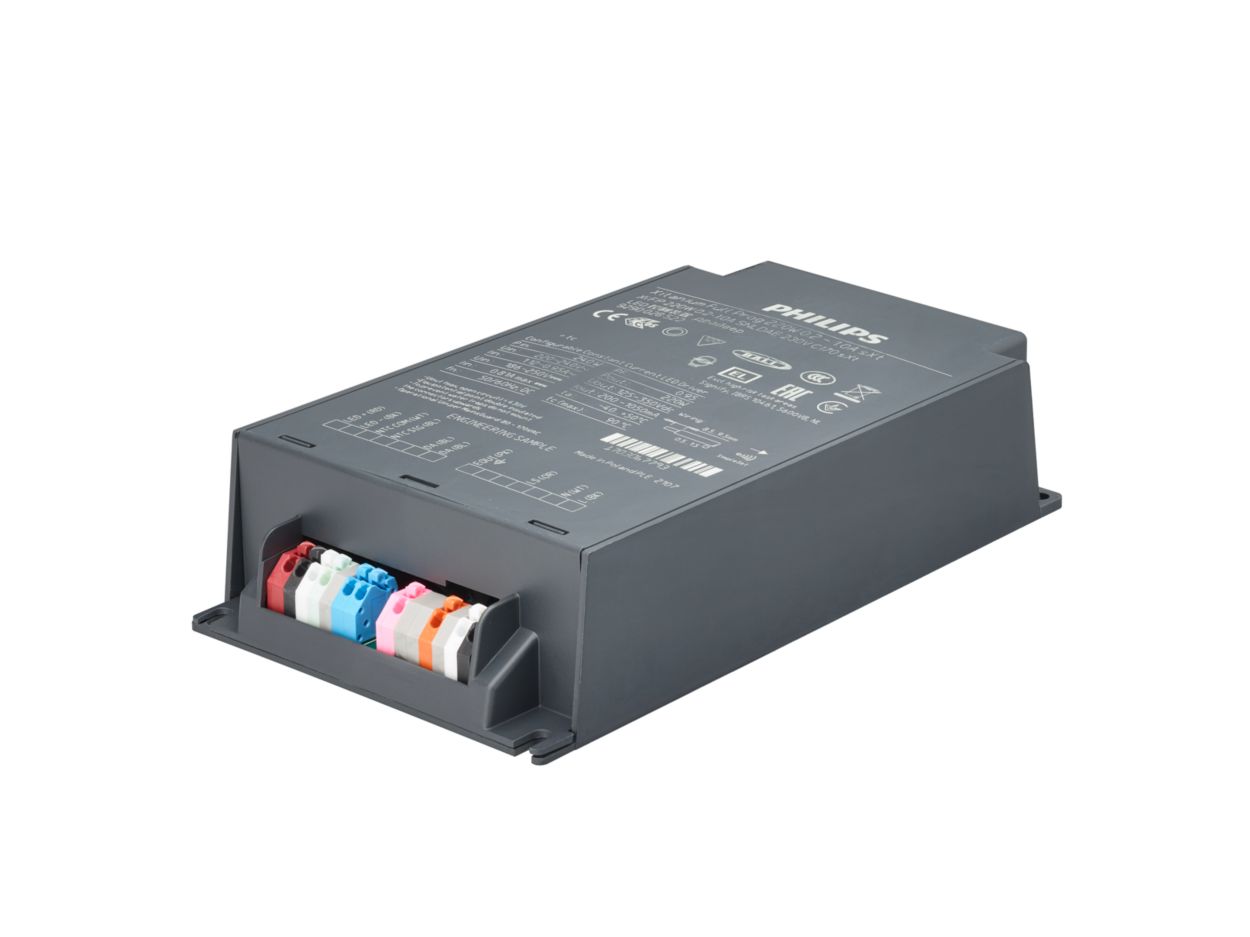

      Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt
      LED
      Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt
      Xitanium LED drivers – full programmable

      Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt

      Order code: 929002852206

      Full product code: 871951430138200

    Specifications Show all

    General information
    Protection class IEC
    Safety class I/II
    Constant light output
    Yes
    Nominal Lifetime (Nom)
    100000 h
    Operating and electrical
    Output Current Ripple (Max)
    4 %
    Maximum Efficiency at Full Load
    93.5 %
    Output Current (Max)
    1050 mA
    Open Circuit Voltage (DC) (Max)
    430 V
    Inrush Current Peak (Max)
    11.5 A
    Output Power (Max)
    220 W
    Inrush Current Width to 50% of Peak
    1320 µs
    Diagnostics
    True
    Output Power (Min)
    8.8 W
    Output Current (Min)
    70 mA
    Output Voltage (Max)
    350 V
    Output Voltage (Min)
    125 V
    System characteristics
    Central DC Operation
    No
    YellowDot ready
    No
    Temperature
    T-Case Lifetime (Max)
    80 °C
    T-Case Maximum (Max)
    90 °C
    Controls and dimming
    Dimmable
    Yes
    Dimming Range
    100-10 %
    D4i compliant
    No
    DynaDimmer
    Yes
    Mechanical and housing
    Product Length
    170 mm
    Housing
    C170_FP
    Overall length
    170 mm
    Overall width
    100 mm
    Overall height
    40 mm
    Approval and application
    Surge Protection (Common/Differential)
    Surge protection level until 10 kV
    IP Classification
    IP 20  [ Ingress Protection 20]
    Isolation Classification
    Class I and Class II
    Approval Marks
    CCC certificate
    CE marking
    CB compliance
    ENEC certificate
    Output Current Set Options
    SimpleSet, DALI
    Product data
    Full product code
    871951430138200
    Order product name
    Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt
    EAN/UPC - Product
    8719514301382
    Order code
    929002852206
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    9
    Material Nr. (12NC)
    929002852206
