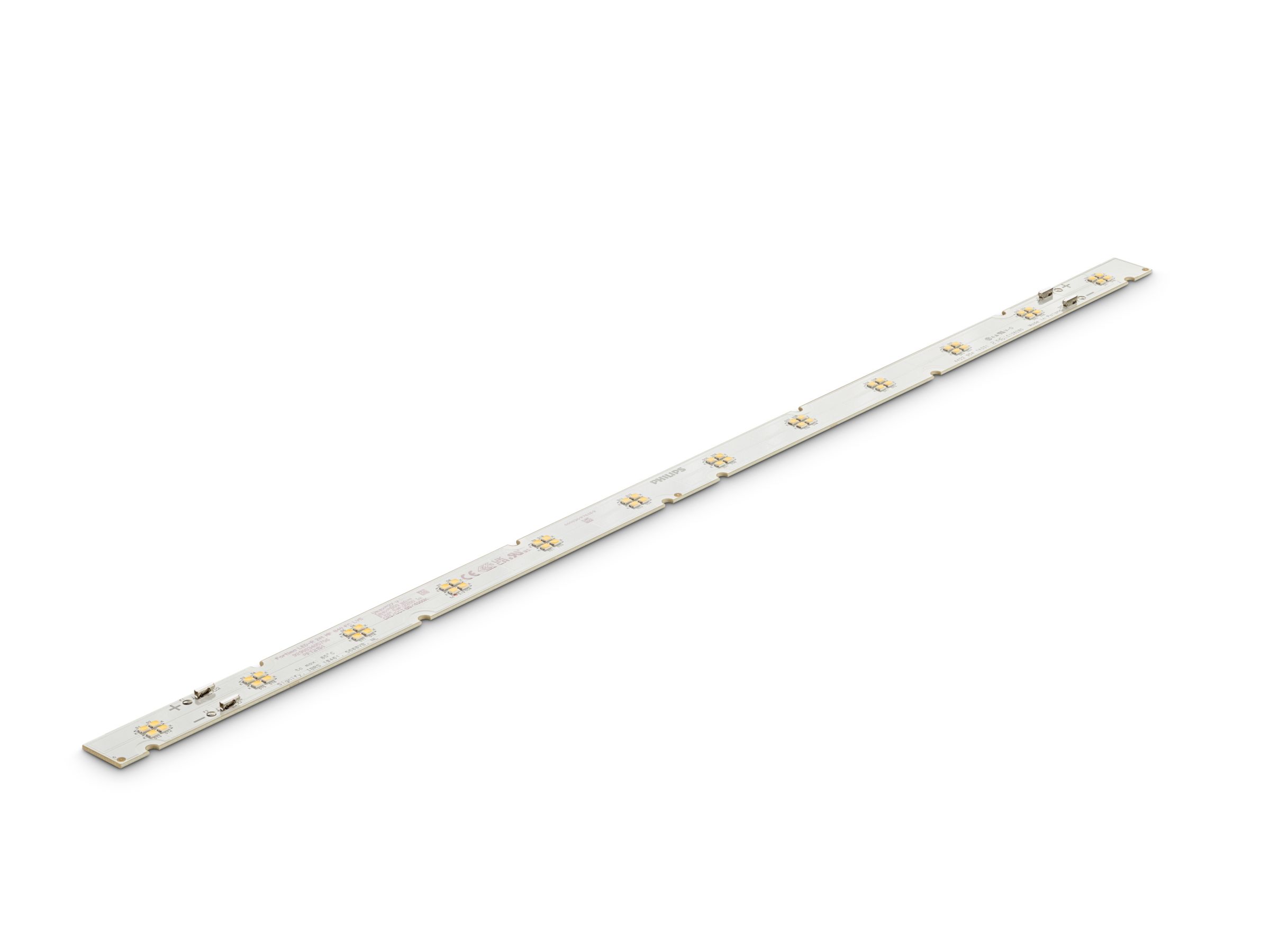

Fortimo LED-R

High efficient Fortimo LED-R modules for raster optics.

Popular downloads

Products

Product
Fortimo LED-R 2ft MF 930 FC HV5 929003405306	156	3000	156
Fortimo LED-R FT 1ft MF 927-965 FC LV5 929003406206	1010	Selectable	134
Fortimo LED-R 1ft MF 930 FC HV5 929003404106	156	3000	156
Fortimo LED-R 2ft MF 840 FC HV5 929003405106	178	4000	178
Fortimo LED-R 2ft MF 927 FC LV5 929003405806	150	2700	150
Fortimo LED-R BioUP CED 1ft FC LV5 929003406606	785	Selectable	133
Fortimo LED-R 1ft MF 827 FC HV5 929003403706	160	2700	160
Fortimo LED-R 2ft MF 830 FC HV5 929003405006	167	3000	167

31 items

of 4

Products per page

Description

The Fortimo LED-R modules are designed together with BJB's OptiLine Louvres. Together they make a high efficient and low-glare lighting solution. The system is extremely easy to install due to the one-click-fixation system which enables screw-less installation, even for high voltage applications. The Fortimo LED-R modules are available in a full range serving all different needs from different application. There are standard CRI80 modules, CRI90 High Efficiency versions, FlexTune tunable white and BioUp Cyan Enhanced Dynamic versions. Basically covering all the needs for office, retail and hospitality applications.

Benefits

High energy efficiency
Easy installation
Low glare when combined with OptiLine louvres
CRI >80 and >90, CRI >90 based on High Efficient technology
FlexTune tunable white versions
BioUp Cyan Enhanced Dynamic versions

Features

179 Lm/W (CRI80, 4000K)
CRI >80 and CRI >90
HV or LV system
FlexTune tunable white: tunable from 2700K to 6500K (CRI90 based)
BioUp CED: tunable from 2700K to 5000K (CRI80 based), R9 >50. MDER of 0.95 at 5000K
