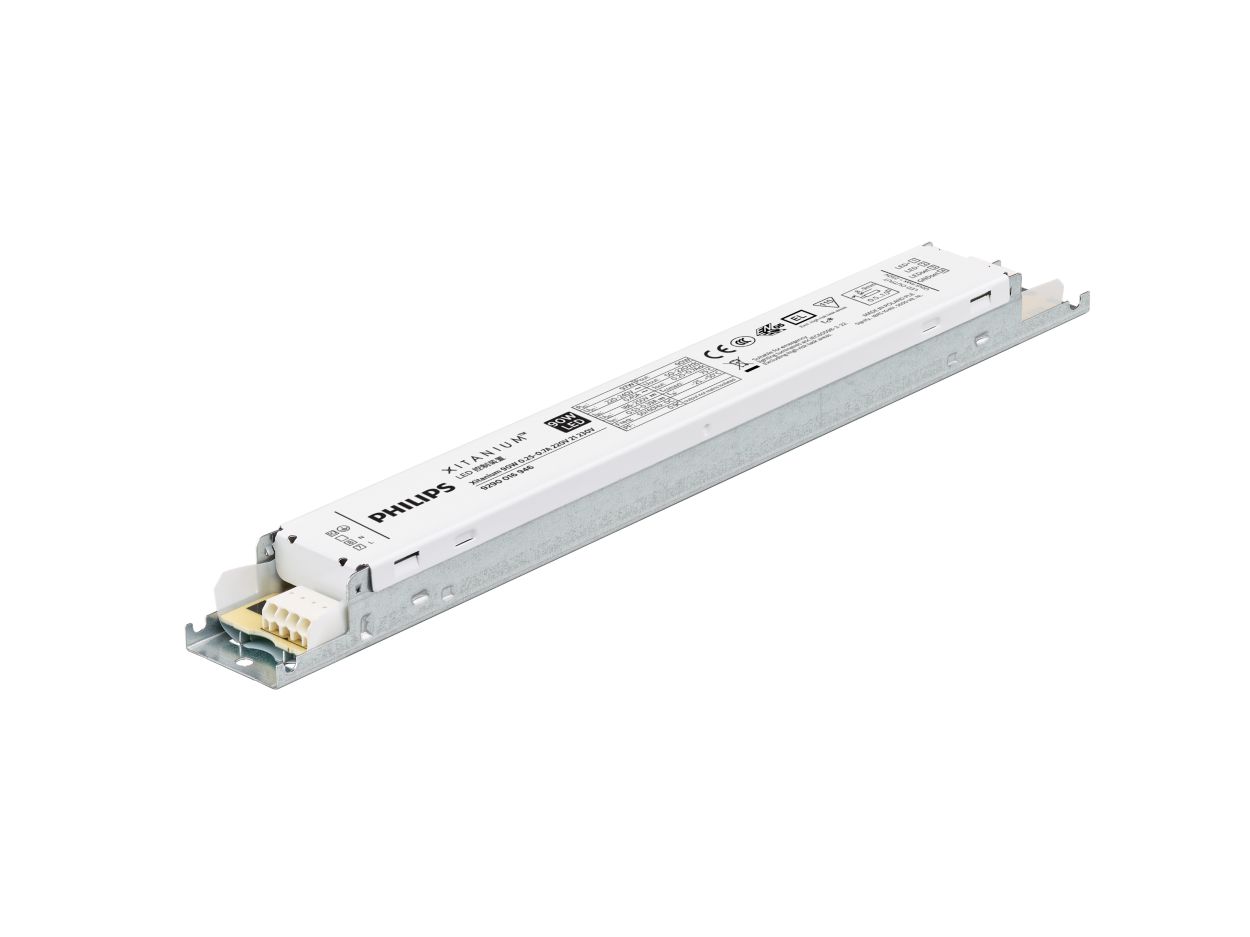

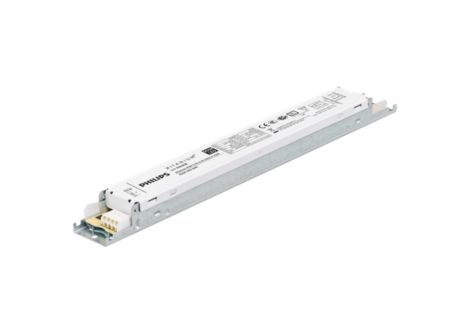

Xitanium 60W 0.08-0.35A 300V 21 230V

Specifications Show all

Operating and Electrical

Mains voltage performance (DC)	186-250 V
Energy Metering	No
Input current (DC)	0
Total Harmonic Distortion IEC (Max)	20 %
Output Voltage (Max)	300 V
Output Current Ripple (Max)	4 %
Constant Voltage (CV)	False
Line Frequency	50 to 60 Hz
Open Circuit Voltage (DC) (Max)	330 V
Output Power (Min)	17 W
Power Factor 100% Load (Max)	0.9
Diagnostics	True
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Output Current (Min)	80 mA
Inrush Current Width to 50% of Peak	284 µs
Default output current	80 mA
Output Voltage (Min)	100 V
Number of Products on MCB (16A Type-C) (Max)	23 piece/unit
Maximum Efficiency at Full Load	92.8 %
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Constant Current (CC)	True
Output Current (Max)	350 mA
Inrush Current Peak (Max)	20 A
Output Current Tolerance (Max)	5 %
Output Power (Max)	60 W
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Mains voltage operation (DC)	168-275 V
Input current (AC)	0.3 mA

Approval and Application

Protection class IEC	Safety class I
Ingress protection code	IP20  [Finger-protected]
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Isolation Classification	No
Over Power Protection	Protected
Output Current Set Options	LEDset
Open Circuit Protection	Protected
Short Circuit Protection	Protected
Corridor Mode	False

Product Data

EAN/UPC - Case	8719514253902
Numerator - Quantity Per Pack	1
Full product name	Xitanium 60W 0.08-0.35A 300V 21 230V
Full product code	871951425389600
Order code	929001694406
Material number (12NC)	929001694406
Order product name	Xitanium 60W 0.08-0.35A 300V 21 230V
Numerator - Packs per outer box	24

Controls and Dimming

DynaDimmer	No
D4i compliant	No
Constant light output	No
Dimmable	No

General Information

Nominal lifetime	100,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Overall length	280 mm
Overall width	30 mm
Housing	Office 280x30x21 4p4p_upper
Dimensions (Height x Width x Depth)	21 x 30 x 280 mm
Product Length	280 mm
Overall height	21 mm

Wiring

Output Wire Cross Section (Min)	0.5 mm²
Input Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	1.5 m
Output wire strip length	8 mm to 9 mm mm
Output Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Max)	1.5 mm²
Connector Type Input Terminals	Wago 744
Input wire strip length	8 mm to 9 mm mm
Hot Wiring	no
Input Wire Gauge	16-20
Connector Type Output Terminals	Wago 744

Temperature

T-Case Maximum (Max)	75 °C
Maximum case temperature (in case of failure)	110 °C
T-Case Lifetime (Max)	65 °C
Ambient temperature range	-25 °C to 50 °C
Module Temperature Protection	no

System characteristics

Central DC Operation	Yes
YellowDot ready	No
