| Input current (DC) | 0
|
| Energy Metering | No
|
| Mains voltage performance (DC) | 186-250
V
|
| Output Voltage (Max) | 85
V
|
| Output Current Ripple (Max) | 30
%
|
| Total Harmonic Distortion IEC (Max) | 20
%
|
| Constant Voltage (CV) | False
|
| Open Circuit Voltage (DC) (Max) | 300
V
|
| Line Frequency | 50 to 60
Hz
|
| Output Power (Min) | 17.5
W
|
| Diagnostics | True
|
| Protection Level Up (L-N) at 5 kA (Max) | 1
kV
|
| Output Current (Min) | 350
mA
|
| Output Voltage (Min) | 50
V
|
| Power Factor 100% Load (Max) | 0.9
|
| Number of Products on MCB (16A Type-C) (Max) | 60
piece/unit
|
| Protection Level Up (LN-Earth) at 5 kA (Max) | 2
kV
|
| Maximum Efficiency at Full Load | 88
%
|
| Constant Current (CC) | True
|
| Default output current | 350
mA
|
| Output Current (Max) | 350
mA
|
| Inrush Current Peak (Max) | 5.16
A
|
| Output Power (Max) | 30
W
|
| Output Current Tolerance (Max) | 8
%
|
| Input Frequency | 50 to 60
Hz
|
| Power Factor (Fraction) | 0.9
|
| Mains voltage operation (DC) | 168-275
V
|
| Inrush Current Width to 50% of Peak | 47
µs
|
| Input current (AC) | 0.15
mA
|
| Ingress protection code | IP20
[Finger-protected] |
|||||
| Protection class IEC | Safety class I
|
|||||
| Short Circuit Protection | Protected
|
|||||
| Output Current Set Options | No
|
|||||
| Approval Marks | CCC certificate
|
CE marking
|
ENEC certificate
|
RCM compliance
|
REACH compliance
|
RoHS compliance
|
| Over Power Protection | Protected
|
|||||
| Isolation Classification | No
|
|||||
| Open Circuit Protection | Protected
|
|||||
| Corridor Mode | False
|
| EAN/UPC - Case | 6922341904769
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 692234190475200
|
| Order code | 929002106680
|

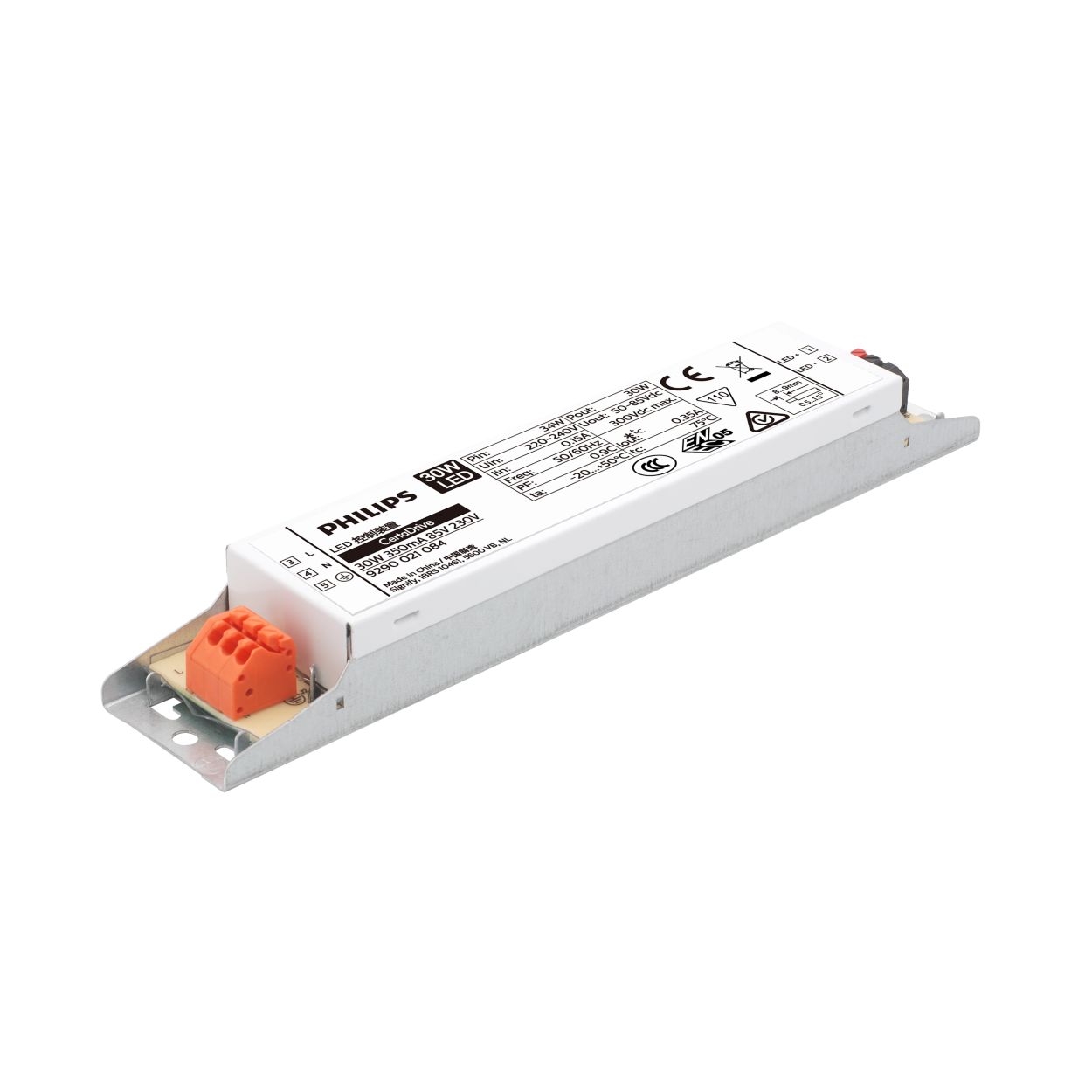

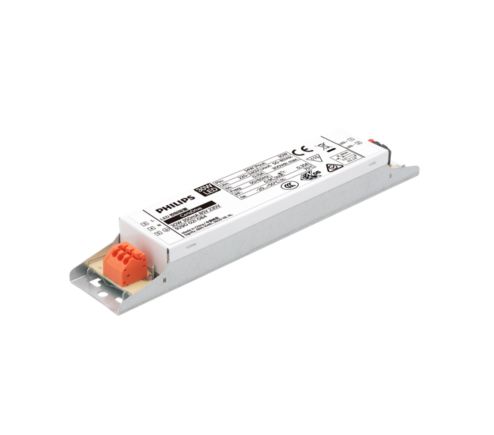

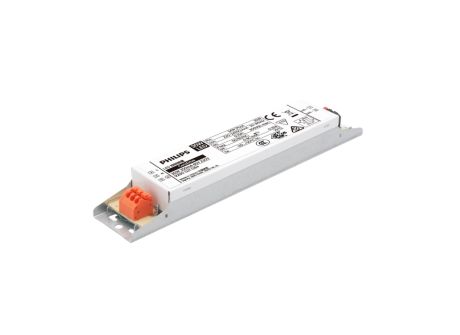

| Full product name | CERTADRIVE 30W 0.35A 85V 230V
|
| Material number (12NC) | 929002106680
|
| Order product name | CERTADRIVE 30W 0.35A 85V 230V
|
| Numerator - Packs per outer box | 50
|
| DynaDimmer | No
|
| D4i compliant | No
|
| Constant light output | No
|
| Dimmable | No
|
| Nominal lifetime | 50,000
hour(s)
|
| Lighting Technology | LED
|
| Overall length | 168
mm
|
| Overall width | 30.2
mm
|
| Housing | CertaDrive 168mm
|
| Dimensions (Height x Width x Depth) | 21 x 30 x 168 mm
|
| Product Length | 168
mm
|
| Overall height | 21
mm
|
| Output Wire Cross Section (Min) | 0.5
mm²
|
| Input Wire Cross Section (Min) | 0.5
mm²
|
| Cable Length From Device to Lamp | 4
m
|
| Connector Type Input Terminals | 250 manual connector
[Suitable for manual wiring and easy release button] |
| Output Wire Cross Section (Max) | 1.5
mm²
|
| Input Wire Cross Section (Max) | 1.5
mm²
|
| Output wire strip length | 8.5 mm to 9.5 mm
mm
|
| Input wire strip length | 8.5 mm to 9.5 mm
mm
|
| Hot Wiring | no
|
| Input Wire Gauge | 0
|
| Connector Type Output Terminals | 250 manual connector
[Suitable for manual wiring and easy release button] |
| T-Case Maximum (Max) | 75
°C
|
| Maximum case temperature (in case of failure) | 110
°C
|
| T-Case Lifetime (Max) | 65
°C
|
| Ambient temperature range | -20 °C to 50 °C
|
| Module Temperature Protection | no
|
| YellowDot ready | No
|
| Central DC Operation | Yes
|
