Ledinaire batten BN045C

Philips Ledinaire batten – For your everyday lighting jobs, easy to choose from the shelve and to install.

Popular downloads

View all downloads

Where to buy

Products

Product				Compare
Ledinaire batten BN045C, 29 W, L1500 mm, 3500 lm, 4000 K, IP20, TW1-ready BN045C 35S/840 PSU L1500 911401806585 L1500 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 3500 lm, 29 W, 121 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	121	3500	4000	Product leaflet PDF Where to buy
Ledinaire batten BN045C, 36 W, L1800 mm, 4300 lm, 4000 K, IP20, TW1-ready BN045C 43S/840 PSU L1800 911401806785 L1800 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 4300 lm, 36 W, 119 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	119	4300	4000	Product leaflet PDF Where to buy
Ledinaire batten BN045C, 50 W, L1500 mm, 6000 lm, 4000 K, IP20, TW1-ready BN045C 60S/840 PSU L1500 911401806685 L1500 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 6000 lm, 50 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	120	6000	4000	Product leaflet PDF Where to buy
Ledinaire batten BN045C, 65 W, L1800 mm, 7800 lm, 4000 K, IP20, TW1-ready BN045C 78S/840 PSU L1800 911401806885 L1800 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 7800 lm, 65 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	120	7800	4000	Product leaflet PDF Where to buy
Ledinaire batten BN045C, 21 W, L1200 mm, 2500 lm, 4000 K, IP20, TW1-ready BN045C 25S/840 PSU L1200 911401806385 L1200 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 2500 lm, 21 W, 119 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	119	2500	4000	Product leaflet PDF Where to buy
Ledinaire batten BN045C, 40 W, L1200 mm, 4800 lm, 4000 K, IP20, TW1-ready BN045C 48S/840 PSU L1200 911401806485 L1200 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), 4800 lm, 40 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM≤5, Beam angle 120°, Polycarbonate, IP20 \| Finger-protected, IK02 \| 0.2 J standard, Safety class I, Push-in connector 3-pole, Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)	120	4800	4000	Product leaflet PDF Where to buy

6 items

Description

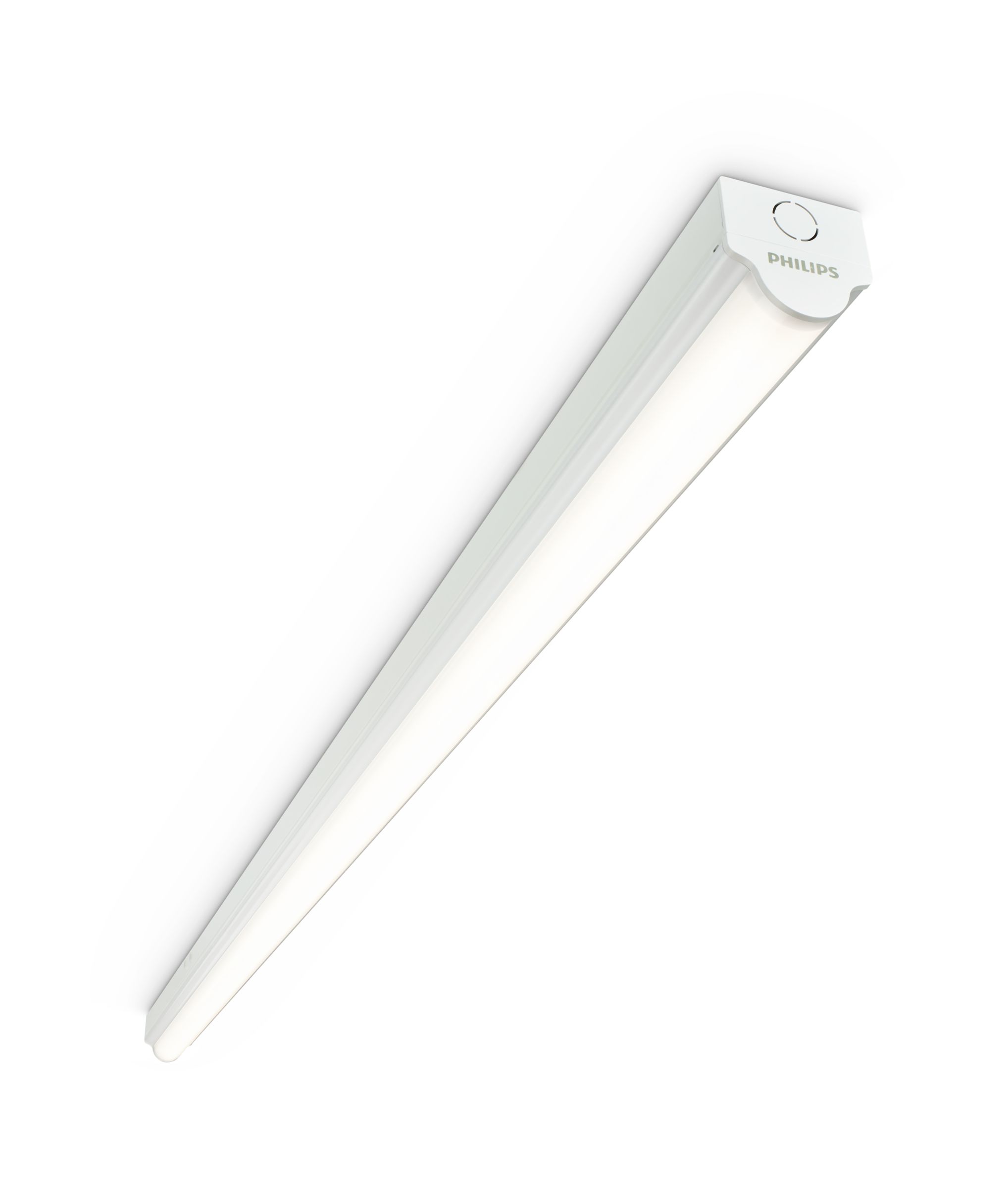

The Ledinaire batten (BN045CC) range contains a selection of off-the-shelf batten LED luminaires that comes with the high Philips quality levels at a competitive price. Reliable, energy efficient and affordable. Ledinaire enables, simple and flexible installation, including BESA fixing option and an optional emergency pack accessory.
