High quality of light, excellent uniformity and color consistency
Precisely-designed OptiSuitTM lenses and high quality LED panels with a CRI of 90+ bring out the best in every color and texture. They provide outstanding shopper eye comfort, even when installed at a low height.
More flexibility on every track
With a wide variety of beam optics, connectivity options and its slim design StoreSet linear adapts to any store concept with ease.
High efficiency and long life
With very high efficacy options (up to 160lm/W) and very long lumen maintenance (100,000 hours at L80), designers can create optimized, bespoke solutions with an attractive total cost of ownership.
Servicable and sustainable
StoreSet linear is as easy to service, maintain and repair as it is to install thanks to the Service tag QR-based identification system and fast toolless access to drivers

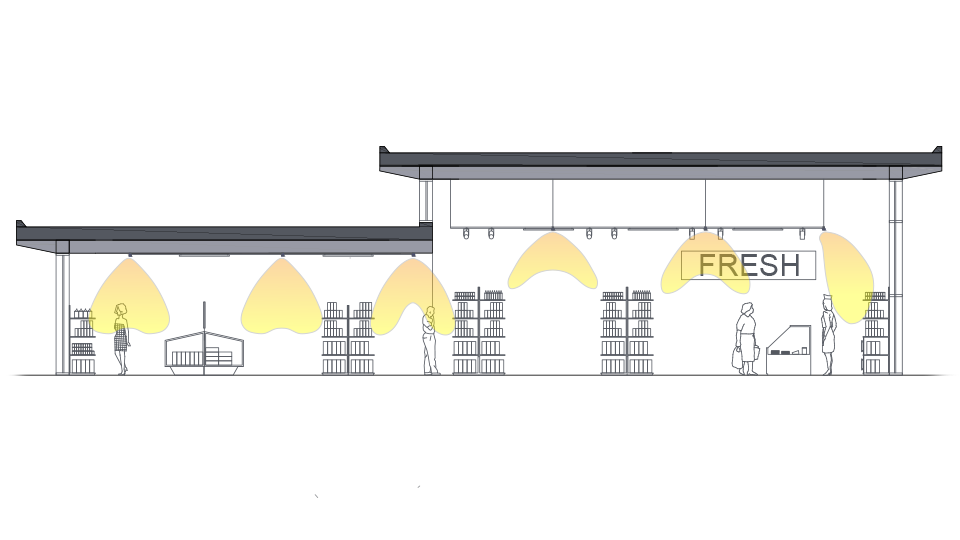

Our range of application-tailored OptiSuitTM optics is designed to suit the specific requirements and dimensions of different retail spaces. From wide beam to asymmetrical options – whatever you choose, StoreSet linear provides uniform light distribution for attractive stores and greater efficiency. Click on the info icons below to learn more about the different beam options.

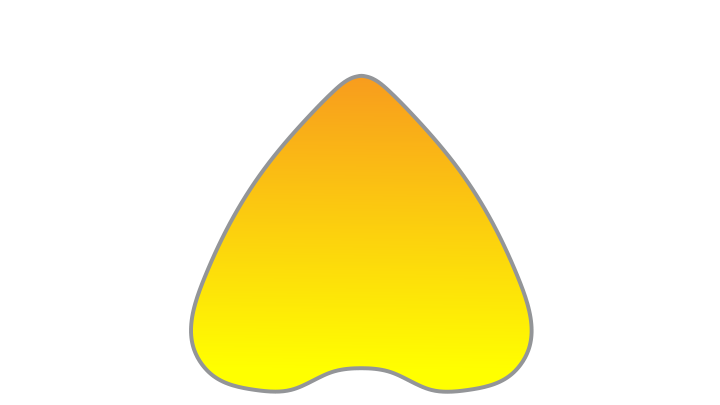

Offering maximal flexibility by providing illumination in a consistent and effective way. Ideal for general illumination of sales areas and illumination of different aisles widths and heights.
Download photometric files: Click the button below to go to the Philips product selector and choose "Light-line systems" – "StoreSet linear"

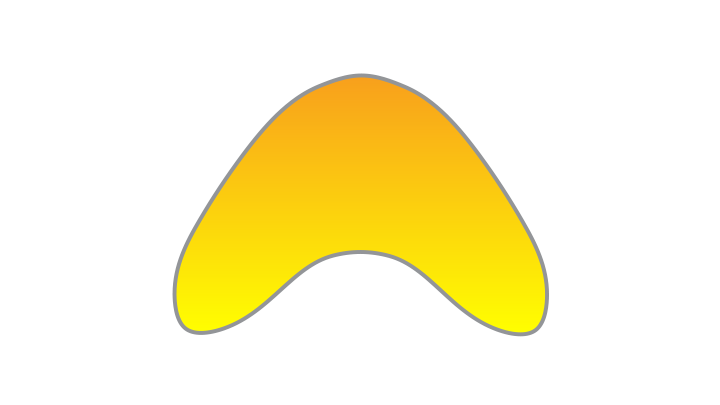

Optimized for aisle lighting and illumination of shelves to highlight products on sale.
DA25N (Double Asymmetric 25° Narrow)
For illumination of small- to medium-sized aisles and strong accentuation of shelves.
Tipp: Wide beam options provide slightly more light on the floor, Narrow beam option steers the light more towards the shelves.
Download photometric files: Click the button below to go to the Philips product selector and choose "Light-line systems" – "StoreSet linear"
Optimized for aisle lighting and illumination of shelves to highlight products on sale.
DA25W (Double Asymmetric 25° Wide)
For illumination of small- to medium-sized aisles, and accentuation of shelves.
DA35W (Double Asymmetric 35° Wide)
For illumination of medium- sized to wide aisles, and accentuation of shelves.
Tipp: Wide beam options provide slightly more light on the floor, Narrow beam option steers the light more towards the shelves.
Download photometric files: Click the button below to go to the Philips product selector and choose "Light-line systems" – "StoreSet linear"
Optimized for aisle lighting and illumination of shelves to highlight products on sale.
DA45 (Double Asymmetric 45°)
For illumination of very wide aisles or open areas.
Download photometric files: Click the button below to go to the Philips product selector and choose "Light-line systems" – "StoreSet linear"

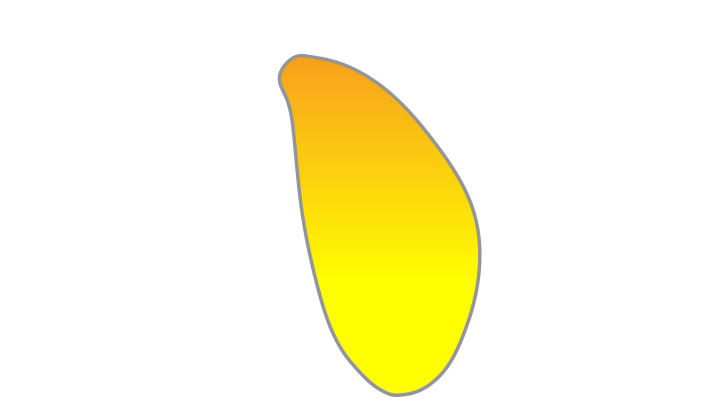

Periphery lighting to illuminate walls and banners, providing a more spacious feeling within the store.
Download photometric files: Click the button below to go to the Philips product selector and choose "Light-line systems" – "StoreSet linear"
The new benchmark in retail, delivering better white perception , balanced color saturation but with minimal compromise on energy savings.

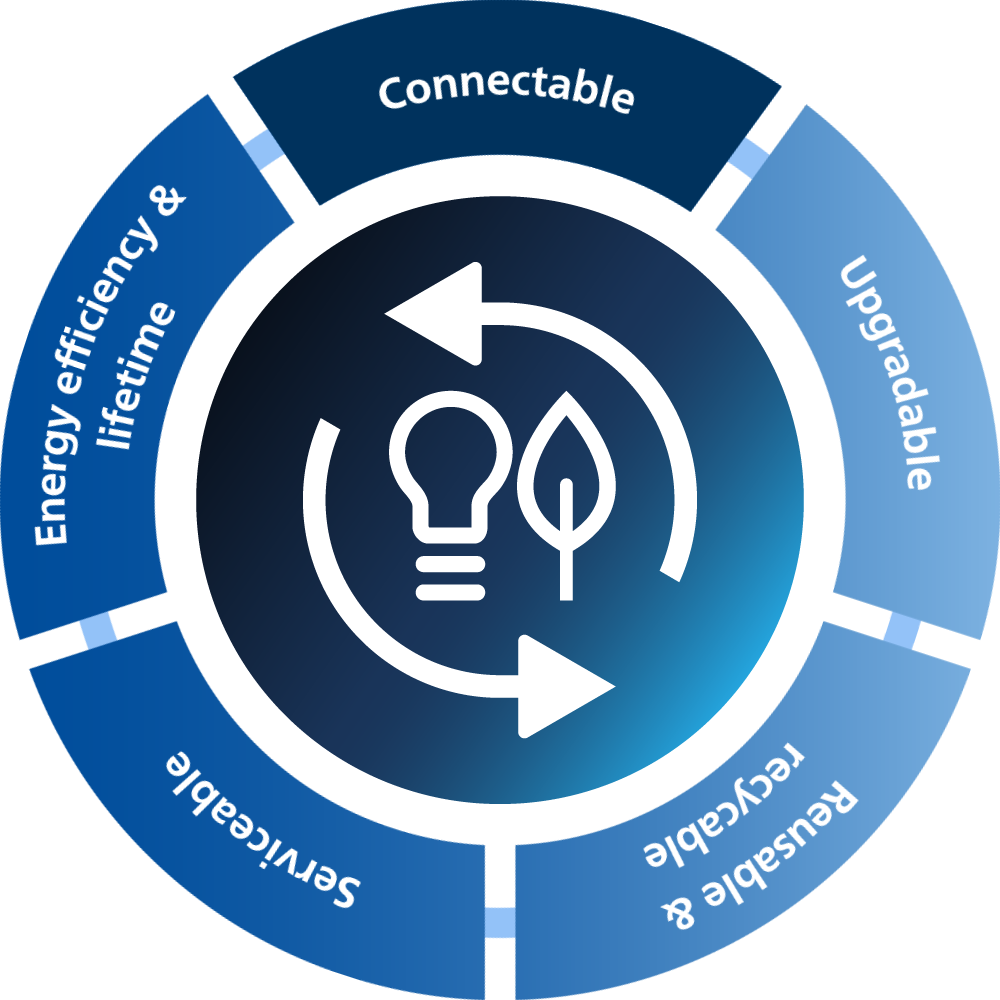

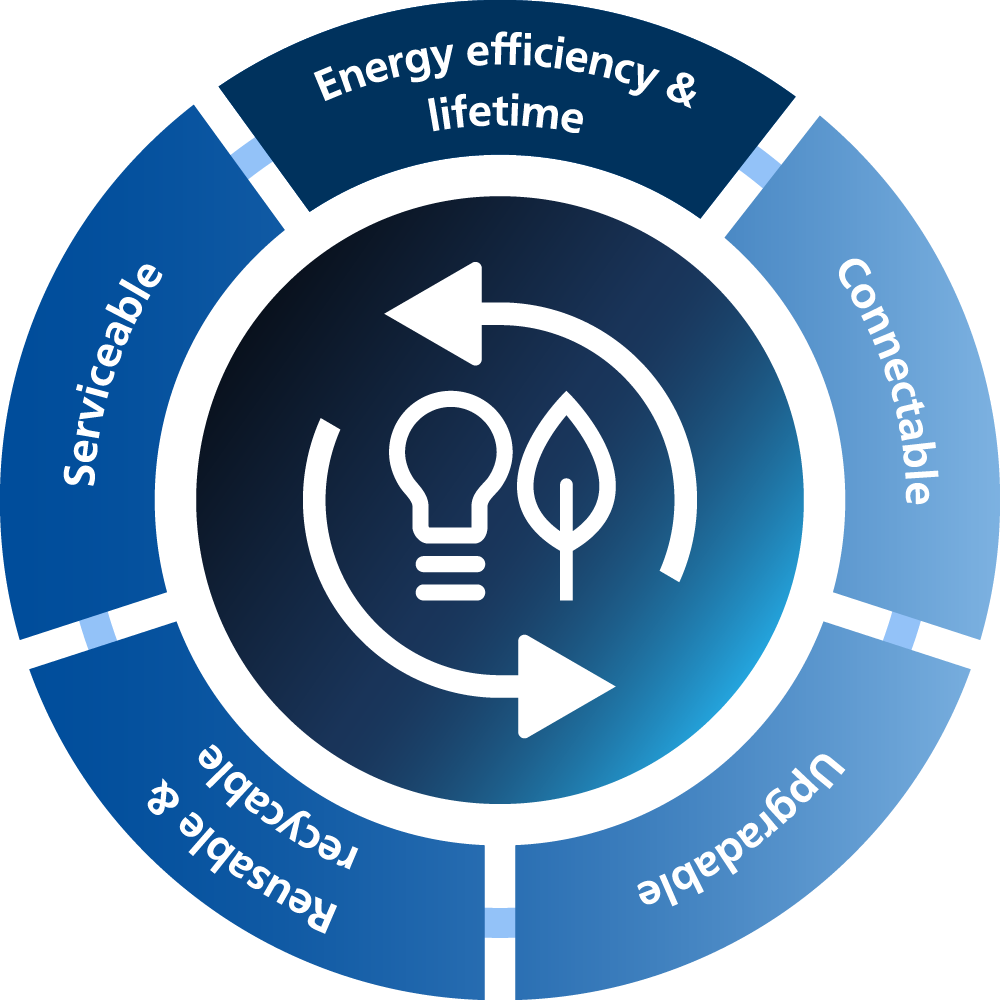

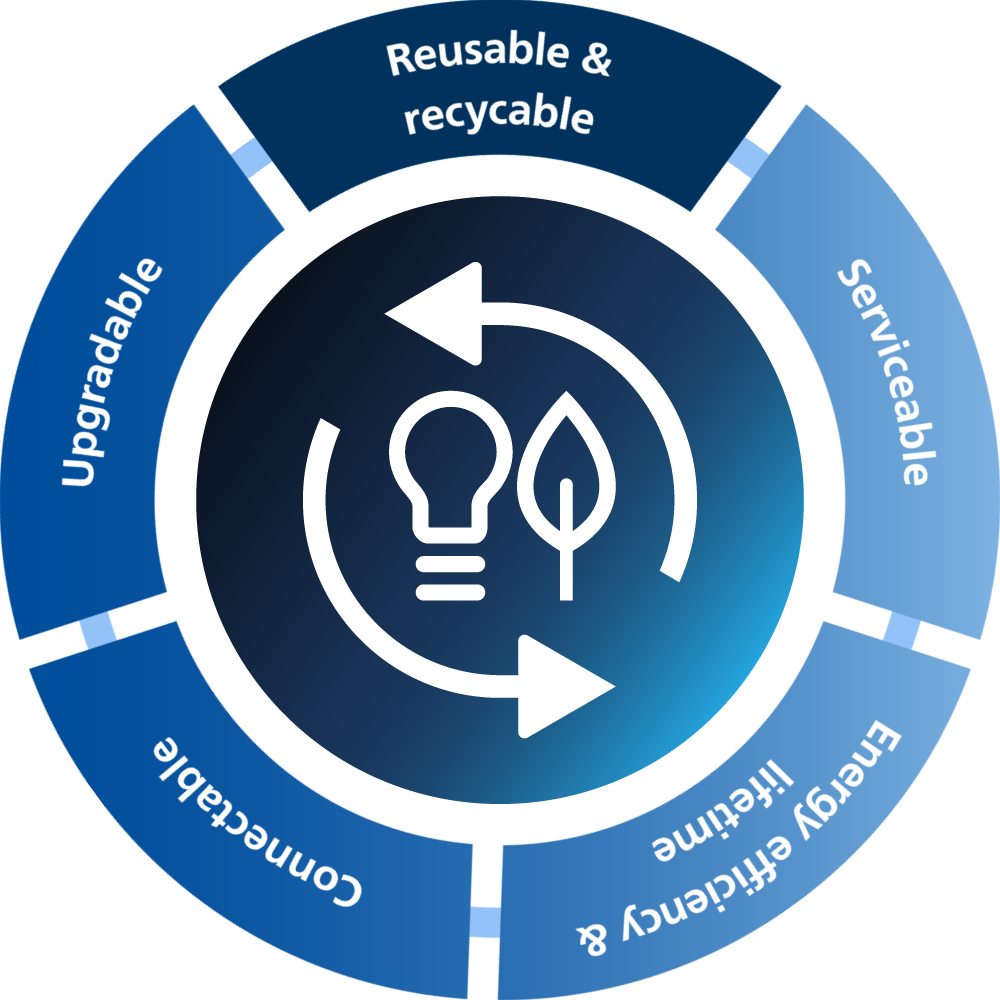

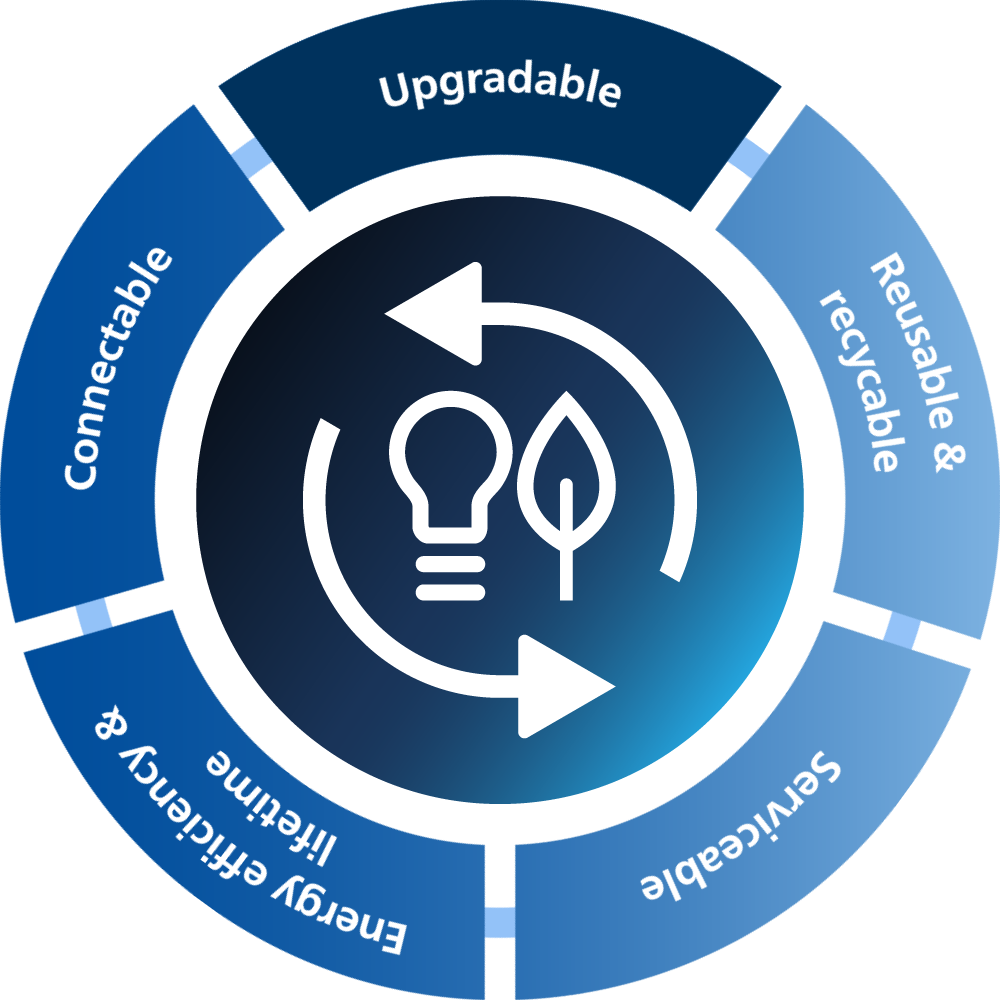

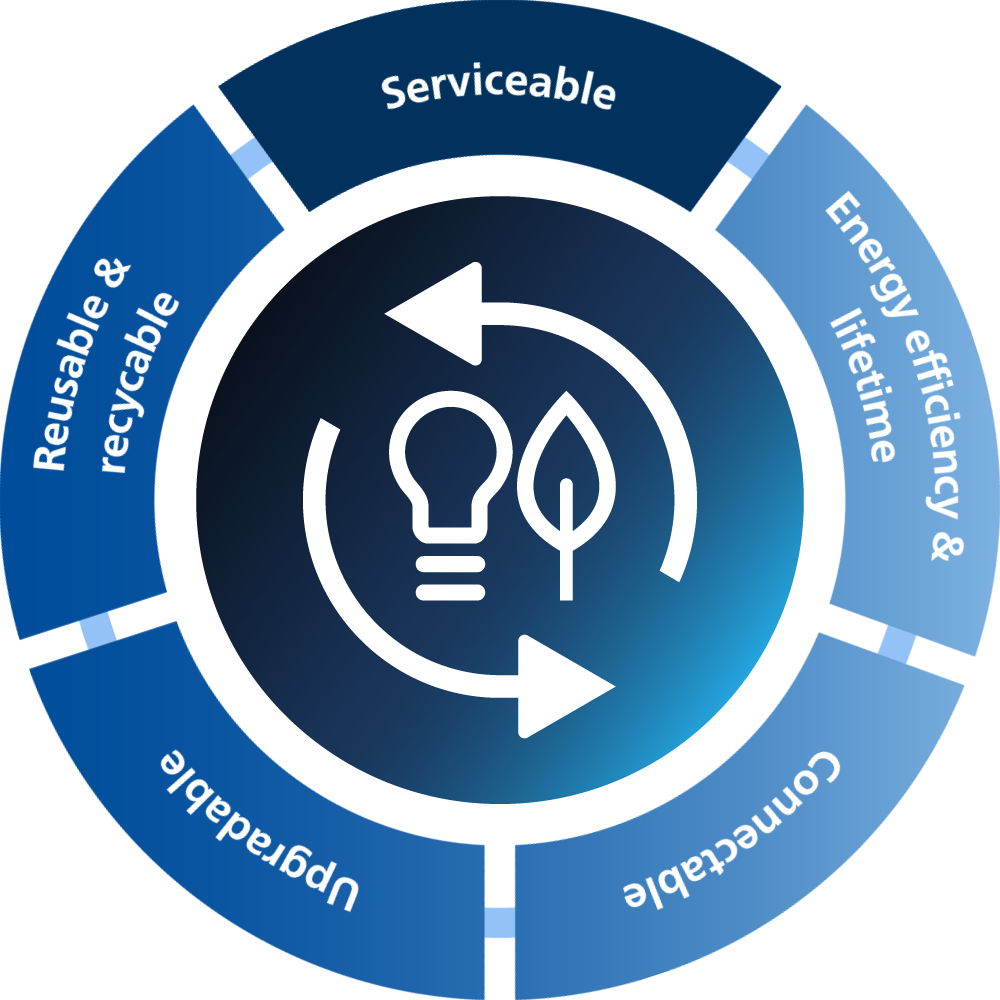

It meets the 5 vital criteria for a Lighting for Circularity product.
Reach out to your local contact center for questions and inquiries.
