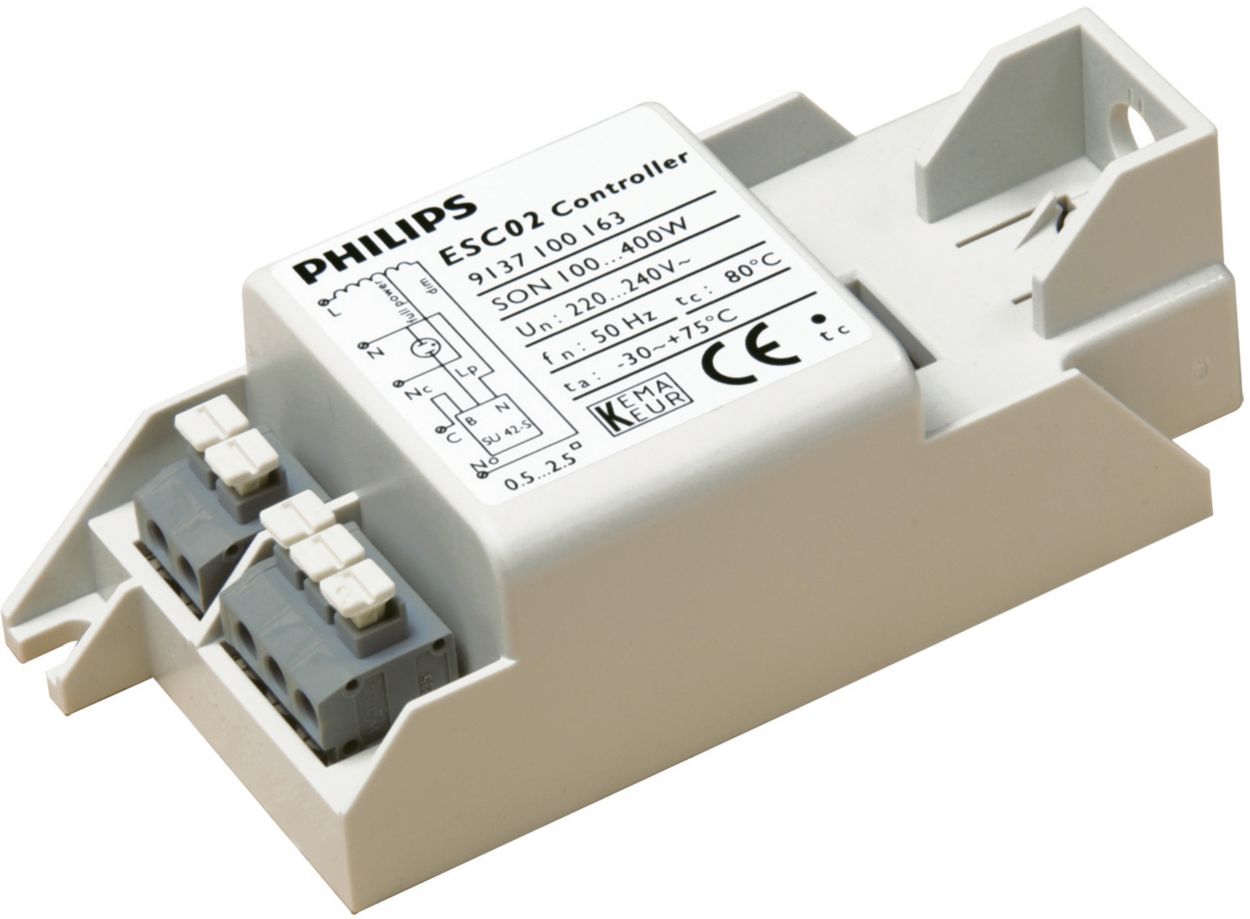

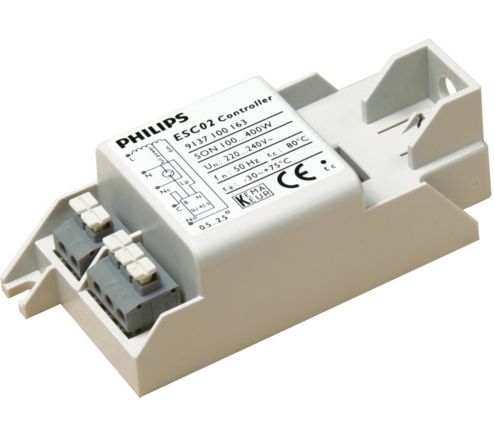

  • Magnetic dimmable controller

    ESC 02

    Philips China Investment ESC 02

    Downloads

    Leaflet
    Size:720.0 kB

    See all downloads

Specifications Show all

General Information
Application Code
02
Blackout Resistance Function
No
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Losses (Nom)
1 W
Wiring
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
Push
Temperature
T-Ambient (Max)
75 °C
T-Ambient (Min)
-30 °C
T-Case Maximum (Max)
80 °C
Controls and Dimming
First Full Power Time Period Option
4/5/6/7 hours
Dimming Period Option
4/5/6/7 hours
Mechanical and Housing
Housing
PC
Approval and Application
Approval Marks
CE marking
Product Data
Full product code
697013372899400
Order product name
ESC 02
EAN/UPC - Product
6970133728994
Order code
913710016313
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
20
Material Nr. (12NC)
913710016313
Net Weight (Piece)
0.060 kg
Installation Diagrams
ESC 02
ESC 02
