EB-T Electronic ballasts for TL-D lamps (India)

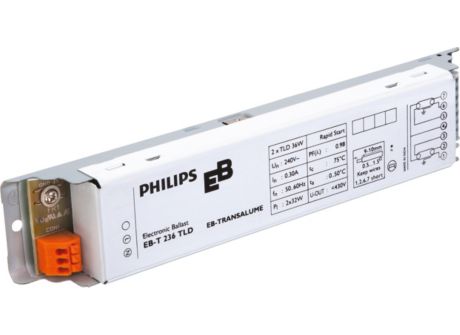

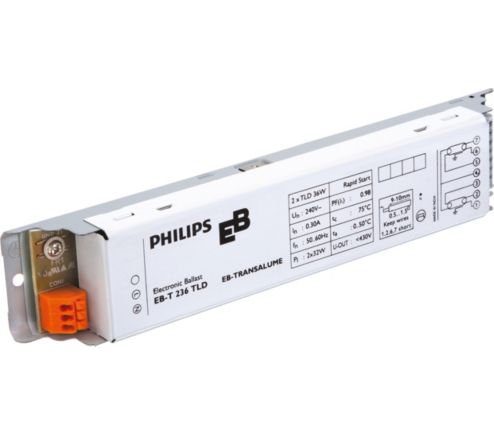

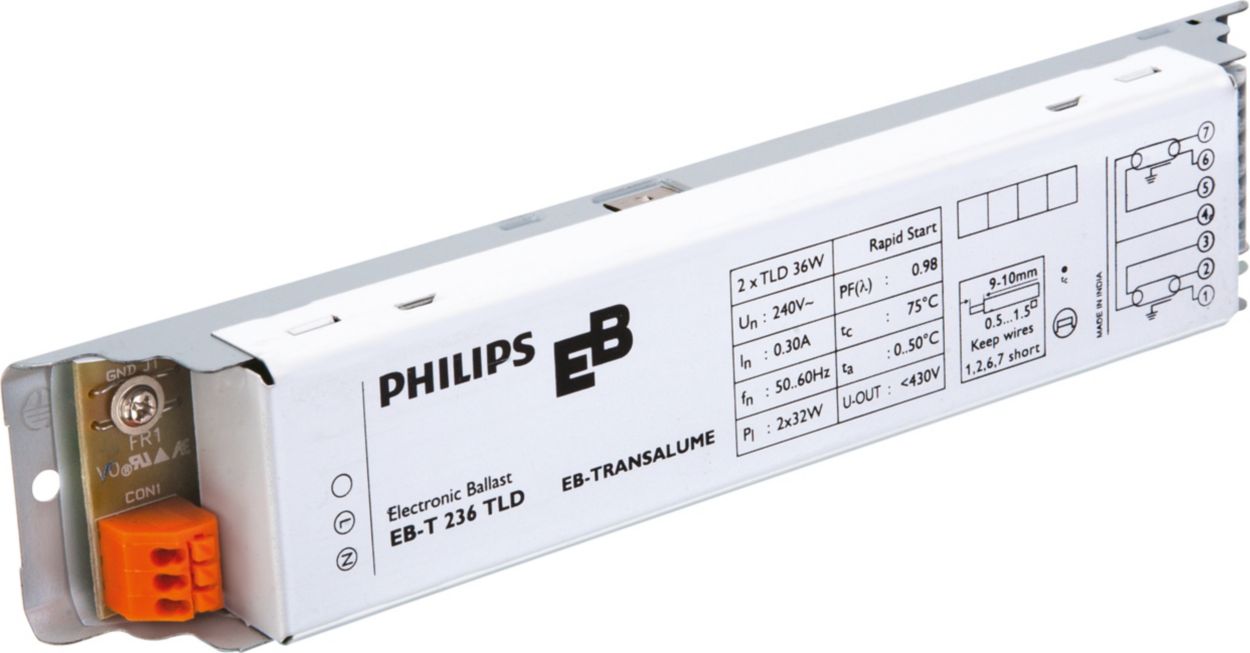

EBT 236 TLD

  • EB-T electronic ballasts for TL-D lamps

    Product information

    Downloads

    Leaflet
    Size:779.4 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Lamp Type
TL-D
Number Of Lamps
2 piece/unit
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Min)
42 kHz
Ignition Method
Rapid Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.98
Ignition Time (Max)
0.45 s
Mains Voltage Performance (AC)
221-254V
Mains Voltage Safety (AC)
216-264V
Earth Leakage Current (Nom)
0.7 mA
Constant Wattage Deviation
Not specified
Power Losses (Nom)
8 W
Wiring
Connector Type Input Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable Capacity Output Wires Mutual (Nom)
150 pF
Connector Type Output Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire Striplength
9.0-10.0 mm
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Nom)
75 pF
System characteristics
Rated Ballast-Lamp Power
36 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
0 °C
T-Storage (Max)
85 °C
T-Storage (Min)
-40 °C
T-Case Maximum (Max)
75 °C
T-Ignition (Min)
0 °C
Emergency Operation
Battery Voltage Lamp Ignition
198-254 V
Battery Voltage Lamp Operation
176-254
Approval and Application
Energy Efficiency Index
A3
EMI 9 kHz ... 30 MHz
EN 55015 edition 7.1
EMI 30 MHz ... 1000 MHz
EN 55022
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks
CE marking
S Mark
Temperature Marking
Not specified
Hum And Noise Level
Inaudible
Product Data
Full product code
871150099640400
Order product name
EBT 236 TLD
EAN/UPC - Product
8711500996404
Order code
913702244912
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
913702244912
Net Weight (Piece)
0.205 kg
