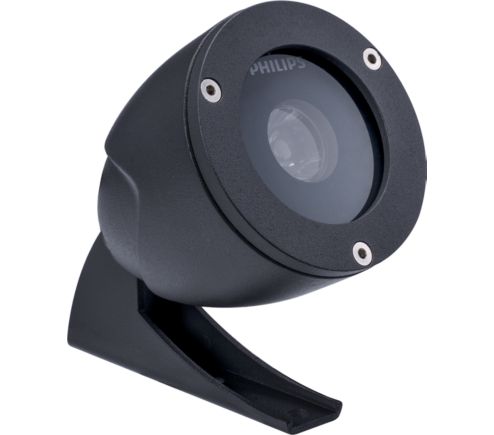

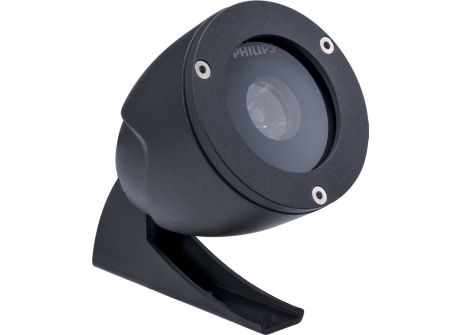

BGP312 1LED 2700K NB

Specifications Show all

General information

Light source color	827 warm white
Light source replaceable	No
Driver/power unit/transformer	Electronic transformer
Driver included	No
Optical cover/lens type	Glass bowl/cover
Luminaire light beam spread	10°
Control interface	-
Connection	Flying leads/wires
Cable	Cable without plug 2-pole
Protection class IEC	Safety class III
CE mark	-
Warranty period	3 years
Optic type outdoor	Narrow beam angle 10°
Constant light output	No
EU RoHS compliant	Yes
Light source engine type	LED

Light technical

Standard tilt angle posttop	-
Standard tilt angle side entry	-

Operating and electrical

Input Voltage	24 DC V
Input Frequency	45 to 66 Hz
Inrush current	0.5 A
Inrush time	10 ms
Power Factor (Min)	0.97

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum die cast
Reflector material	Glass
Optical cover/lens material	Glass
Mounting device	Allen screw fixation
Optical cover/lens shape	Conical
Optical cover/lens finish	Textured
Overall length	95.8 mm
Overall height	69.4 mm
Overall diameter	65.5 mm
Color	Dark gray
Dimensions (Height x Width x Depth)	69 x NaN x 96 mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	120 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	40 lm/W
Init. Corr. Color Temperature	2700 K
Init. Color Rendering Index	>75
Initial chromaticity	SDCM<5
Initial input power	3 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-20 to +45 °C

Product data

Full product code	911401710642
Order product name	BGP312 1LED 2700K NB
Order code	911401710642
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	32
Material Nr. (12NC)	911401710642
Net Weight (Piece)	0.400 kg
