| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| Power Consumption | 120
W
|
| Power Factor (Fraction) | 0.9
|
| Connection | Flying leads/wires and 2 Push-in connector 4-pole
|
| Cable | Cable 0.5 m without plug 3-pole and 2 Cables 0.5 m with connector 4-pole
|
| Flammability mark | For mounting on normally flammable surfaces
|
| Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
| Protection class IEC | Safety class I
|
| Mech. impact protection code | IK06
[1 J] |
| CE mark | CE mark
|
| EAN/UPC - Case | 8719514927223
|
| Numerator - Quantity Per Pack | 1
|

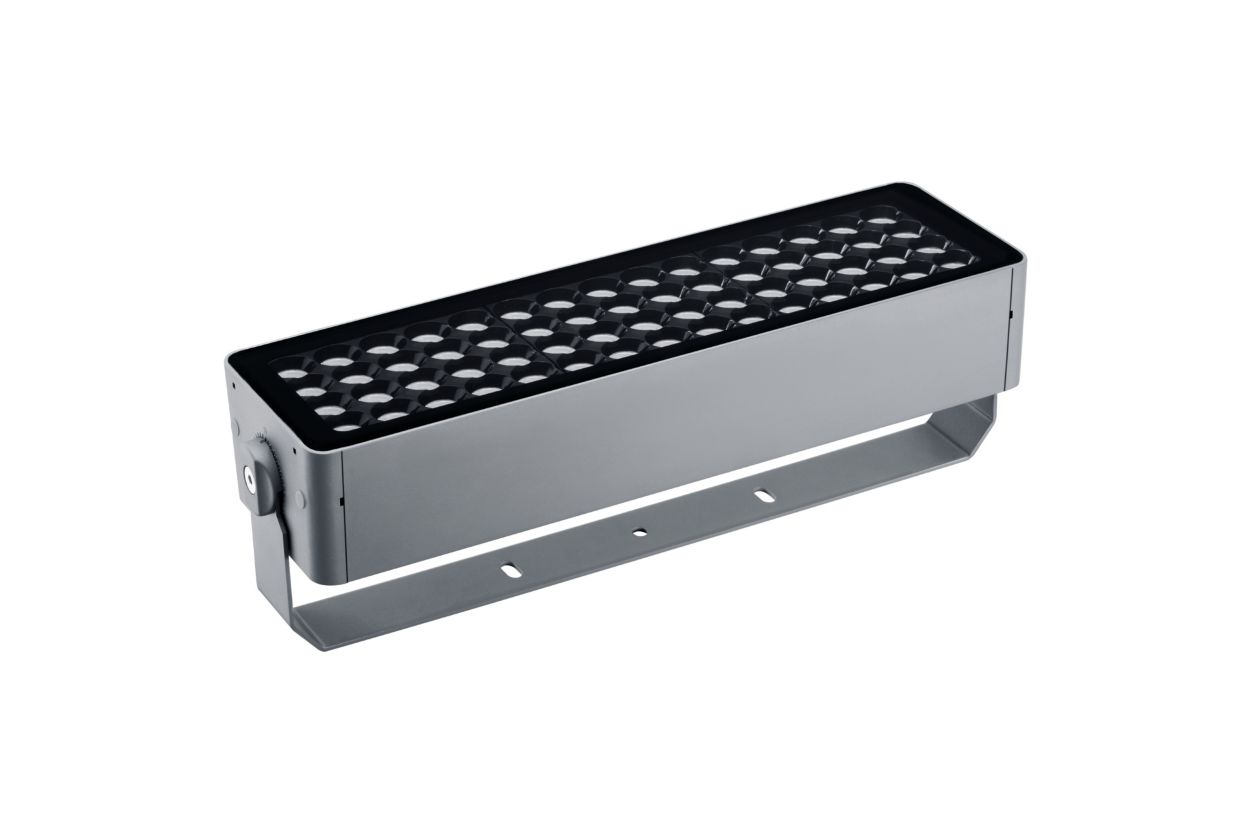

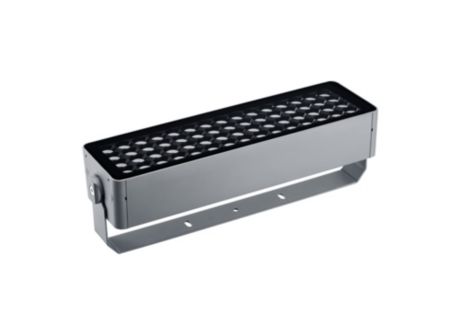

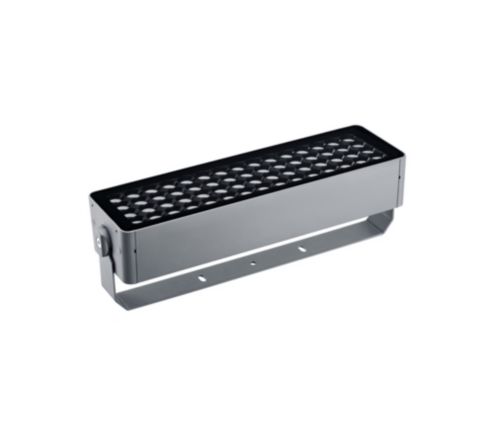

| Order product name | BVP353 60LED RGBWW 220V L50 10 DMX
|
| Order code | 911401748013
|
| Full product code | 871951492722399
|
| Full product name | BVP353 60LED RGBWW 220V L50 10 DMX
|
| Numerator - Packs per outer box | 4
|
| Material number (12NC) | 911401748013
|
| Control interface | Dynamic DMX/RDM
|
| Dimmable | Yes
|
| Lighting Technology | LED
|
| Driver included | Yes
|
| Overall height | 149
mm
|
| Overall length | 486
mm
|
| Overall width | 140
mm
|
| Effective projected area | 0.078
m²
|
| Housing Color | Dark gray
|
| Optical cover/lens material | Acrylate
|
| Dimensions (Height x Width x Depth) | 149 x 140 x 486 mm
|
| Housing Material | Aluminum extruded
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-10%
|
| Ambient temperature range | -40 to +50 °C
|
| Luminous Flux | 5,995
lumen
|
| Correlated Color Temperature (Nom) | -
|
| Luminous Efficacy (rated) (Nom) | 50
lm/W
|
| Color rendering index (CRI) | >80
|
| Optical cover/lens type | Clear glass
|
| Light source color | RGBW
|
