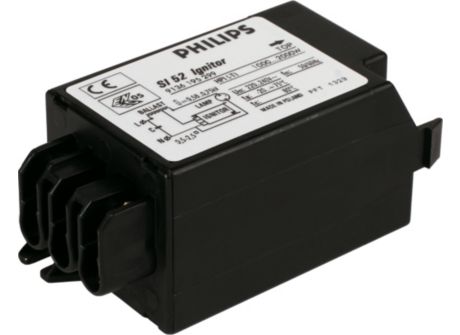

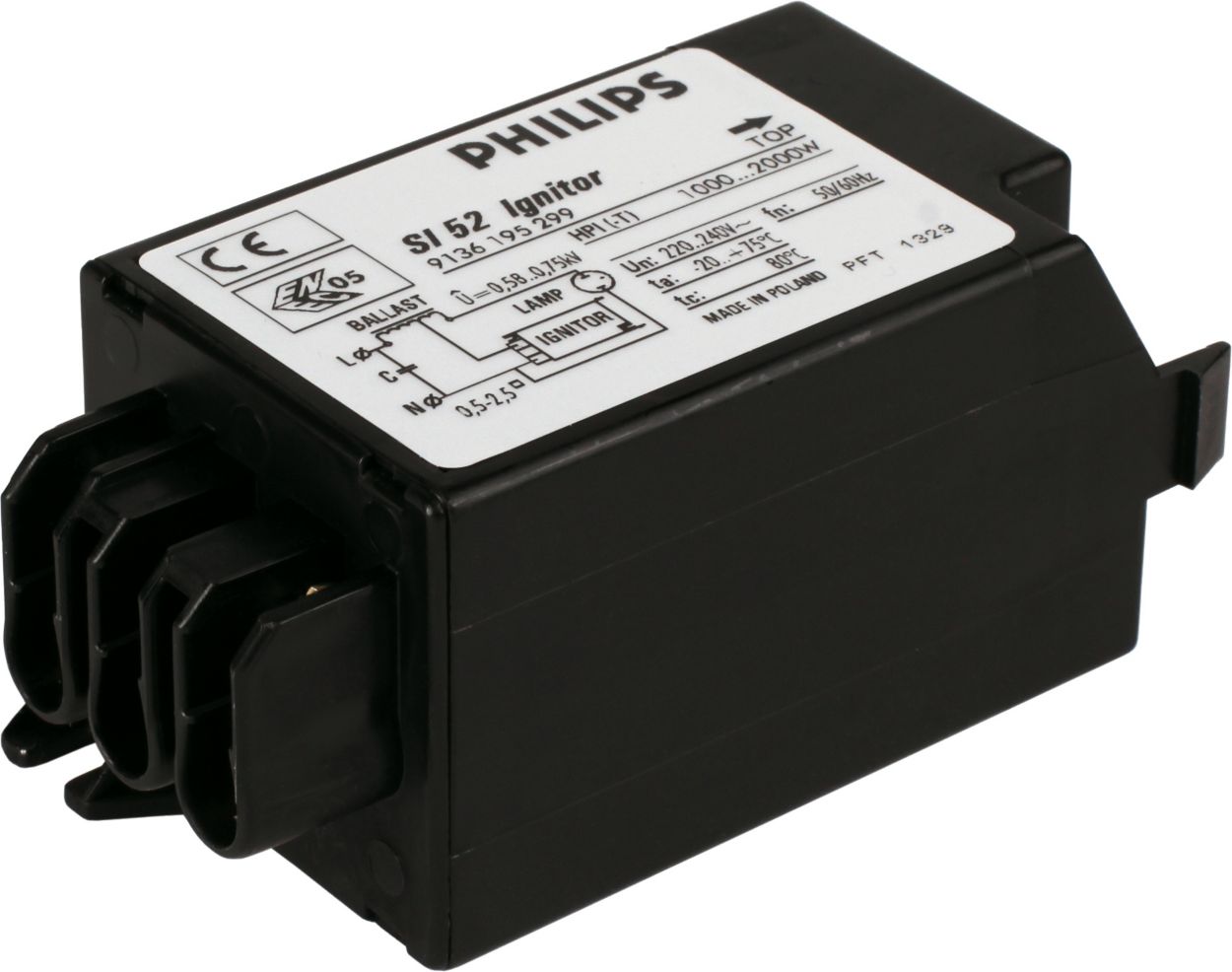

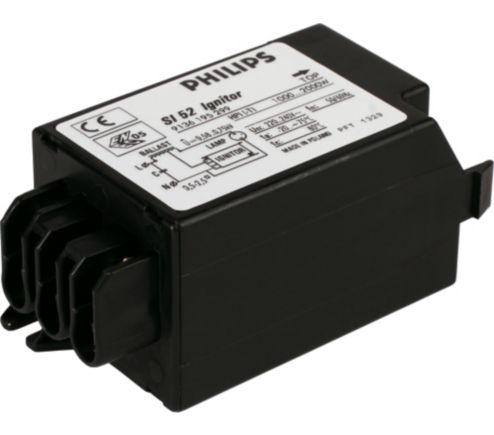

SI 52 220-240V 50/60Hz

Specifications Show all

General information

Application Code	52
Lamp Type	HPI
Number of Lamps	1 piece/unit

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Igniton Type	Parallel
Number of Ignition Pulses	1
Ignition Voltage (Max)	0.75 kV
Response Voltage	190 V
Mains Voltage Performance (AC)	-8%-+6%
Mains Voltage Safety (AC)	-10%-+10%
Power Losses (Nom)	1.0 W

Wiring

Cable Capacity Wires Device to Lamp (Nom)	35 nF
Wire Striplength	6.0 mm
Ballast Contact Wire Cross Section	0.70-2.50 mm²
Connector Type	Screw

System characteristics

Rated Ballast-Lamp Power

1000 W

Temperature

T-Ambient (Max)	75 °C
T-Ambient (Min)	-20 °C
T-Storage (Max)	80 °C
T-Storage (Min)	-25 °C
T-Case Maximum (Max)	80 °C

Mechanical and housing

Housing

SNI-85

Approval and application

Approval Marks

CE marking

ENEC certificate

Product data

Full product code	871150091554230
Order product name	SI 52 220-240V 50/60Hz
EAN/UPC - Product	8711500915542
Order code	913619529966
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	48
Material Nr. (12NC)	913619529966
Net Weight (Piece)	0.060 kg
