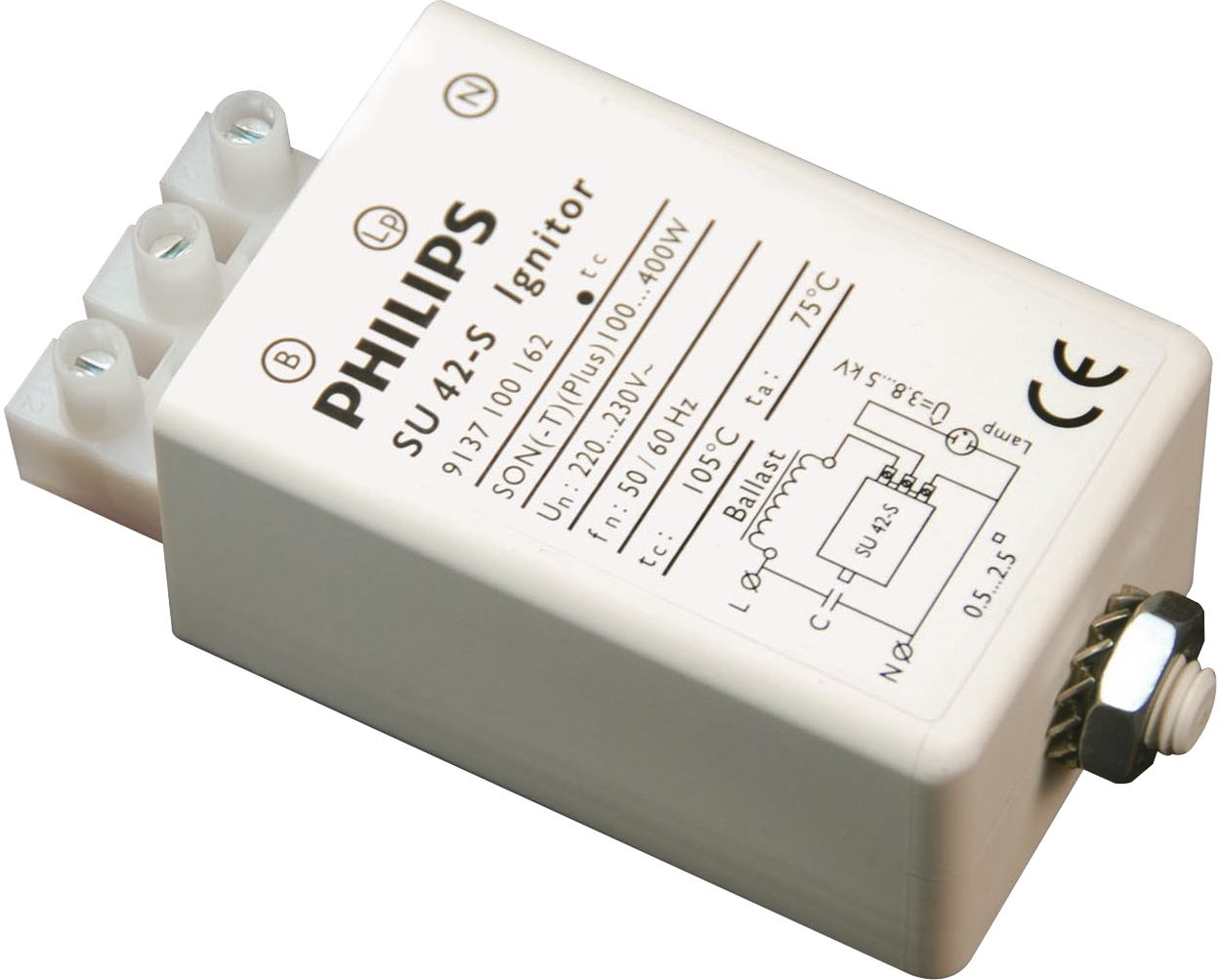

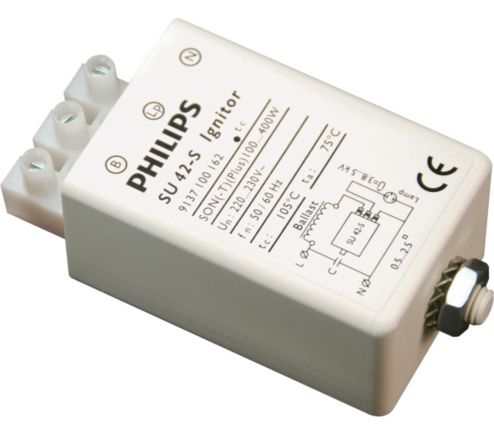

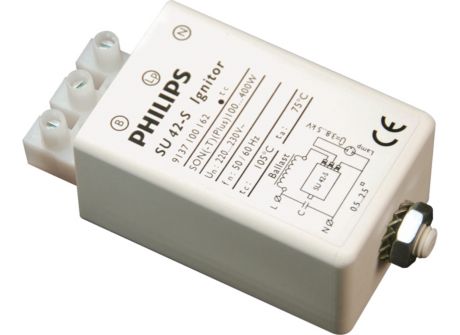

SU 42-S

Specifications Show all

General Information

Application Code

42-S

Operating and Electrical

Input Voltage	220 to 230 V
Input Frequency	50 to 60 Hz
Igniton Type	Series
Response Voltage	198 V
Mains Voltage Performance (AC)	-8%-+6%
Mains Voltage Safety (AC)	-10%-+10%
Power Losses (Nom)	3 W

Wiring

Ballast Contact Wire Cross Section	0.50-2.50 mm²
Connector Type	Screw

Temperature

T-Ambient (Nom)	75 °C
T-Case Maximum (Max)	105 °C

Mechanical and Housing

Housing

PC UL94V-2

Approval and Application

Approval Marks

CE marking

China Quality Certificate

CB Certificate

Product Data

Full product code	697013372897000
Order product name	SU 42-S
EAN/UPC - Product	6970133728970
Order code	913710016213
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	20
Material Nr. (12NC)	913710016213
Net Weight (Piece)	0.200 kg
