    • Certavision driver for CPO or CDM Elite MW lamps

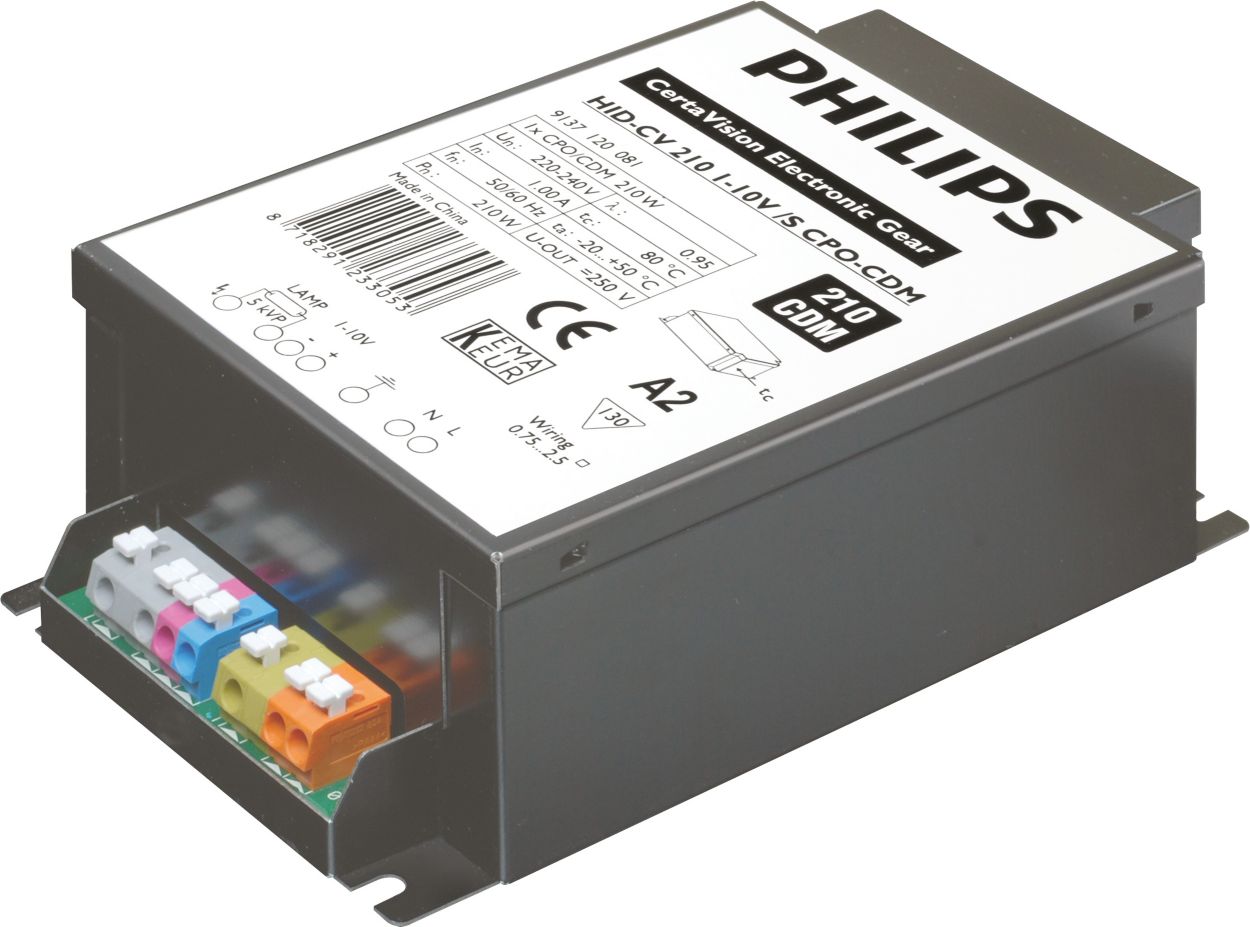

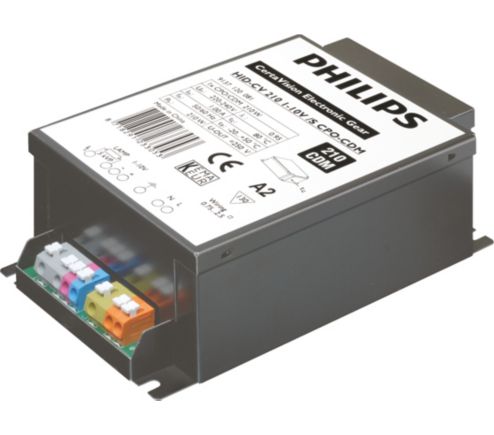

      HID-CV 210 /S CPO - CDM 220-240V 50/60HZ
      HID-CV 210 /S CPO - CDM 220-240V 50/60HZ

      HID-CV 210 /S CPO - CDM 220-240V 50/60HZ

      Order code: 913712008070

      Full Product Code: 694793917426300

      Downloads

      Leaflet
      Size:983.6 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp Type
    CDMe/CPO
    Number of Lamps
    1 piece/unit
    Suitable For Outdoor Use
    Yes
    Number of Products on MCB (16A Type-C) (Nom)
    5 piece/unit
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Minimum Mains Voltage Operation (Min)
    - V
    Power Factor 100% Load (Nom)
    0.98
    Ignition Voltage (Max)
    5 kV
    Ignition Switch-Off Time (Nom)
    20 min
    Mains Voltage Performance (AC)
    198-254V
    Mains Voltage Safety (AC)
    180-264V
    Power Factor 50% Load (Min)
    0.95
    Earth Leakage Current (Max)
    0.7 mA
    Inrush Current Width
    700 ms
    Lamp Power Tolerance
    -3%/+3%
    Inrush Current Peak (Max)
    65 A
    Wiring
    Cable Capacity Output Wires Mutual (Nom)
    120 pF
    Cable Length From Device to Lamp
    1.5 m
    Wire Striplength
    10.0-11.0 mm
    Ballast Contact Wire Cross Section
    0.50-2.50 mm²
    Connector Type
    WAGO series 804
    System characteristics
    Rated Ballast-Lamp Power
    210 W
    Rated Lamp Power on CPO-CDM
    -
    System Power on CPO-CDM
    -
    Lamp Power on CPO-CDM
    -
    Power Loss on CPO-CDM
    -
    Temperature
    T-Ambient (Max)
    50 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Case Lifetime (Nom)
    80 °C
    T-Case Switch Off (Min)
    95 °C
    Controls and Dimming
    Regulating Level Power
    60%-100%
    Control Input Protection
    Yes (Basic insulation)
    Mechanical and Housing
    Housing
    C2
    Approval and Application
    Surge Protection (Common/Differential)
    EN61547 kV
    IP Classification Luminaire
    Not Specified
    Active Temperature Protection
    Yes
    EMI 9 kHz ... 300 MHz
    CISPR 15 ed 7.1
    EMI 30 MHz ... 1000 MHz
    CISPR15 Edition 7.1
    Safety Standard
    IEC 61347-2-11
    Quality Standard
    ISO 9000:2000
    Environmental Standard
    ISO 14001
    Harmonic Current Emission Standard
    EN 61000-3-2
    Vibration Standard
    IEC 68-2-6 Fc (10-150Hz, 5G)
    Bumps Standard
    IEC 68-2-29 Eb (10G/16ms)
    Humidity Standard
    IEC 928-13
    Approval Marks
    CE marking
    China Quality Certificate
    KEUR
    Hum And Noise Level
    <37 dB(A)
    Product Data
    Full product code
    694793917426300
    Order product name
    HID-CV 210 /S CPO - CDM 220-240V 50/60HZ
    EAN/UPC - Product
    6947939174263
    Order code
    913712008070
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    913712008070
    Net Weight (Piece)
    1.400 kg
    Installation Diagrams
    HID-DVE 1-10V 210 CDMe/CPO, HID-PVE 210 CDMe/CPO, HID-PV E 35 /S CDM
    HID-DVE 1-10V 210 CDMe/CPO, HID-PVE 210 CDMe/CPO, HID-PV E 35 /S CDM
    HID-CV 210 CDMe/CPO C2
    HID-CV 210 CDMe/CPO C2
