    • PrimaVision Mini (20W, 35W & 50W) for CDM - Miniature size to enhance creativity

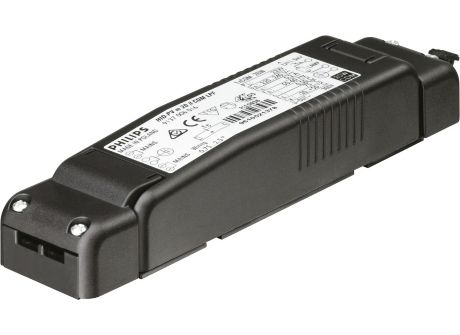

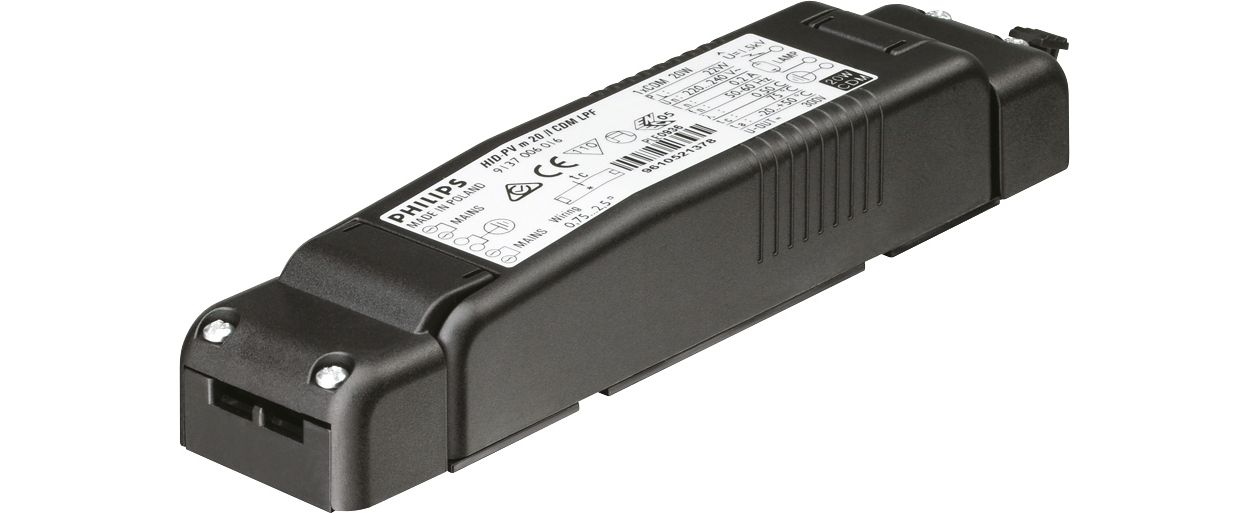

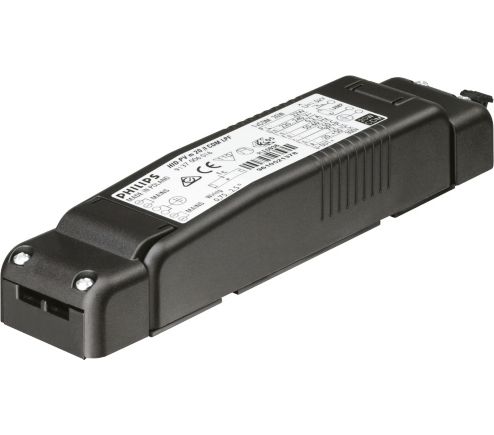

      HID-PV m PGJ5 20 /I CDM LPF 220-240V
      HID-PV m PGJ5 20 /I CDM LPF 220-240V

      HID-PV m PGJ5 20 /I CDM LPF 220-240V

      Order code: 913700601666

      Full Product Code: 871150090981730

      Downloads

      Leaflet
      Size:864.3 kB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    LPF
    Type Version
    mk1
    Lamp Type
    CDM
    Number of Lamps
    1 piece/unit
    Suitable For Outdoor Use
    No
    Number of Products on MCB (16A Type B) (Nom)
    48
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Minimum Mains Voltage Operation (Min)
    198 V
    Operating Frequency (Nom)
    0.10 kHz
    Ignition Voltage (Max)
    1.5 kV
    Ignition Voltage (Min)
    1.3 kV
    Ignition Switch-Off Time (Nom)
    25 min
    Mains Voltage Performance (AC)
    -10%-+6%
    Mains Voltage Safety (AC)
    -18%-+10%
    Earth Leakage Current (Max)
    0.25 mA
    Inrush Current Width
    0.40 ms
    Constant Wattage Deviation
    -3%/+3%
    Power Losses (Nom)
    3 W
    Inrush Current Peak (Max)
    30 A
    Wiring
    Cable Capacity Output Wires Mutual (Nom)
    200 pF
    Cable Length From Device to Lamp
    2 m
    Wire Striplength
    10.0-11.0 mm
    Ballast Contact Wire Cross Section
    0.75-2.50 mm²
    Connector Type
    Insert
    System characteristics
    Rated Ballast-Lamp Power
    20 W
    Temperature
    T-Ambient (Max)
    50 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Case Lifetime (Nom)
    65 °C
    T-Case Maximum (Max)
    75 °C
    Mechanical and Housing
    Housing
    /I
    Approval and Application
    Active Temperature Protection
    Yes
    EMI 9 kHz ... 300 MHz
    CISPR 15 ed 7.2
    Vibration Standard
    IEC68-2-6 F c
    Bumps Standard
    IEC 68-2-29 Eb
    Approval Marks
    F-Marking
    CE marking
    CB Certificate
    Hum And Noise Level
    Inaudible
    Product Data
    Full product code
    871150090981730
    Order product name
    HID-PV m PGJ5 20 /I CDM LPF 220-240V
    EAN/UPC - Product
    8711500909817
    Order code
    913700601666
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    913700601666
    Net Weight (Piece)
    0.140 kg
    Installation Diagrams
    HID-PV m 1x020/I mCDM LPF 220-240V
    HID-PV m 1x020/I mCDM LPF 220-240V
    HID-PV m 20 /GMI CDM HPF
    HID-PV m 20 /GMI CDM HPF
