    • HID-CertaVision driver

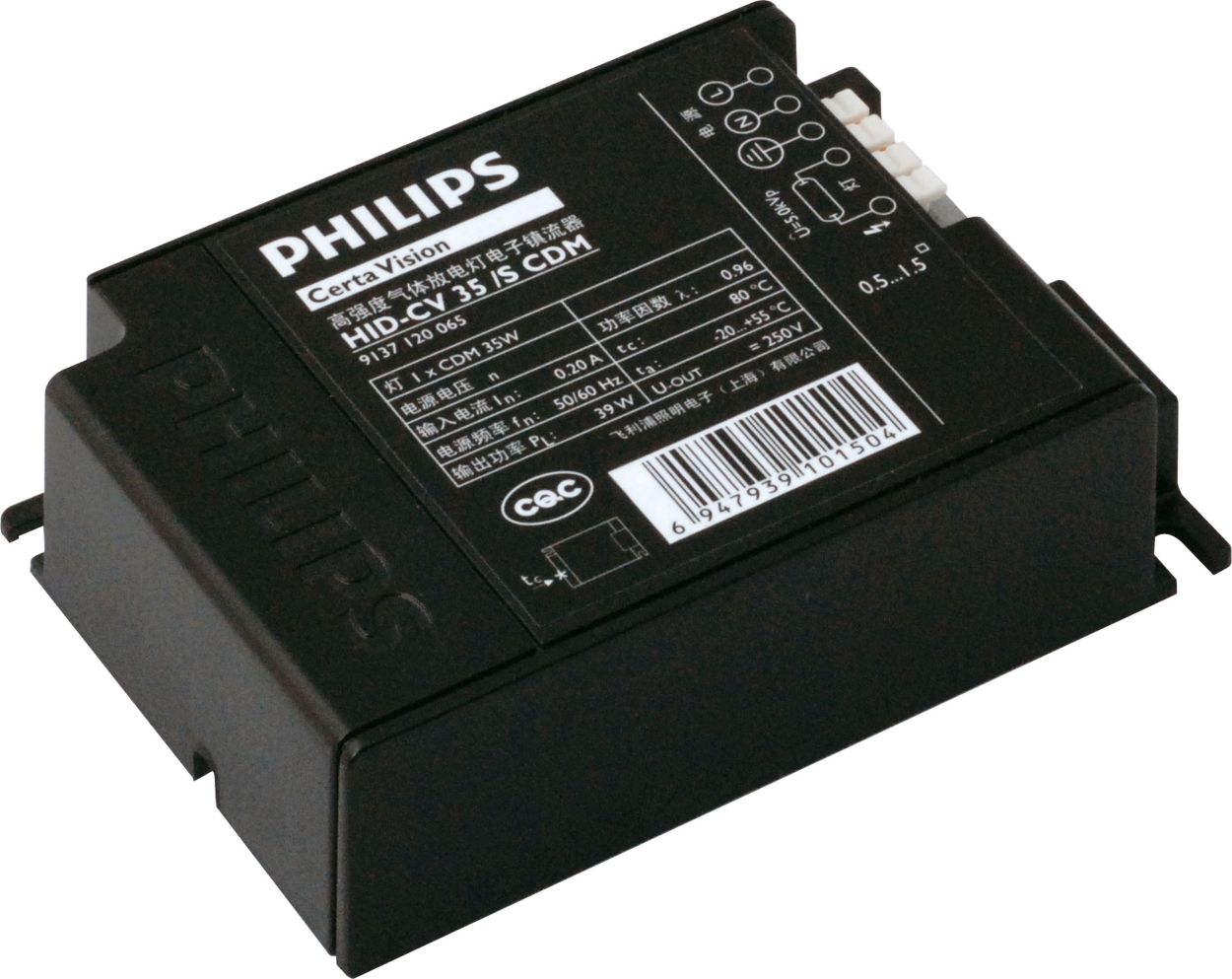

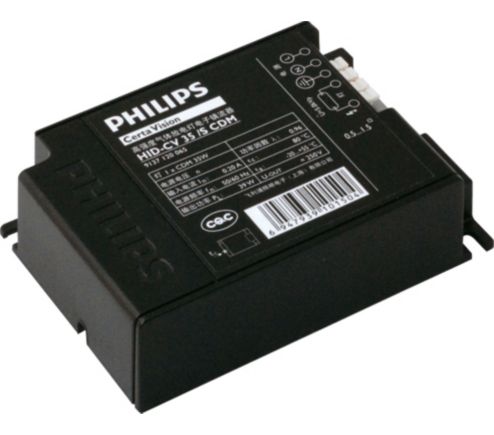

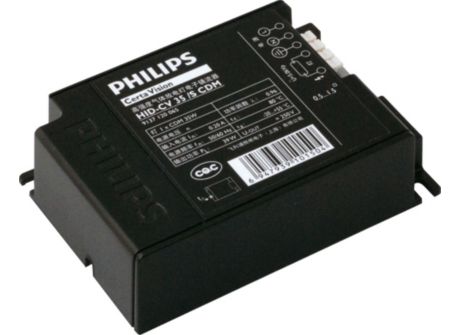

      HID-CV 35 /S CDM 220-240V
      HID-CV 35 /S CDM 220-240V

      HID-CV 35 /S CDM 220-240V

      Order code: 913712006580

      Full Product Code: 694793917416400

      Downloads

      Leaflet
      Size:1.1 MB

      See all downloads

    Specifications Show all

    General Information
    Lamp Type
    CDM
    Number of Lamps
    1 piece/unit
    Number of Products on MCB (16A Type B) (Nom)
    24
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Minimum Mains Voltage Operation (Min)
    198 V
    Power Factor 100% Load (Nom)
    0.95
    Ignition Voltage (Max)
    5.0 kV
    Ignition Voltage (Min)
    3.0 kV
    Mains Voltage Performance (AC)
    198-264V
    Mains Voltage Safety (AC)
    180-264V
    Output Peak Voltage (Max)
    5000 V
    Inrush Current Width
    0.28 ms
    Constant Wattage Deviation
    -5%/+5%
    Power Losses (Nom)
    6 W
    Inrush Current Peak (Nom)
    22.4 A
    Wiring
    Cable Capacity Output Wires Mutual (Nom)
    120 pF
    Cable Length From Device to Lamp
    2 m
    Connector Type
    Push
    System characteristics
    Rated Ballast-Lamp Power
    35 W
    Temperature
    T-Ambient (Max)
    55 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Case Lifetime (Nom)
    80 °C
    T-Case Maximum (Max)
    80 °C
    Mechanical and Housing
    Housing
    /S
    Approval and Application
    EMI 30 MHz ... 1000 MHz
    CISPR15 Edition 7.1
    Approval Marks
    CE marking
    Product Data
    Full product code
    694793917416400
    Order product name
    HID-CV 35 /S CDM 220-240V
    EAN/UPC - Product
    6947939174164
    Order code
    913712006580
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    913712006580
    Net Weight (Piece)
    0.213 kg
    Installation Diagrams
    HID-CV 35 /S CDM 220-240V
    HID-CV 35 /S CDM 220-240V
