    • Long-lasting, reliable solution

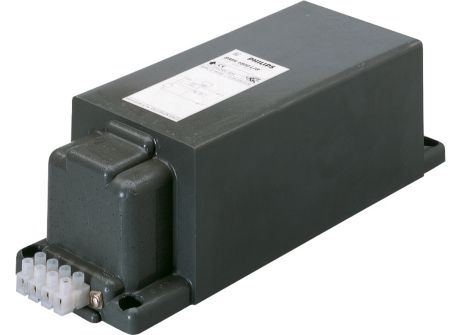

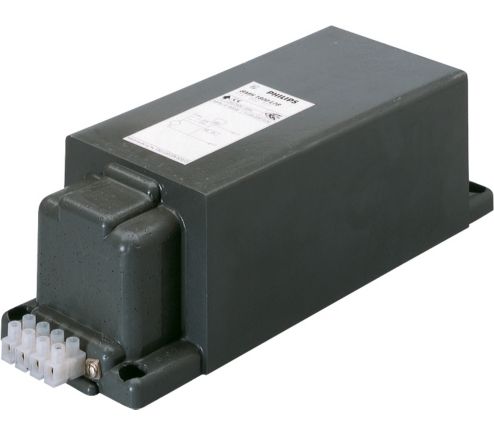

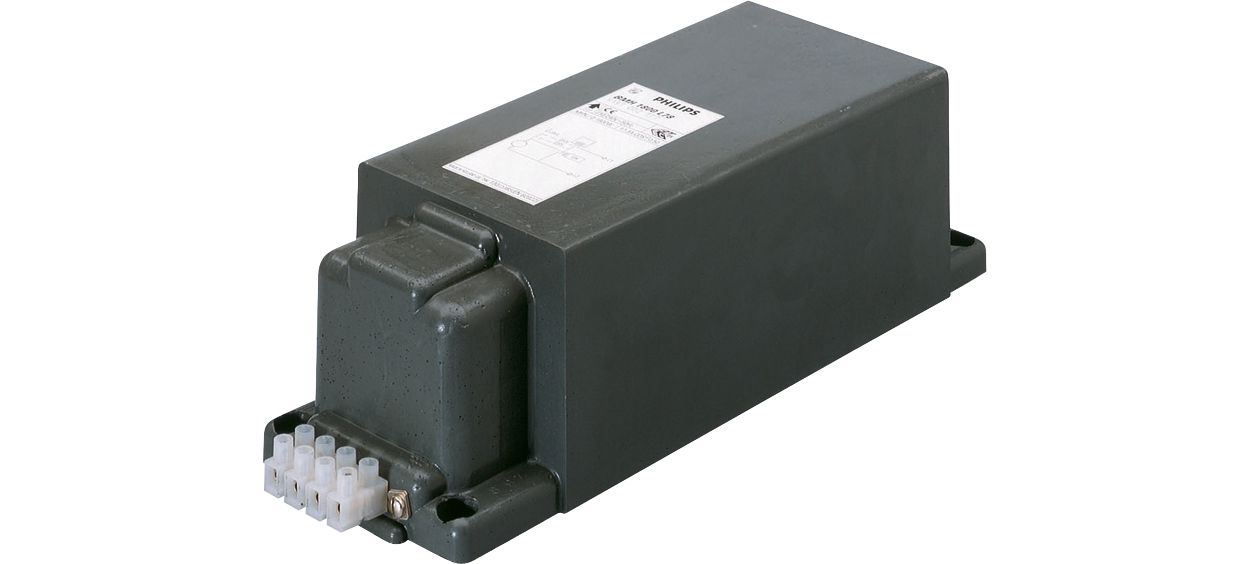

      BSN 1000 L78-A2 230/240V 50Hz HP-257
      BSN 1000 L78-A2 230/240V 50Hz HP-257

      BSN 1000 L78-A2 230/240V 50Hz HP-257

      Order code: 913700217503

      Full Product Code: 871150006236900

      Downloads

      Leaflet
      Size:691.4 kB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    L78-A2
    Design
    HP-257
    Lamp Type
    SON
    Number of Lamps
    1 piece/unit
    Operating and Electrical
    Input Voltage
    230 V (default) or 240 V
    Input Frequency
    50 Hz
    Input Voltage (Multi-Tab)
    230/240
    Power Factor 100% Load (Nom)
    0.87
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Input Current with PF Correction
    5.40 A
    Input Current without PF Correction
    10.30 A
    Power Factor without PF Compensation (Nom)
    0.50
    Power Losses (Nom)
    54.0 W
    Wiring
    Wire Striplength
    7.0 mm
    Ballast Contact Wire Cross Section
    0.70-6.00 mm²
    Connector Type
    Screw
    System characteristics
    Capacitor
    100µF/250V
    Rated Ballast-Lamp Power
    1000 W
    Recommended Ignitor
    Series ignitor - SN 56 (913619669966) / SN 59 (913619659966)
    Temperature
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Winding (Max)
    130 °C
    Delta-T Normal Conditions
    70 °C
    Approval and Application
    Approval Marks
    CE marking
    ENEC certificate
    Product Data
    Full product code
    871150006236900
    Order product name
    BSN 1000 L78-A2 230/240V 50Hz HP-257
    EAN/UPC - Product
    8711500996640
    Order code
    913700217503
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    1
    Material Nr. (12NC)
    913700217503
    Net Weight (Piece)
    12.700 kg
    Installation Diagrams
    BSN 1000 L78-A2 230/240V 50Hz HP-257
    BSN 1000 L78-A2 230/240V 50Hz HP-257
    BSN-HP L02, L43, L78
    BSN-HP L02, L43, L78
    BSN-HP L02, L43, L78
    BSN-HP L02, L43, L78
