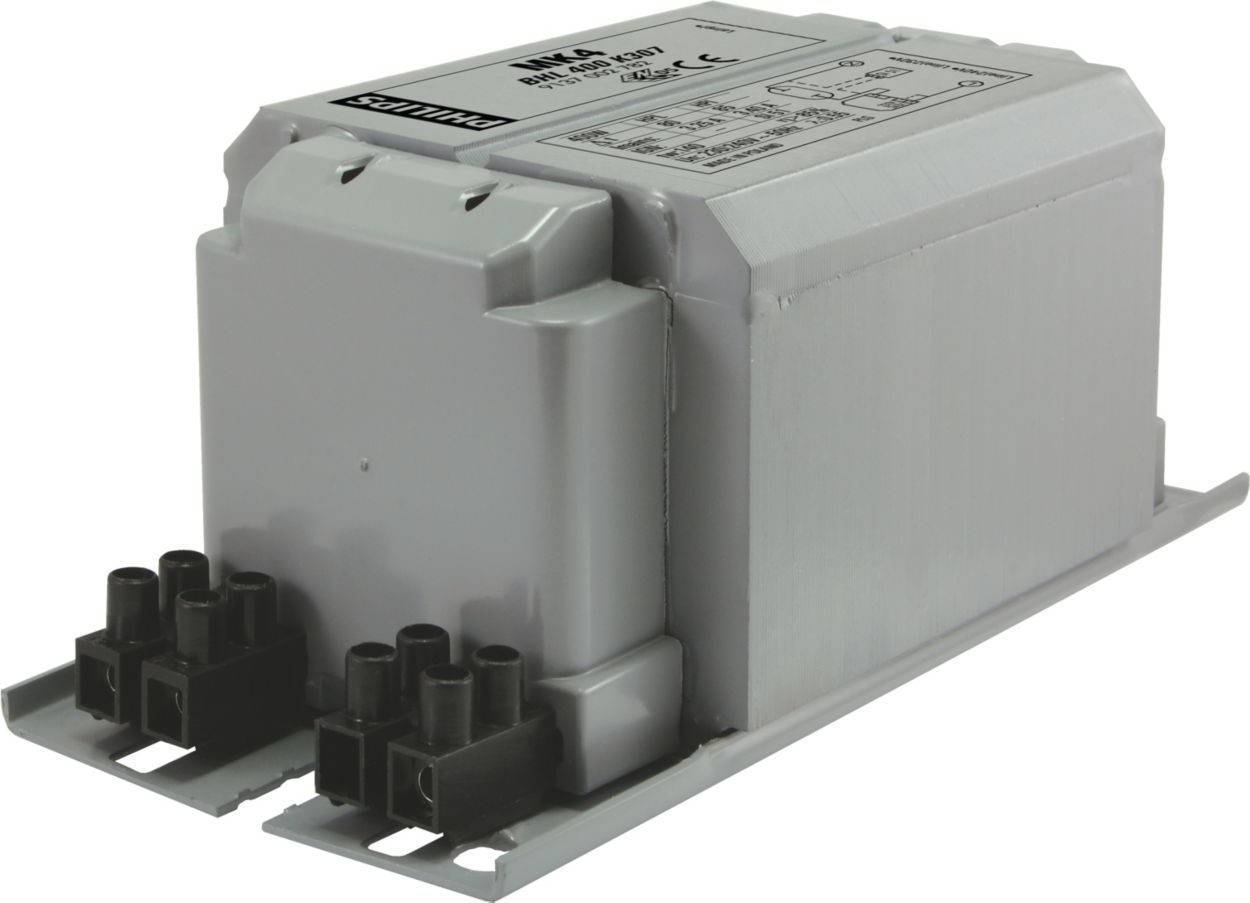

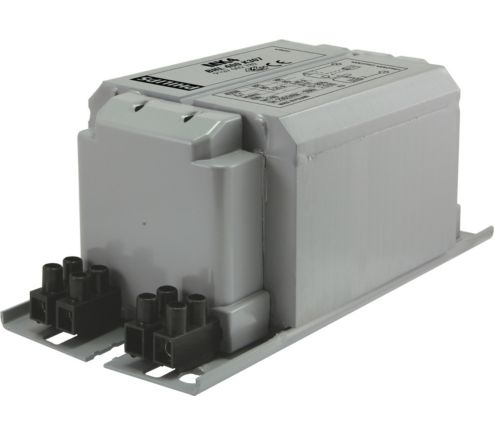

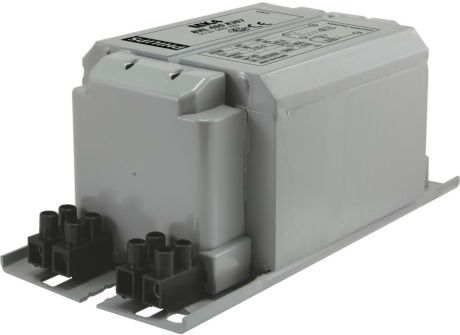

BHL 400 L40-A2 230V 50Hz HD2-151

Specifications Show all

General information

Application Code	L40-A2
Design	HD2-151
Lamp Type	HPL/HPI
Number of Lamps	1 piece/unit

Operating and electrical

Input Voltage	230 V
Input Frequency	50 Hz
Power Factor 100% Load (Nom)	0.87
Mains Voltage Performance (AC)	-8%-+6%
Mains Voltage Safety (AC)	-10%-+10%
Input Current with PF Correction	2.15 A
Input Current without PF Correction	3.25 A
Power Factor without PF Compensation (Nom)	0.55
Power Losses (Nom)	22.0 W

Wiring

Wire Striplength	7.0 mm
Ballast Contact Wire Cross Section	0.70-6.00 mm²
Connector Type	Screw

System characteristics

Capacitor	25µF/28µF/250V (230V/240V)
Rated Ballast-Lamp Power	400 W
Recommended Ignitor	no ignitor for HPL-N for HPI-T ignitor SI51 (913619519966)

Temperature

T-Storage (Max)	130 °C
T-Storage (Min)	-30 °C
T-Winding (Max)	130 °C
Delta-T Normal Conditions	80 °C

Approval and application

Approval Marks

CE marking

ENEC certificate

Product data

Full product code	871150091953330
Order product name	BHL 400 L40-A2 230V 50Hz HD2-151
EAN/UPC - Product	8711500919533
Order code	913604920426
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	6
Material Nr. (12NC)	913604920426
Net Weight (Piece)	2.750 kg
