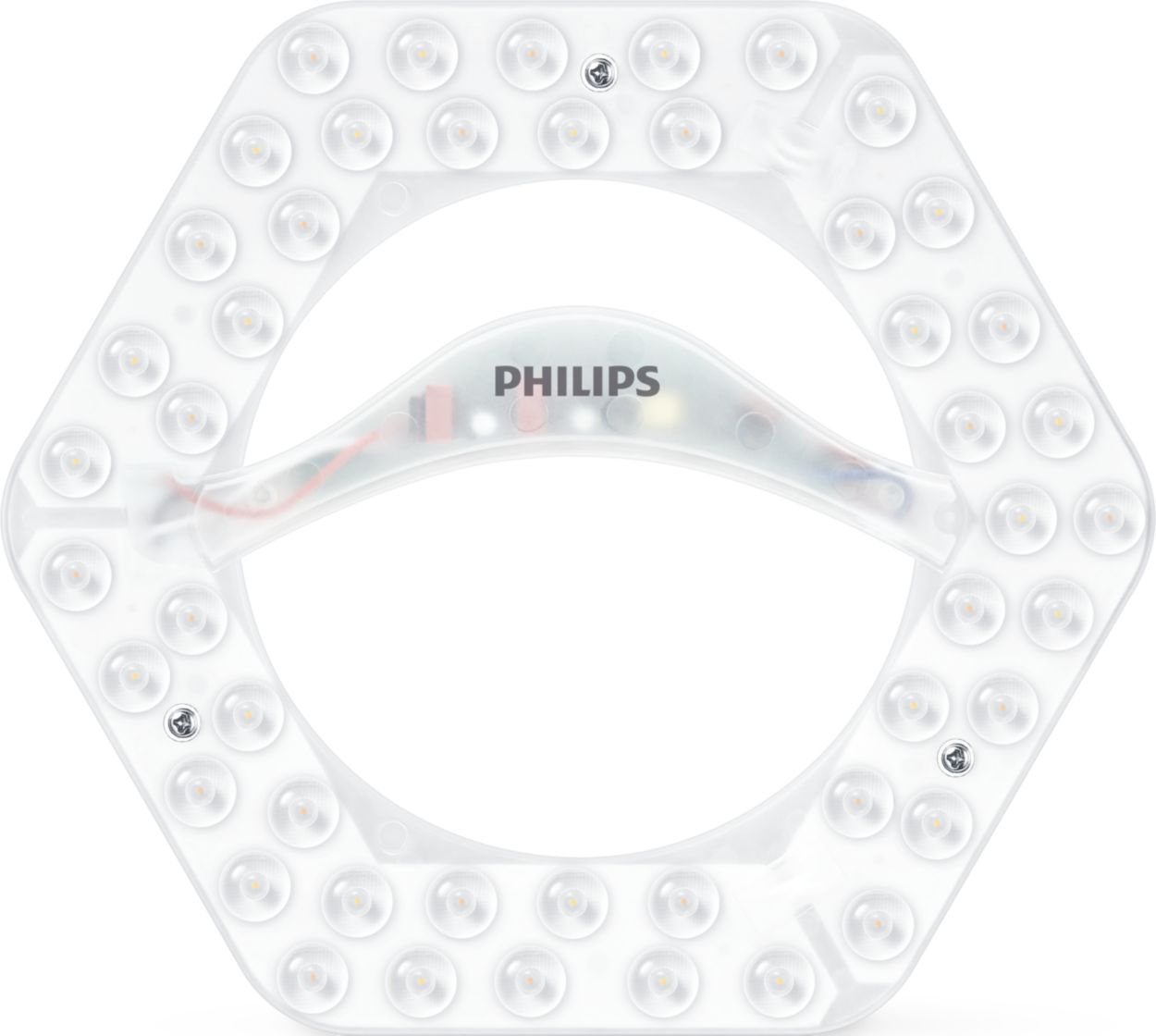

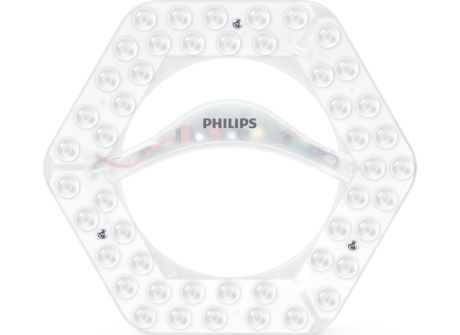

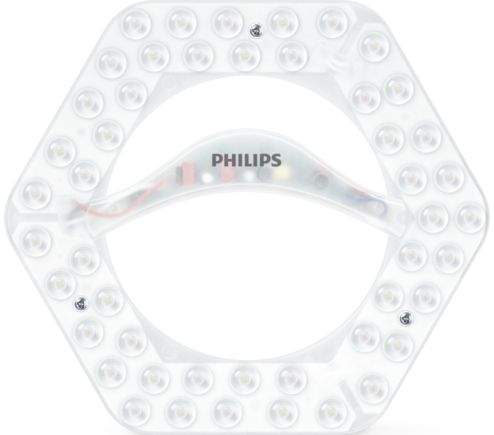

LED MOD 20W SSW

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Power Consumption	20 W
Warm-up time to 60% light	instant full light s
Voltage (Nom)	220-240 V
Starting Time (Nom)	0.5 s
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.5

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance

Product Data

EAN/UPC - Case	6922341981586
Numerator - Quantity Per Pack	1
Full product name	LED MOD 20W SSW
Full product code	692234198157900
Order code	929003620909
Material number (12NC)	929003620909
Numerator - Packs per outer box	40
Order product name	LED MOD 20W SSW

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Others
Bulb Material	Plastic
Product Length	200 mm
Bulb Finish	Frosted

General Information

Switching Cycle	15,000
Rated Lifetime (Hours)	20,000 hour(s)
Cap-Base	-  [-]
Nominal lifetime	20,000 hour(s)
Lighting Technology	LED

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	75 °C

Light Technical

Luminous Flux	2,200 lumen
Correlated Color Temperature (Nom)	3000 K	4000 K	6500 K
Color Designation	3000/4000/6500
Color Code	3000/4000/6500
Color rendering index (CRI)	80
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	110 lm/W
Color Code	3000/4000/6500
LLMF At End Of Nominal Lifetime (Nom)	70 %
Beam Angle (Nom)	120 degree(s)
