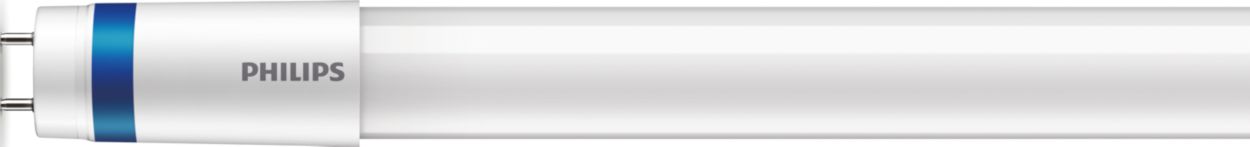

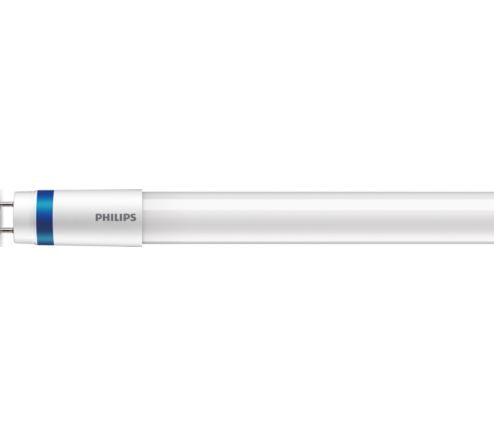

Master LEDTube 1200mm 15.5W 850 T8 W JP

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Power Consumption	15.5 W
Warm-up time to 60% light	0.5 s
Voltage (Nom)	100-242 V
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Product Data

EAN/UPC - Case	8719514421899
Numerator - Quantity Per Pack	1
Full product code	871951442188200
Order product name	Master LEDTube 1200mm 15.5W 850 T8 W JP
Order code	929002022748
Full product name	Master LEDTube 1200mm 15.5W 850 T8 W JP
Numerator - Packs per outer box	20
Material number (12NC)	929002022748

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance	KEMA Keur certificate

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Product Length	1,200 mm
Bulb Material	Plastic

General Information

Lighting Technology	LED
Switching Cycle	200,000
Nominal lifetime	50,000 hour(s)
Cap-Base	G13  [Medium Bi-Pin Fluorescent]

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	55 °C

Light Technical

Luminous Flux	2,500 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Daylight
Correlated Color Temperature (Nom)	5000 K
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	161.00 lm/W
Color rendering index (CRI)	83
Beam Angle (Nom)	160 degree(s)
Color Code	850  [CCT of 5000K]
