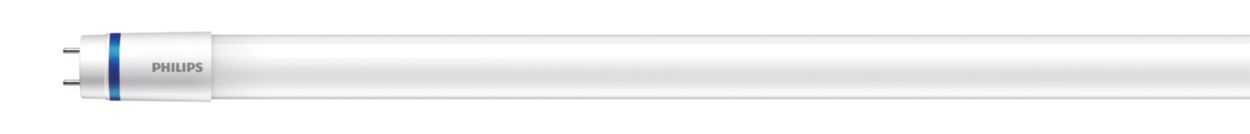

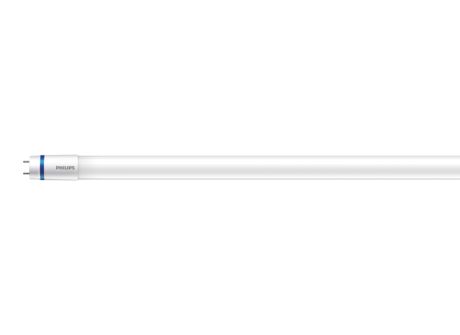

MAS LEDtube 1200mm UO 16W 840 T8 FF RCA

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Input Frequency	50 to 60 Hz
Power Consumption	16 W
Warm-up time to 60% light	0.5 s
Voltage (Nom)	220-240 V
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Product Data

EAN/UPC - Case	8718696818022
Numerator - Quantity Per Pack	1
Order code	929001908008
Full product code	871869681801500
Order product name	MAS LEDtube 1200mm UO 16W 840 T8 FF RCA
Full product name	MAS LEDtube 1200mm UO 16W 840 T8 FF RCA
Material number (12NC)	929001908008
Numerator - Packs per outer box	10

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance	TUV	CE marking	KEMA Keur certificate
Energy Consumption kWh/1000 h	16 kWh

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Tube, double-ended
Product Length	1,200 mm

General Information

Lighting Technology	LED
Switching Cycle	200,000
Cap-Base	G13  [Medium Bi-Pin Fluorescent]
Nominal lifetime	50,000 hour(s)

Temperature

T-Case Maximum (Nom)	55 °C
Ambient temperature range	-20 °C to 45 °C

Light Technical

Luminous Flux	2,500 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	4000 K
Color Designation	Cool White (CW)
Luminous Efficacy (rated) (Nom)	156.00 lm/W
Color Consistency	<6
Color rendering index (CRI)	83
Beam Angle (Nom)	160 degree(s)
Color Code	840  [CCT of 4000K]
