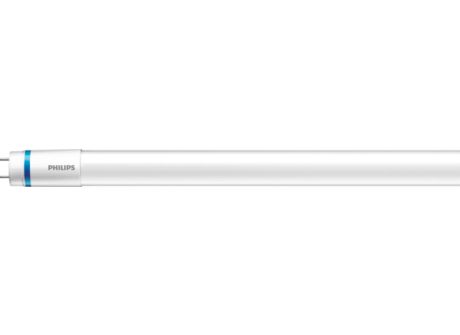

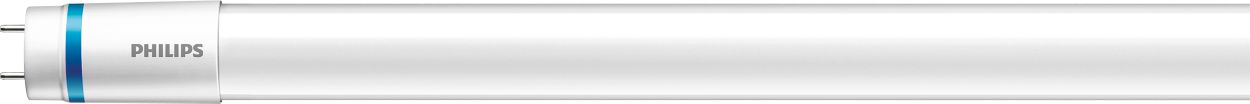

      MASTER LEDtube STD 1200mm 14W840 T8 I W
      LED
      MASTER LEDtube STD 1200mm 14W840 T8 I W
      MASTER LEDtube EM/Mains T8

      MASTER LEDtube STD 1200mm 14W840 T8 I W

      Order code: 929001375442

      Downloads

      Spec Sheet
      Size:405.5 kB

      See all downloads

    Specifications Show all

    General information
    Cap-Base
    G13  [ Medium Bi-Pin Fluorescent]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    50000 h
    Switching Cycle
    200000
    Light technical
    Color Code
    840  [ CCT of 4000K]
    Beam Angle (Nom)
    160 °
    Luminous Flux (Nom)
    2100 lm
    Luminous Flux (Rated) (Nom)
    2100 lm
    Color Designation
    Cool White (CW)
    Correlated Color Temperature (Nom)
    4000 K
    Luminous Efficacy (rated) (Nom)
    150.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Nom)
    14 W
    Lamp Current (Max)
    170 mA
    Lamp Current (Min)
    50 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.92
    Voltage (Nom)
    100-277 V
    Temperature
    T-Ambient (Max)
    45 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    65 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Nom)
    55 °C
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Finish
    Frosted
    Product Length
    1200 mm
    Bulb Shape
    Tube, double-ended
    Approval and application
    Energy Saving Product
    Yes
    Approval Marks
    RoHS compliance
    CE marking
    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    14 kWh
    Product data
    Order product name
    MASTER LEDtube STD 1200mm 14W840 T8 I W
    EAN/UPC - Product
    046677554224
    Order code
    929001375442
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    25
    Material Nr. (12NC)
    929001375442
    Net Weight (Piece)
    0.100 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation diagrams
    LEDtube G13
    LEDtube G13
    G13
    G13
    Performance diagrams
    LEDtube 14W 50K LumenVsTc
    LEDtube 14W 50K LumenVsTc
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    LEDtube 50K FailureRate-LED
    LEDtube 50K FailureRate-LED
    LEDtube 50K LifetimeVsTc-LED
    LEDtube 50K LifetimeVsTc-LED
    Photometrics
    MAS LEDtube STD 14W G13 840 ND
    MAS LEDtube STD 14W G13 840 ND
    LEDtube PLC/T 12W G24Q 840 32V DIM
    LEDtube PLC/T 12W G24Q 840 32V DIM
    LEDtube 14W G13 LDD
    LEDtube 14W G13 LDD
