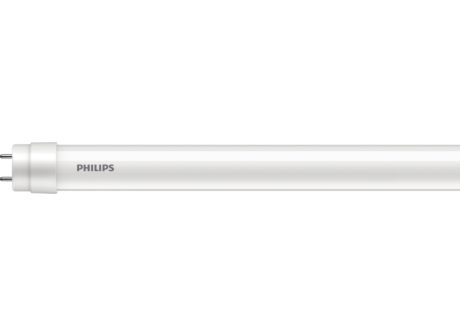

Ledtube DE 1200mm 18W 765 T8 G13 RCA

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Lamp Current (Nom)	155 mA
Warm-up time to 60% light	0.5 s
Power Consumption	18 W
Input Frequency	50 to 60 Hz
Voltage (Nom)	220-240 V
Power Factor (Fraction)	0.5
Starting Time (Nom)	0.5 s

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance	KEMA Keur certificate
Energy Consumption kWh/1000 h	18 kWh

Product Data

EAN/UPC - Case	8719514261075
Numerator - Quantity Per Pack	1
Order product name	Ledtube DE 1200mm 18W 765 T8 G13 RCA
Full product code	871951426106800
Order code	929002375437
Full product name	Ledtube DE 1200mm 18W 765 T8 G13 RCA
Numerator - Packs per outer box	20
Material number (12NC)	929002375437

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Tube, double-ended
Product Length	1,200 mm

General Information

Lighting Technology	LED
Switching Cycle	50,000
Cap-Base	G13  [Medium Bi-Pin Fluorescent]
Nominal lifetime	15,000 hour(s)

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	60 °C

Light Technical

Luminous Flux	1,800 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	6500 K
Color Designation	Cool Daylight
Color Consistency	<7
Luminous Efficacy (rated) (Nom)	100.00 lm/W
Color rendering index (CRI)	70
Color Code	765  [CCT of 6500K]
Beam Angle (Nom)	240 degree(s)
