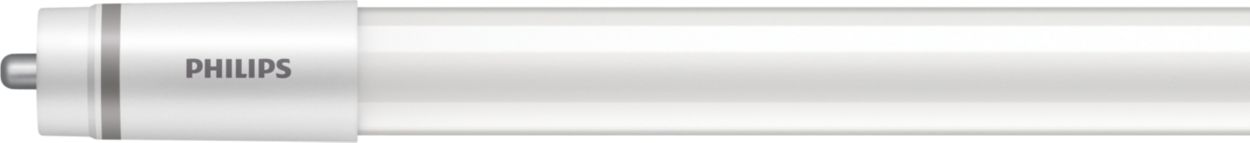

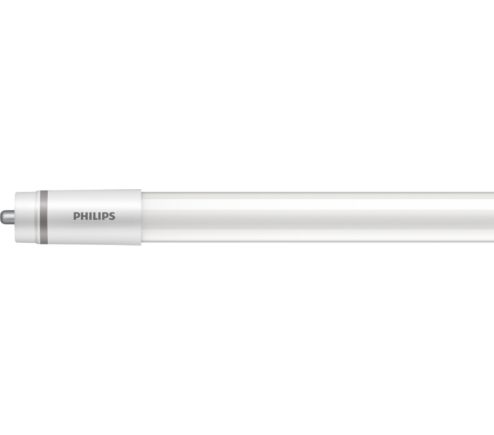

42T8HO/COR/96-850/MF54/G/FA8 10/1

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Warm-up time to 60% light	0.5 s
Power Consumption	42 W
Input Frequency	50 to 60 Hz
Wattage Equivalent	96 W
Voltage (Nom)	120-277 V
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Product Data

EAN/UPC - Case	50046677575149
Numerator - Quantity Per Pack	1
Order code	929003099504
Order product name	42T8HO/COR/96-850/MF54/G/FA8 10/1
Full product name	42T8HO/COR/96-850/MF54/G/FA8 10/1
Numerator - Packs per outer box	10
Material number (12NC)	929003099504

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	RoHS compliance	UL certificate	DLC compliance

Controls and Dimming

Dimmable

Limited

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Product Length	2,400 mm
Bulb Material	Glass

General Information

Lighting Technology	LED
Switching Cycle	50,000
Cap-Base	FA8  [FA8]
Nominal lifetime	50,000 hour(s)

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	55 °C

Light Technical

Luminous Flux	5,400 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	5000 K
Color Designation	Daylight
Color Consistency	<5
Luminous Efficacy (rated) (Nom)	128.00 lm/W
Color rendering index (CRI)	80
Color Code	850  [CCT of 5000K]
Beam Angle (Nom)	240 degree(s)
