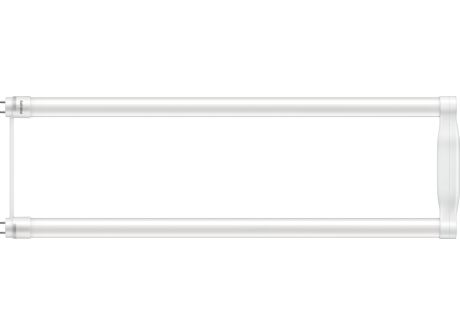

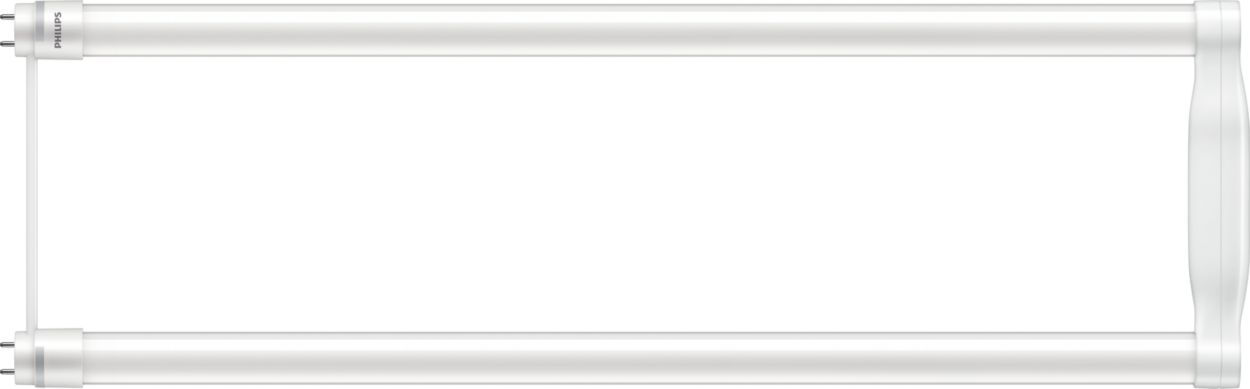

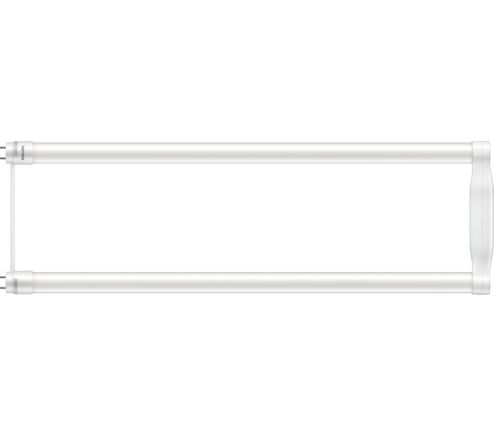

15.5T8-6U/COR/24-830/MF20/G 10/1

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Warm-up time to 60% light	0.9 s
Power Consumption	15.5 W
Input Frequency	50 to 60 Hz
Wattage Equivalent	32 W
Voltage (Nom)	120-277 V
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.9 s

Product Data

EAN/UPC - Case	50046677535532
Numerator - Quantity Per Pack	1
Order code	929001934604
Order product name	15.5T8-6U/COR/24-830/MF20/G 10/1
Full product name	15.5T8-6U/COR/24-830/MF20/G 10/1
Numerator - Packs per outer box	10
Material number (12NC)	929001934604

Approval and Application

EU RoHS compliant	Yes
Energy Certifications	DLC Standard
Energy Saving Product	Yes
Approval Marks	UL certificate	RoHS compliance	DLC compliance
Energy Consumption kWh/1000 h	- kWh

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Product Length	600 mm
Bulb Material	Glass

General Information

Lighting Technology	LED
Switching Cycle	50,000
Cap-Base	2G13  [2G13]
Nominal lifetime	50,000 hour(s)

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	51 °C

Light Technical

Luminous Flux	2,000 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	3000 K
Color Designation	White (WH)
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	129.00 lm/W
Color rendering index (CRI)	82
Color Code	830  [CCT of 3000K]
Beam Angle (Nom)	180 degree(s)
