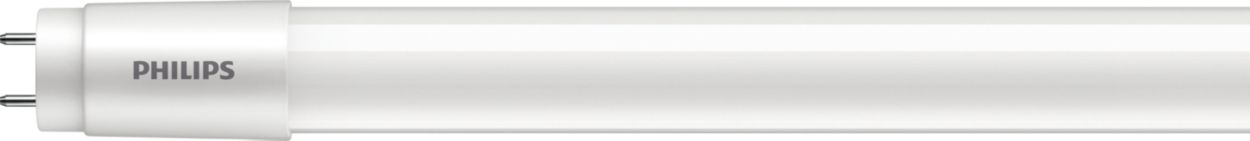

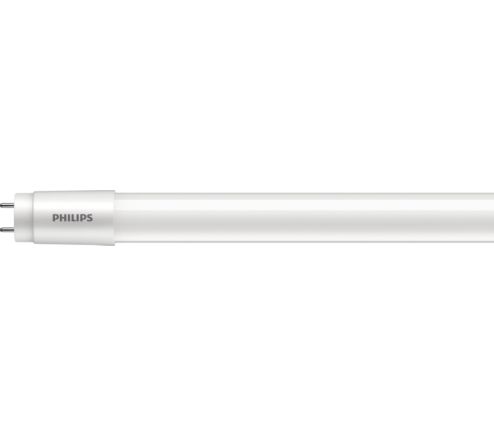

CorePro LEDtube 1200mm 18W 840 T8C W G

Specifications Show all

General information

Cap-Base	G13  [ Medium Bi-Pin Fluorescent]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	25000 h
Switching Cycle	50000

Light technical

Color Code	840  [ CCT of 4000K]
Beam Angle (Nom)	240 °
Luminous Flux (Nom)	1850 lm
Color Designation	Cool White (CW)
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	102.00 lm/W
Color Consistency	<6
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	50 to 60 Hz
Power (Nom)	18 W
Lamp Current (Max)	160 mA
Lamp Current (Min)	95 mA
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.92
Voltage (Nom)	100-240 V

Temperature

T-Ambient (Max)	45 °C
T-Ambient (Min)	-20 °C
T-Storage (Range)	-40 °C to 65 °C
T-Storage (Max)	65 °C
T-Storage (Min)	-40 °C
T-Case Maximum (Nom)	65 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Product Length	1200 mm
Bulb Shape	Tube, double-ended

Approval and application

Energy Saving Product	Yes
Approval Marks	RoHS compliance
Energy Consumption kWh/1000 h	18 kWh

Application conditions

Ambient temperature range

-20 °C to 45 °C

Product data

Full product code	871869963757600
Order product name	CorePro LEDtube 1200mm 18W 840 T8C W G
EAN/UPC - Product	8718699637576
Order code	929001999872
Numerator - Quantity Per Pack	1
Local code description	Lâmpada Led Tubular CPLTUBET8-18W1850MVN
Numerator - Packs per outer box	25
Material Nr. (12NC)	929001999872
Net Weight (Piece)	0.225 kg
