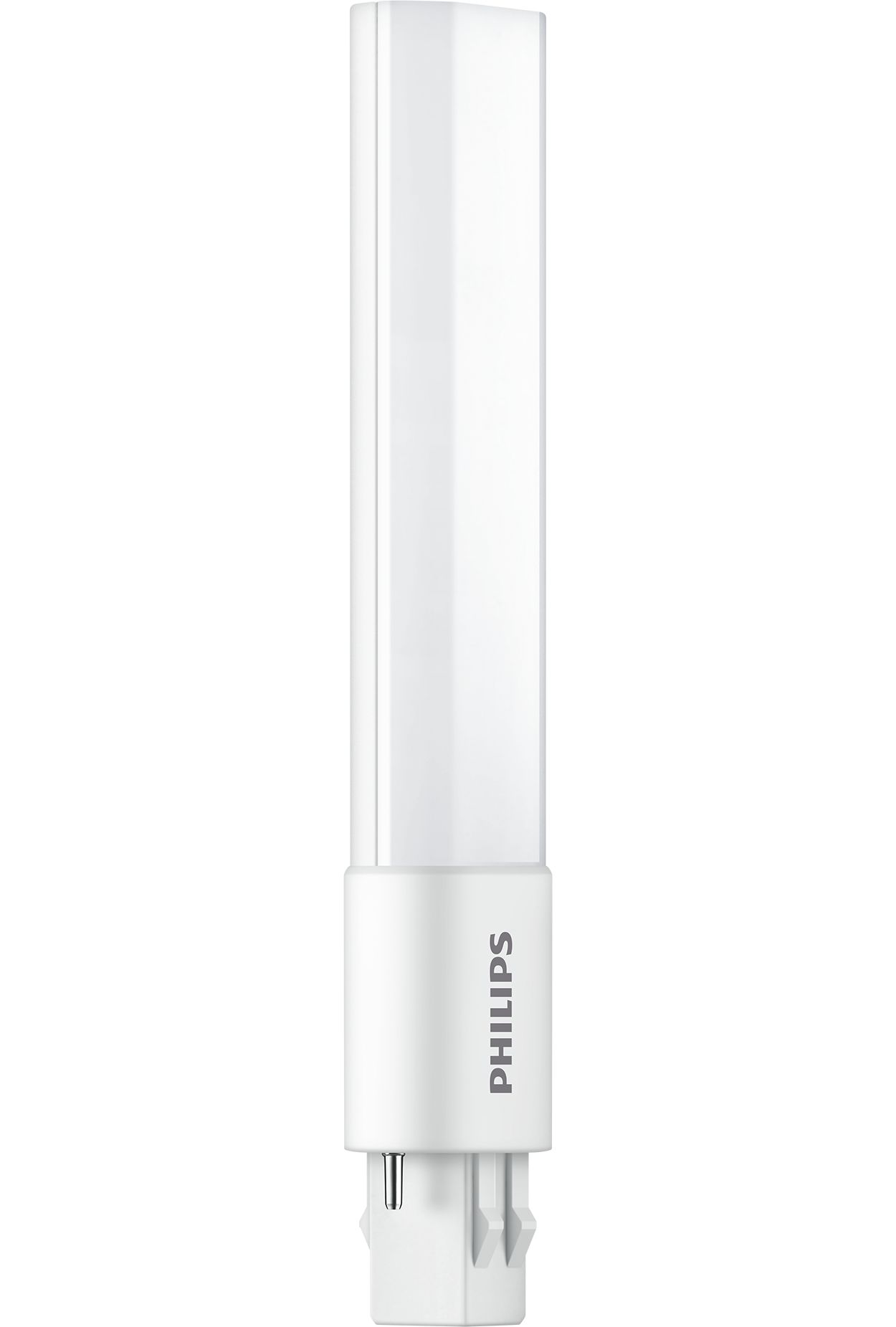

5PL-S/LED/13H/835/IF5/P/2P 20/1

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Input Frequency	50 to 60 Hz
Warm-up time to 60% light	0.5 s
Wattage Equivalent	13 W
Voltage (Nom)	120-277 V
Power Consumption	5 W
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Product Data

EAN/UPC - Case	50046677529579
Numerator - Quantity Per Pack	1
Order product name	5PL-S/LED/13H/835/IF5/P/2P 20/1
Order code	929001863004
Full product name	5PL-S/LED/13H/835/IF5/P/2P 20/1
Numerator - Packs per outer box	20
Material number (12NC)	929001863004

Approval and Application

EU RoHS compliant	Yes
Energy Saving Product	Yes
Approval Marks	UL certificate	RoHS compliance
Energy Consumption kWh/1000 h	- kWh

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	Tube, single-ended
Product Length	170 mm
Bulb Material	Plastic

General Information

Lighting Technology	LED
Switching Cycle	50,000
Cap-Base	GX23  [GX23]
Nominal lifetime	50,000 hour(s)

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	75 °C

Light Technical

Luminous Flux	560 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	3500 K
Color Designation	White (WH)
Luminous Efficacy (rated) (Nom)	112.00 lm/W
Color rendering index (CRI)	82
Color Code	835  [CCT of 3500K]
Beam Angle (Nom)	120 degree(s)
Color Consistency	<6
