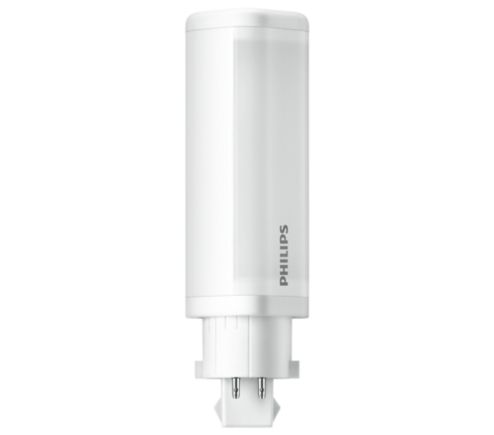

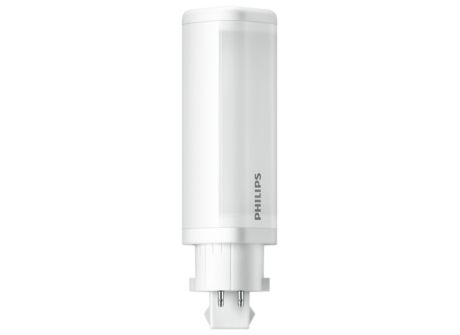

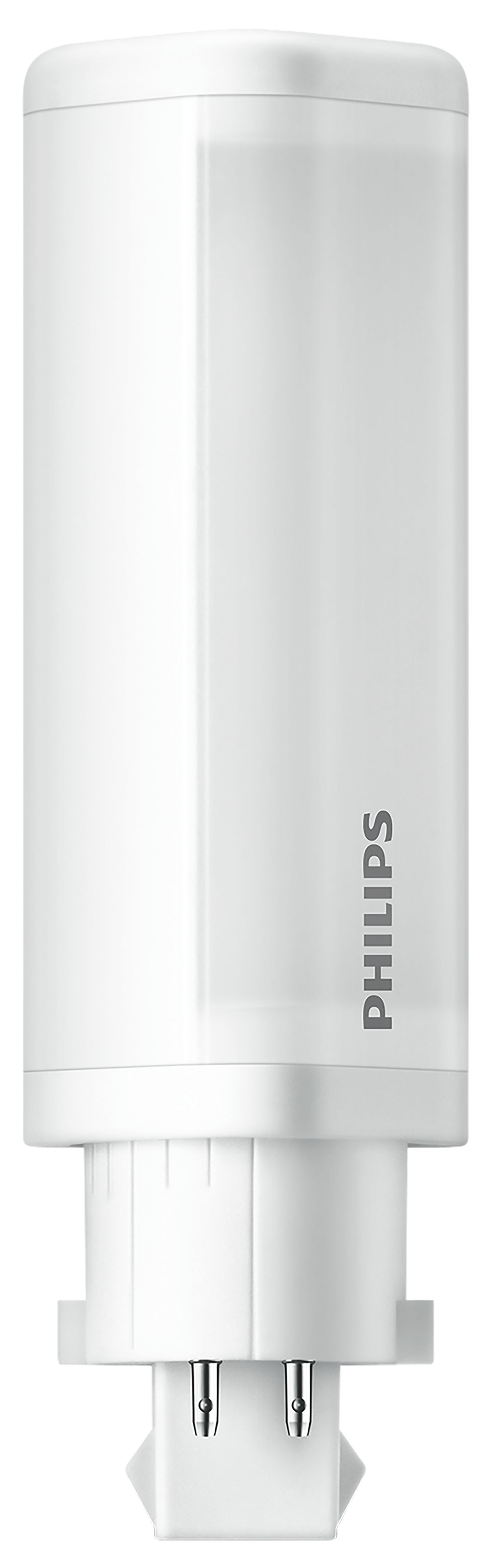

CorePro LED PLC 4.5W 840 4P G24q-1

Specifications Show all

Operating and Electrical

Line Frequency	30000-80000 Hz
Input Frequency	30000-80000 Hz
Power Consumption	4.5 W
Warm-up time to 60% light	0.5 s
Voltage (Nom)	20-50 V
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s

Product Data

EAN/UPC - Case	8718696706664
Numerator - Quantity Per Pack	1
Full product code	871869670665700
Order product name	CorePro LED PLC 4.5W 840 4P G24q-1
Order code	929001351102
Full product name	CorePro LED PLC 4.5W 840 4P G24q-1
Material number (12NC)	929001351102
Numerator - Packs per outer box	10

Approval and Application

EU RoHS compliant	Yes
Energy Efficiency Class	F
Energy Saving Product	Yes
Approval Marks	TUV	CE marking	RoHS compliance	KEMA Keur certificate
CE mark	Yes
EPREL Registration Number	403563
Energy Consumption kWh/1000 h	5 kWh

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	Tube, single-ended
Product Length	100 mm

General Information

Lighting Technology	LED
Switching Cycle	50,000
Cap-Base	G24Q-1  [G24q-1]
Nominal lifetime	30,000 hour(s)
Flux measurement reference	Sphere

Temperature

T-Case Maximum (Nom)	60 °C
Ambient temperature range	-20 °C to 35 °C

Light Technical

Luminous Flux	500 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Cool White (CW)
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	111.11 lm/W
Color Consistency	<6
Color rendering index (CRI)	83
Beam Angle (Nom)	120 degree(s)
Color Code	840  [CCT of 4000K]
