| Energy Efficiency Class | D
|
||||
| Approval Marks | CE marking
|
ENEC certificate
|
UL certificate
|
REACH compliance
|
RoHS compliance
|
| EPREL Registration Number | 760,393
|
| EAN/UPC - Case | 8718699707804
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871869970779800
|

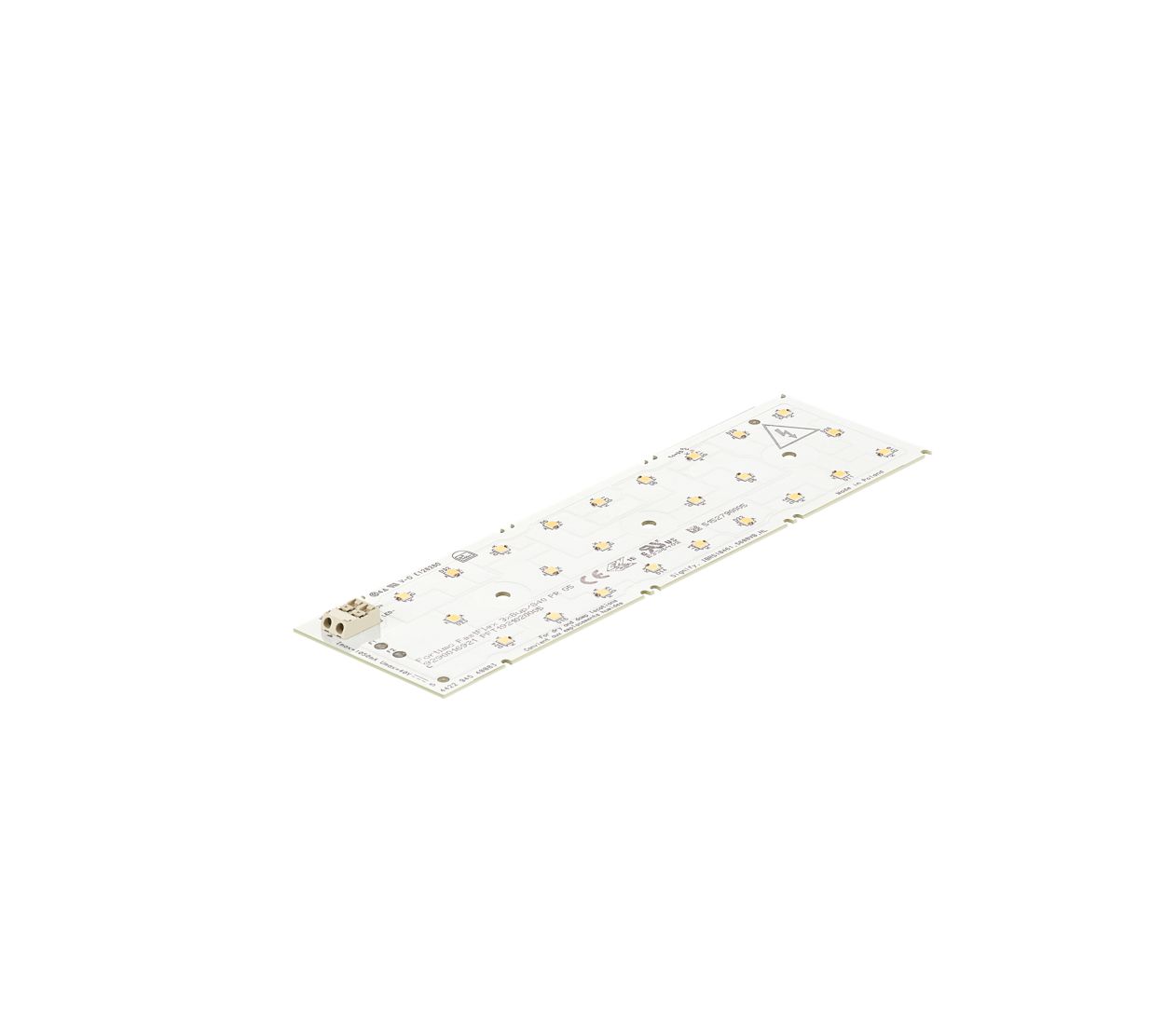

| Order product name | Fortimo FastFlex 3x8up/830 PR G5
|
| Order code | 929001692006
|
| Full product name | Fortimo FastFlex 3x8up/830 PR G5
|
| Numerator - Packs per outer box | 24
|
| Material number (12NC) | 929001692006
|
| Lighting Technology | LED
|
| Remarks | Please download the Lighting - Product Data Sheet for more information and ordering options
|
| Overall height | 5.33
mm
|
| Overall length | 172.2
mm
|
| Overall width | 49.5
mm
|
| Dimensions (Height x Width x Depth) | 5 x 50 x 172 mm
|
| T-Case Maximum (Max) | 95
°C
|
| T-Case Lifetime (Max) | 95
°C
|
| Luminous Flux | 2,800
lumen
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Color Consistency Initial | 5
|
| Luminous Efficacy (rated) (Nom) | 160
lm/W
|
| Color rendering index (CRI) | 80
|
