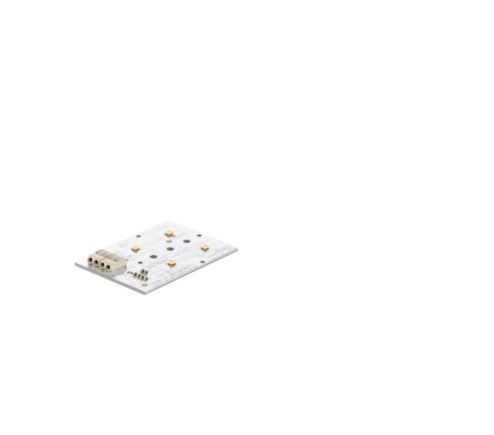

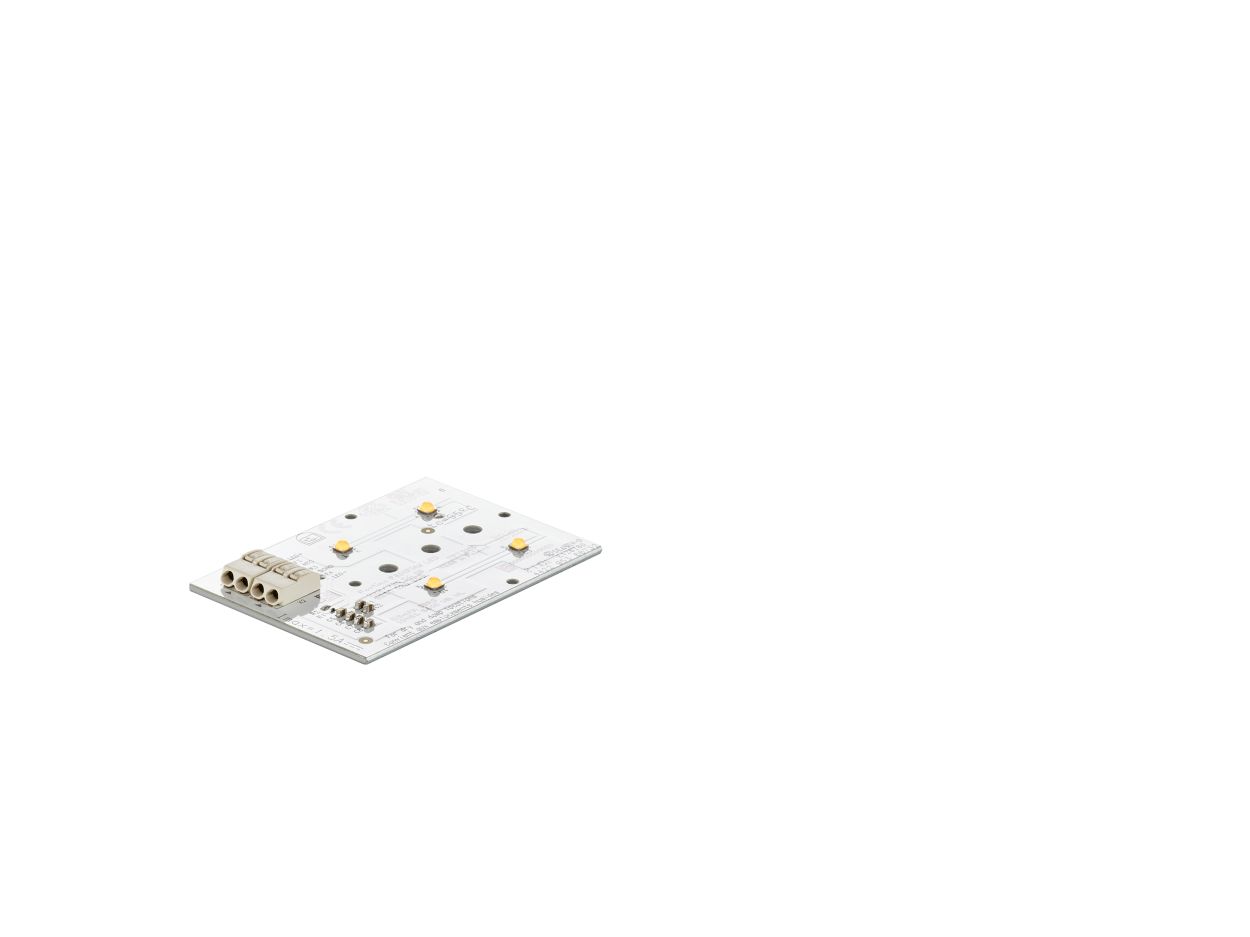

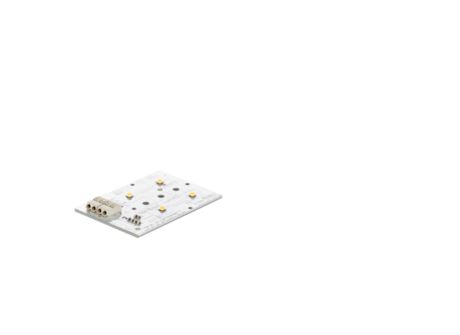

      Fortimo FastFlex LED 2x2/840 DA G5
      LED
      For more information,download product fiche
      Fortimo FastFlex LED 2x2/840 DA G5
      Fortimo FastFlex gen 4+

      Fortimo FastFlex LED 2x2/840 DA G5

      Downloads

      Spec Sheet
      Size:298.0 kB

      See all downloads

    Specifications Show all

    Approval and Application
    Energy Efficiency Class
    D
    Approval Marks
    CE marking
    ENEC certificate
    UL certificate
    REACH compliance
    RoHS compliance
    Zhaga compliant
    EPREL Registration Number
    1,008,255
    Product Data
    EAN/UPC - Case
    8719514318113
    Numerator - Quantity Per Pack
    1
    Order product name
    Fortimo FastFlex LED 2x2/840 DA G5
    Order code
    929002866106
    Full product code
    871951431810600
    Full product name
    Fortimo FastFlex LED 2x2/840 DA G5
    Material number (12NC)
    929002866106
    Numerator - Packs per outer box
    25
    General Information
    Lighting Technology
    LED
    Remarks
    Please download the Lighting - Product Data Sheet for more information and ordering options
    Mechanical and Housing
    Overall height
    6.1 mm
    Overall length
    70.6 mm
    Overall width
    49.5 mm
    Dimensions (Height x Width x Depth)
    6 x 50 x 71 mm
    Temperature
    T-Case Maximum (Max)
    95 °C
    T-Case Lifetime (Max)
    85 °C
    Light Technical
    Luminous Flux
    895 lumen
    Correlated Color Temperature (Nom)
    4000 K
    Luminous Efficacy (rated) (Nom)
    151 lm/W
    Color Consistency Initial
    5
    Color rendering index (CRI)
    80
