| Protection class IEC | Safety class I/II
|
| Constant light output | Yes
|
| Nominal Lifetime (Nom) | 100000
h
|
| Output Current Ripple (Max) | 4
%
|
| Maximum Efficiency at Full Load | 91
%
|
| Output Current (Max) | 1050
mA
|
| Open Circuit Voltage (DC) (Max) | 170
V
|
| Inrush Current Peak (Max) | 49
A
|
| Output Power (Max) | 75
W
|
| Inrush Current Width to 50% of Peak | 290
µs
|
| Diagnostics | True
|
| Output Power (Min) | 7.5
W
|
| Output Current (Min) | 74
mA
|
| Output Voltage (Max) | 108
V
|
| Output Voltage (Min) | 35
V
|
| Central DC Operation | No
|
| YellowDot ready | No
|
| T-Case Lifetime (Max) | 80
°C
|
| T-Case Maximum (Max) | 90
°C
|
| Dimmable | Yes
|
| Dimming Range | 100-10
%
|
| D4i compliant | Yes
|
| DynaDimmer | Yes
|
| Product Length | 170
mm
|
| Housing | C170_SR
|
| Overall length | 171
mm
|
| Overall width | 100
mm
|
| Overall height | 41
mm
|
| Surge Protection (Common/Differential) | Surge protection level until 10
kV
|
|||
| IP Classification | IP20
[ Finger-protected] |
|||
| Isolation Classification | Class I and Class II
|
|||
| Approval Marks | CCC certificate
|
CE marking
|
CB compliance
|
ENEC certificate
|
| Output Current Set Options | SimpleSet, DALI
|
| Full product code | 871951427852300
|

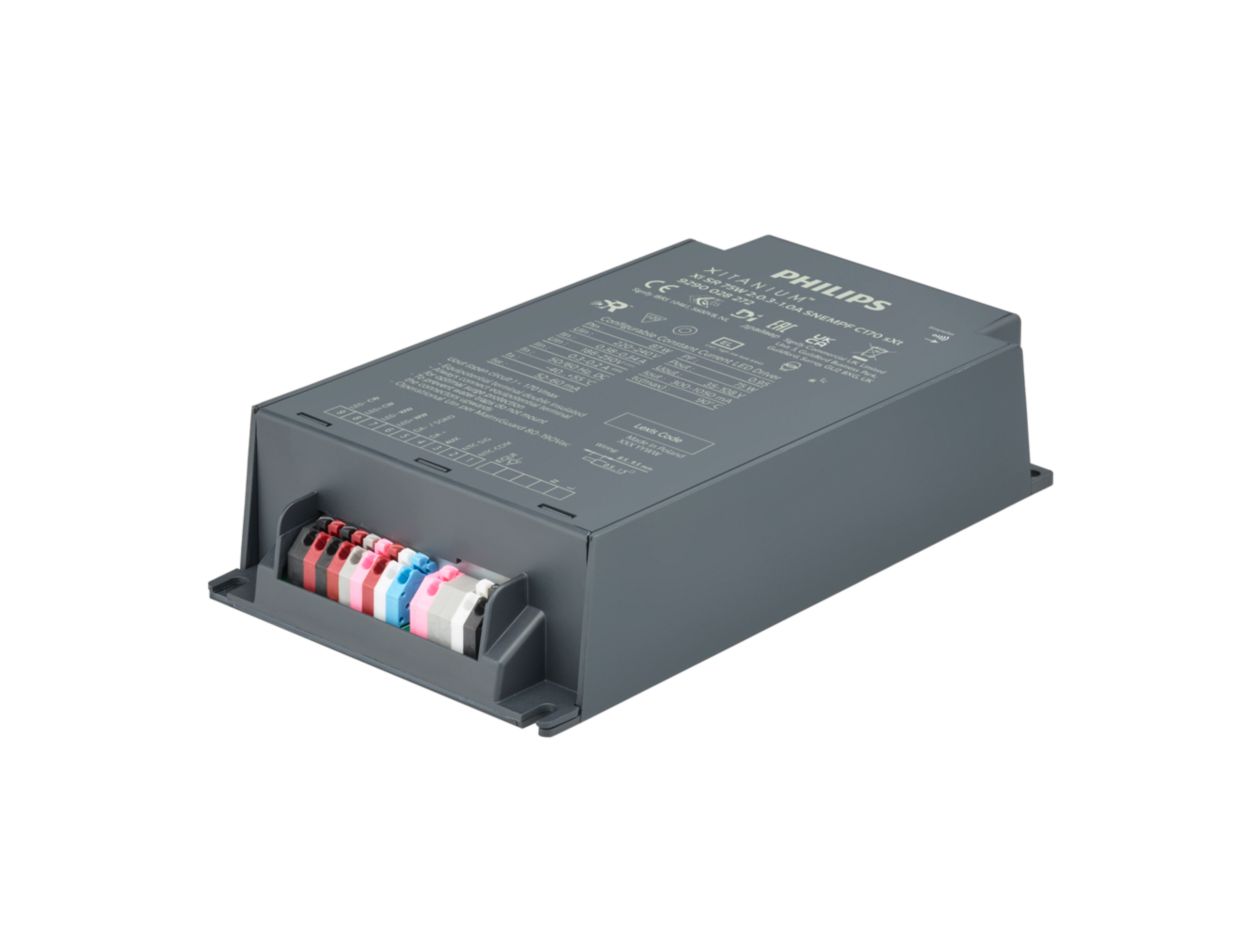

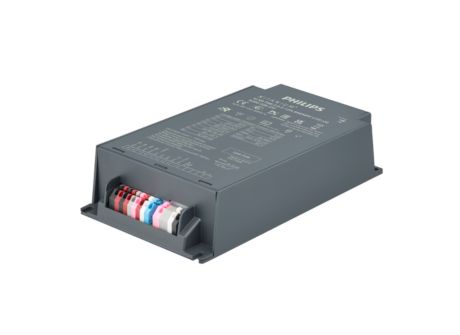

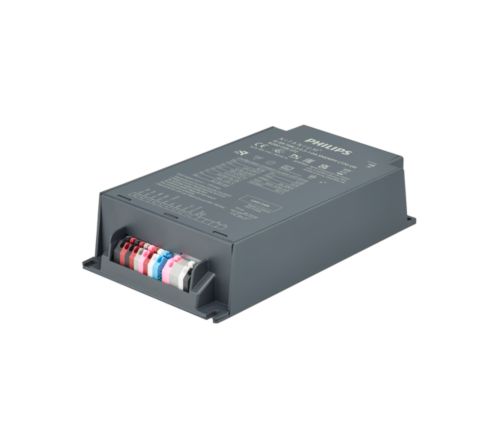

| Order product name | Xitanium SR 75W 2:0.3-1.0A SNEMPF C170 sXt
|
| EAN/UPC - Product | 8719514278523
|
| Order code | 929002827206
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 9
|
| Material Nr. (12NC) | 929002827206
|
