| Output Current Tolerance (Max) | 3
%
|
| Output Power (Max) | 165
W
|
| Mains voltage performance (DC) | 186-250
V
|
| Output Voltage (Max) | 235
V
|
| Input Current (Nom) | 800
mA
|
| Total Harmonic Distortion IEC (Max) | 6
%
|
| Output Current Ripple (Max) | 4
%
|
| Number of Products on MCB (16A Type B) (Max) | 7
|
| Earth Leakage Current (Max) | 0.29
mA
|
| Constant Voltage (CV) | False
|
| Line Frequency | 50 to 60
Hz
|
| Input Frequency | 50 to 60
Hz
|
| Output Voltage (Min) | 80
V
|
| Diagnostics | True
|
| Mains voltage operation (DC) | 168-275
V
|
| Output Current (Min) | 70
mA
|
| Output Power (Nom) | 85.3
W
|
| Inrush Current Width to 50% of Peak | 340
µs
|
| Constant Current (CC) | True
|
| Power Consumption | 165
W
|
| Output Current (Nom) | 560
mA
|
| Maximum Efficiency at Full Load | 93
%
|
| Default output current | 70-1050
mA
|
| Output Current (Max) | 1050
mA
|
| Inrush Current Peak (Max) | 58
A
|
| Surge Protection (Common/Differential) | EN61547 (L-L 6kV, L-G 8kV)
kV
|
||
| Ingress protection code | IP20
[Finger-protected] |
||
| Isolation Classification | Class I and Class II
|
||
| Over Power Protection | Protected
|
||
| Approval Marks | CB compliance
|
CE marking
|
ENEC certificate
|
| Output Current Set Options | Programmable and SimpleSet
|
||
| Short Circuit Protection | Protected
|
||
| Relative Humidity (Operation) (Max) | 90
%
|
||
| Open Circuit Protection | Protected
|
| EAN/UPC - Case | 8718696565773
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871869656576600
|
| Order code | 929000976306
|

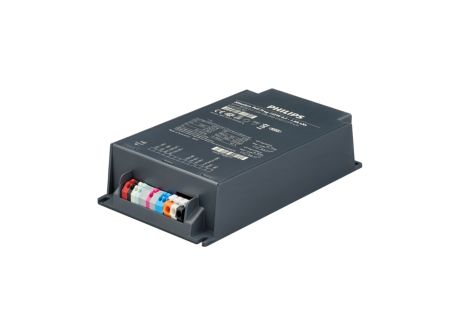

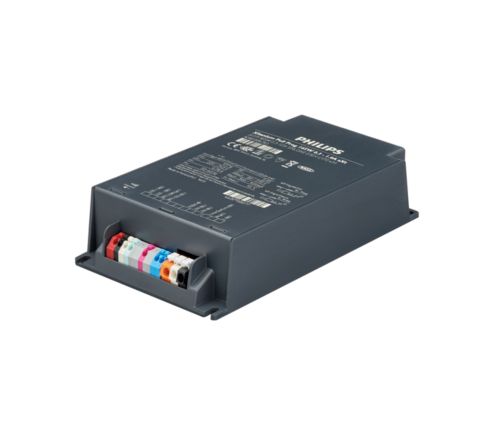

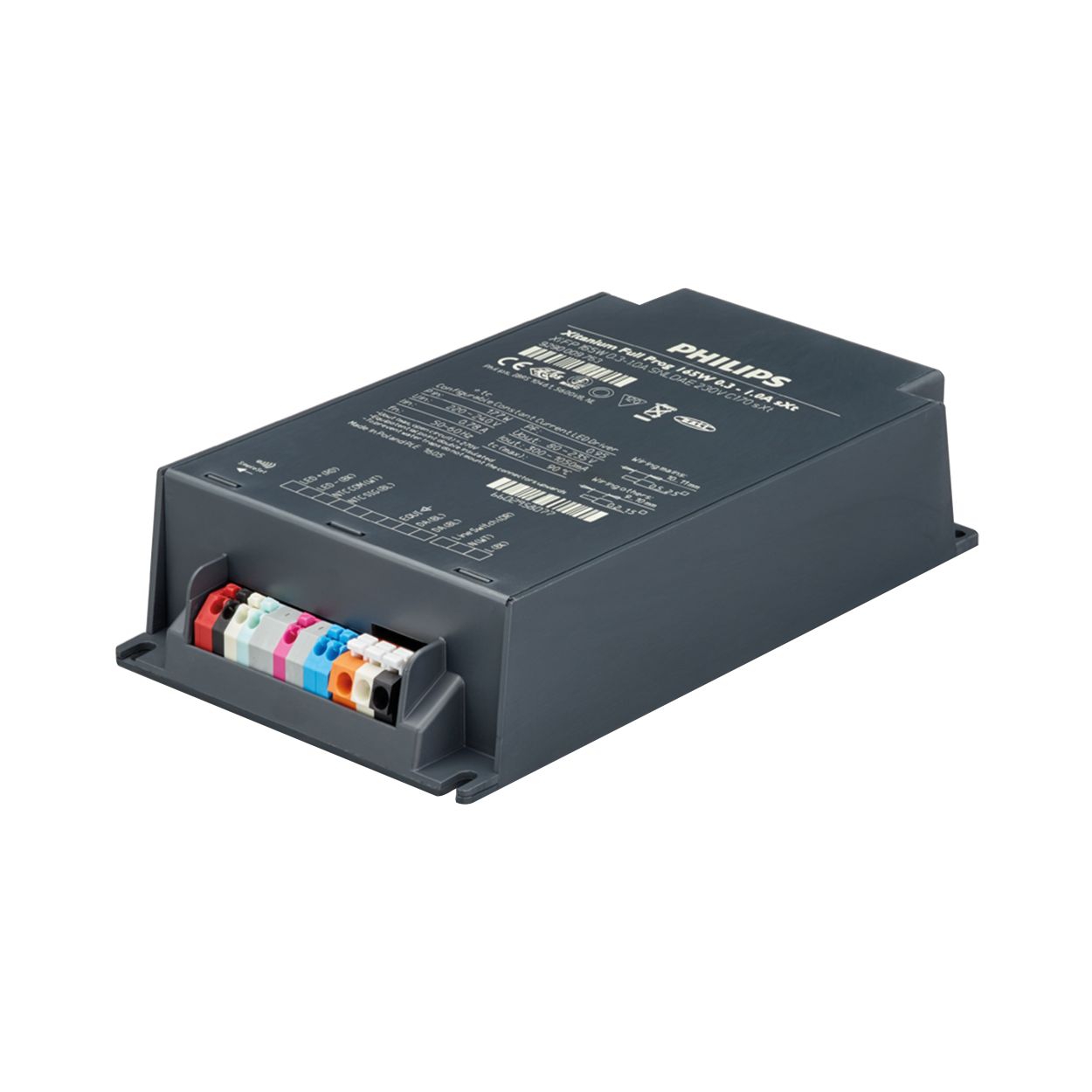

| Order product name | Xi FP 165W 0.3-1.0A SNLDAE 230V C170 sXt
|
| Full product name | Xi FP 165W 0.3-1.0A SNLDAE 230V C170 sXt
|
| Numerator - Packs per outer box | 9
|
| Material number (12NC) | 929000976306
|
| Dimming Range | 100-10
%
|
| Control Interface | Dynadimmer,DALI, AmpDimer, LineSwitch
|
| Dimmable | Yes
|
| Housing | C170_FP
|
| Lighting Technology | LED
|
| Output Wire Cross Section (Min) | 0.3
mm²
|
| Input Wire Cross Section (Min) | 0.5
mm²
|
| Cable Length From Device to Lamp | 2.5
m
|
| Output wire strip length | 9 mm to 10 mm
mm
|
| Input Wire Cross Section (Max) | 2.5
mm²
|
| Connector Type Output Terminals | Wago 805
|
| Connector Type Input Terminals | Wago 804
|
| Output Wire Cross Section (Max) | 1.5
mm²
|
| Hot Wiring | No
|
| Input wire strip length | 10 mm to 11 mm
mm
|
| Maximum case temperature (in case of failure) | 120
°C
|
| T-Case Maximum (Max) | 90
°C
|
| Ambient temperature range | -30 °C to 55 °C
|
| T-Case Lifetime (Nom) | 80
°C
|
