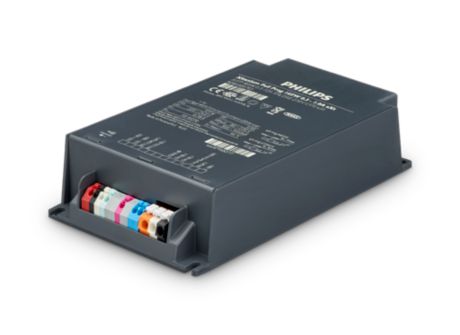

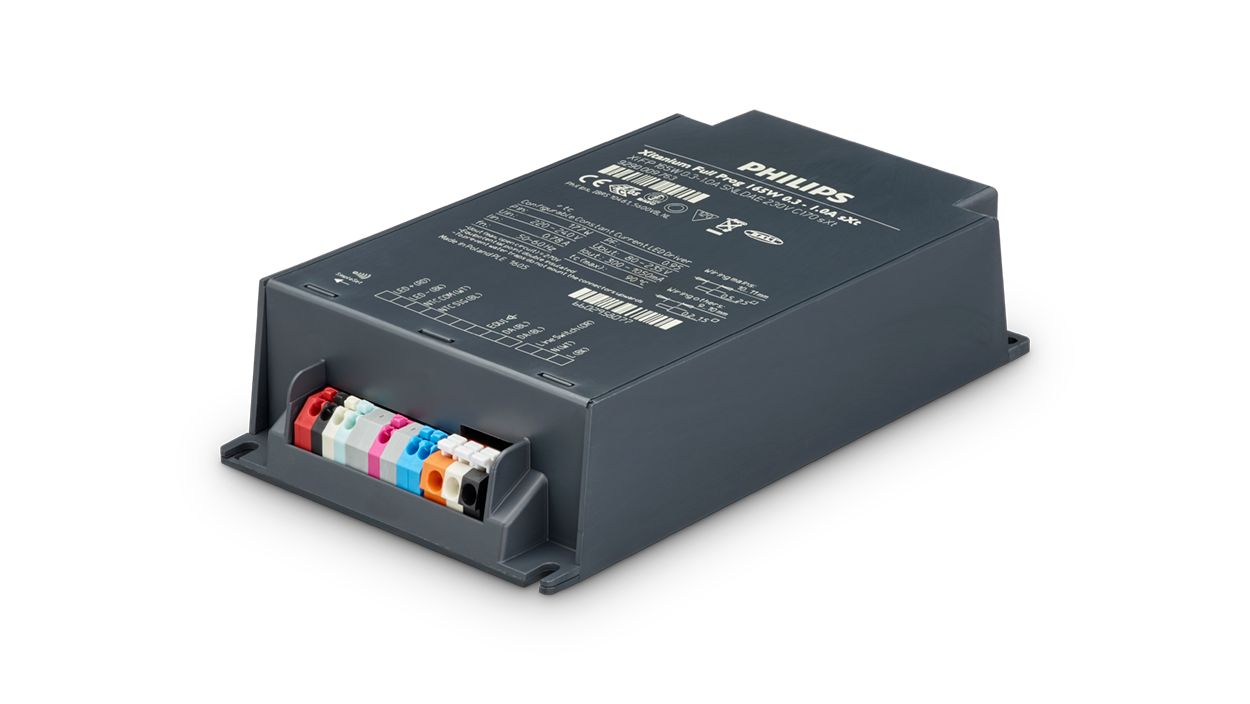

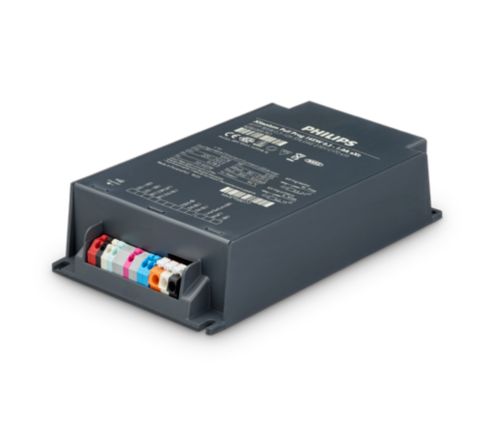

Xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt

Specifications Show all

Operating and Electrical

Mains voltage performance (DC)	186-250 V
Output Power (Max)	165 W
Output Current Tolerance (Max)	3 %
Output Current Ripple (Max)	4 %
Total Harmonic Distortion IEC (Max)	6 %
Input Current (Nom)	790 mA
Output Voltage (Max)	300 V
Number of Products on MCB (16A Type B) (Max)	7
Earth Leakage Current (Max)	0.29 mA
Constant Voltage (CV)	False
Line Frequency	50 to 60 Hz
Open Circuit Voltage (DC) (Max)	330 V
Power Consumption	165 W
Output Voltage (Min)	100 V
Diagnostics	True
Mains voltage operation (DC)	168-275 V
Output Current (Min)	70 mA
Output Power (Nom)	85.15 W
Inrush Current Width to 50% of Peak	340 µs
Input Frequency	50 to 60 Hz
Output Current (Nom)	376.5 mA
Maximum Efficiency at Full Load	93 %
Constant Current (CC)	True
Default output current	70-700 mA
Output Current (Max)	700 mA
Inrush Current Peak (Max)	58 A

Approval and Application

Surge Protection (Common/Differential)	EN61547 (L-L 6kV, L-G 8kV) kV
Ingress protection code	IP20  [Finger-protected]
Approval Marks	CB compliance	CE marking	ENEC certificate
Over Power Protection	Protected
Isolation Classification	Class I and Class II
Output Current Set Options	Programmable and SimpleSet
Short Circuit Protection	Protected
Relative Humidity (Operation) (Max)	90 %
Open Circuit Protection	Protected

Product Data

EAN/UPC - Case	8718696565759
Numerator - Quantity Per Pack	1
Order code	929000976206
Full product name	Xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt
Full product code	871869656574200
Order product name	Xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt
Numerator - Packs per outer box	9
Material number (12NC)	929000976206

Controls and Dimming

Dimming Range	100-10 %
Control Interface	Dynadimmer,DALI, AmpDimer, LineSwitch
Dimmable	Yes

Mechanical and Housing

Housing

C170_FP

General Information

Lighting Technology

LED

Wiring

Output Wire Cross Section (Min)	0.3 mm²
Input Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	2.5 m
Connector Type Input Terminals	Wago 804
Input Wire Cross Section (Max)	2.5 mm²
Connector Type Output Terminals	Wago 805
Output Wire Cross Section (Max)	1.5 mm²
Output wire strip length	9 mm to 10 mm mm
Input wire strip length	10 mm to 11 mm mm
Hot Wiring	No

Temperature

Maximum case temperature (in case of failure)	120 °C
T-Case Maximum (Max)	90 °C
Ambient temperature range	-30 °C to 55 °C
T-Case Lifetime (Nom)	80 °C
